6-16m Platform Height Manual Pushing Mobile Scissor Lift with Ce

Product Description

6-16m Platform Height Mobile Scissor Lift with CE
Product Description

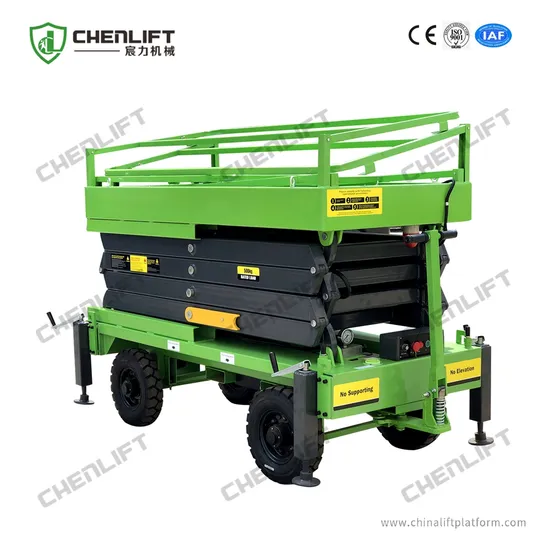

Manual Pushing Scissor Lift is a scissor structure man lift for aerial work which can be towed by man power.
It is for one or two persons aerial working purpose.
The maximum platform height is 3m,6m,7.5m,9m,11m,12m,14m,16m.
And the maximum loading capacity is 300Kg, 500Kg, 1000Kg.
The mechanical structure make the platform stability, wide operating and high loading capacity.
Normal scissor lift lifting power is AC power, DC and both AC&DC power are also available for option.
Scissor lift platform is easily operated by the control box both on the platform and ground. The supporting legs can guarantee the stability of the lift. More safety for workers working on the platform with the guardrail. Besides the AC power, you also can add motorized device for assist walking.
Application for Scissor Lift
Scissor lift platform can be used in the factory, warehouse, public places , stations and so on.
It provides you a good choice for aerial working.
Model List

Model	MK600	MK750	MK900	MK1100	MK1200
Load	500Kg	500Kg	500Kg	500Kg	500Kg
Platform Height	6m	7.5m	9m	11m	12m
Working Height	8m	9.5m	11m	13m	14m
Platform Size	1.85*0.88m	1.8*1.00m	1.8*1.00m	2.1*1.15m	2.45*1.35m
Lifting time	54S	72S	80S	88S	90S
Motor Power	1.5Kw	1.5Kw	1.5Kw	2.2Kw	3Kw

Model	MK1400	MK1600	MK600T	MK900T	MK1200T
Load	500Kg	300Kg	1000Kg	1000Kg	1000Kg
Platform Height	14m	16m	6m	9m	12m
Working Height	16m	18m	8m	11m	14m
Platform Size	2.45*1.35m	2.75*1.5m	1.8*1.00m	1.8*1.25m	2.45*1.35m
Lifting time	120S	130S	80S	100S	135S
Motor Power	3Kw	3Kw	2.2Kw	3Kw	4Kw

Standard Configuration for Manual Pushing Around Scissor Lift AC power : 220V 50Hz/60Hz, single phase or 380V 50Hz/60Hz, three phases Rain-proof electric cabinet Beacon light Inflated Tyre Forklift slot Towing hook Chinese domestic brand hydraulic power pack Pressure gauge Auxiliary release valve Level gauge Emergency stop button both on platform and ground Key lock power switch Lockable stabilizer Anti-skid floor on platform with removable handrails Toe protection boards on the platform Operation voltage at 24V Ladders for access to the stowed platform (Ladder for easy accessibility) Limit switch provided for top motor shut off Removable control box on platform Interlock doors on platform Detachable/Foldable Fence Powder coating painting Spring mounted handles Nylon bush assembled in between each scissor Short Circuit and leakage protection system
Optional Configuration for Manual Pushing Around Scissor Lift Platform extension Overloading protection DC power supply Battery Indicator for DC power Hour meter for DC power AC&DC power supply Motorized device for easily pulling Horn available for motorized device Explosion proof type Maintenance supporting bar Solid Tyre Overseas brand hydraulic power pack Outrigger sensor Horn on the platform AC power to the platform Platform working light Anti-burst valve on cylinder
Main Feature
1.Pointing control of lifting up and down.
2.Manganese steel lifting arm in high strength with rectangle shape
3.Anti skid floor in platform
4 The control panels are available on the platforms and ground.
5. Fine grinding cylinder in good sealing performance
6.Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.
Safety Precautions
1.The operation voltage on the platform is 24V
2.Emergency stop button on the paltform and ground
3.Auxiliary platform lowering
4.Telescopic legs on the chassis
5.Hose burst valve safety
6.Rain-proof design electirc cabinet
7. Fence on the platform
