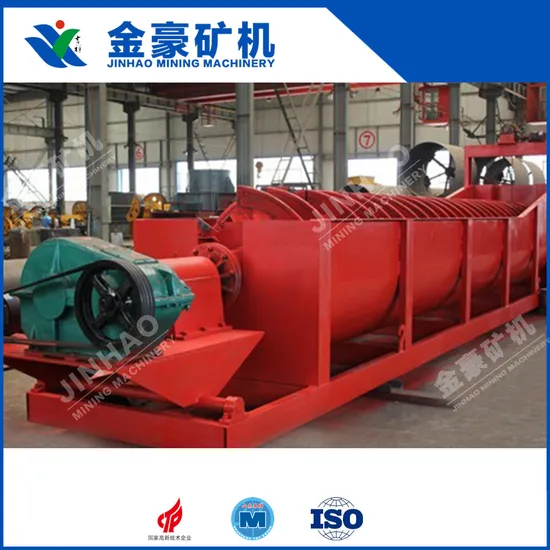

Grinding Equipment Gold Mining Machinery 7780-11880t/D Send Return Quantity FL Spiral Classifier (2FLG-15)

Product Description

Overview of Spiral ClassifiersSpiral classifiers are mineral processing and classification devices that use the rotation of spiral blades to classify and dewater materials. These machines are typically used in grinding circuits to separate fine materials that have reached the desired particle size and to return coarse materials to the grinding mill for further grinding.
Working Principle:The working principle of a spiral classifier is based on the stratification of materials under the action of the spiral blade rotation. When materials are fed into the classifier, the rotating spiral blades push the materials upwards. During this process, fine materials, due to their smaller particle size and higher hydrodynamic resistance, will rise with the spiral blades and overflow from the top of the classifier, while heavier coarse materials, due to their larger particle size and lower hydrodynamic resistance, will sink below the spiral blades and are discharged through an opening at the bottom, returning to the grinding mill.
Application Fields:Spiral classifiers are widely used in the mining industry, mineral processing plants, construction materials, chemical industry, etc., for material classification and dewatering in grinding circuits, as well as regrinding of coarse materials.
Advantages:Effective Classification: Precisely separates fine materials that have reached the desired particle size.High Processing Capacity: Particularly suitable for large-scale classification operations.Easy Operation: Simple to control and maintain.Low Energy Consumption: Compared to other classification equipment, it consumes less energy.Types:Single Spiral Classifier: Equipped with one spiral blade, suitable for small-scale classification operations.
Double Spiral Classifier: Equipped with two spiral blades, suitable for large-scale classification operations, providing greater processing capacity and finer classification effects.
High Weir Spiral Classifier: Features a higher weir plate for more effective control of material classification and overflow.Precautions:
Choose the appropriate type of spiral classifier based on the properties of the materials and classification requirements.
Regularly inspect the wear of the spiral blades and replace them in a timely manner.
Keep the equipment clean to prevent blockages of materials.
Ensure the stable operation of the classifier to achieve the best classification effect.As an efficient classification device, spiral classifiers play an important role in the field of mineral processing, helping to improve the efficiency and effectiveness of the entire mineral processing operation.Technical Data Sheet of FL Spiral Classifier

Type	Model	Specifi- cations	(mm) Spiral- dia	(r/min) Spiral Speed	Water		Dip (')	(t/d) Worker		Driving Motor		Lift Motor		Weight (kg)
					Length (mm)	Width (mm)		Overfiow Traffic	Send Retur Quantity	Model	kW Power	Mode	kW) Power
High Weir Single Screw	FLG-5	φ500	500	8~15	4500	555	14°~18°30'	32	143~261	Y90L-6	1.1			1600
	FLG-7	φ750	750	4~9.9	5500	830	14°~18°30'	65	256~564	Y132S-6	3			2900
	FLG-10	φ1000	1000	1.6~7.6	6500	1112	14°~18° 30'	85	473~1026	Y132M-6	5.5			4400
	FLG-12	φ1200	1200	5~7	6500	1372	14°~18°30'	155	1170~1600	Y132M-6	5.5	Y90L-4	1.5	8800
	FLG-15	φ1500	1500	2~6	8265	1664	14°~18°30'	235	1140~2740	Y160M-6	7.5	Y100L1-4	2.2	11680
	FLG-20	φ2000	2000	3.6~5.6	8400	2200	14°~18°30'	400	3890~5940	Y160L-4	15	Y100L2-4	3	20450
	FLG-24	φ2400	2400	3.6	9130	2600	14°~18° 30'	580	6800	Y180M-4	18.5	Y100L2-4	3	25650
	FLG-30	φ3000	3000	3.2	12500	3200	14°~18°30'	890	11650	Y225M-6	30	Y112M-4	4	37000
High Weir Double Screw	2FLG-12	φ1200	1200	6	6500	2600	14°~18°30'	310	2340~3200	Y132M-6	5.5×2	Y90L-4	1.5×2	15840
	2FLG-15	φ1500	1500	2.5,4,6	8250	3200	14°~18°30'	470	2280~5480	Y160M-6	7.5×2	Y100L-4	2.2×2	22100
	2FLG-20	φ2000	2000	3.6,5.5	8400	4280	14°~18°30'	800	7780~11880	Y160L-6/4	11×2 15×2	Y100L2-4	3×2	36400
	2FLG-24	φ2400	2400	3.67	9130	5100	14°~18°30'	1160	13600	Y180M-4	8.5×2	Y100L2-4	3×2	45874
	2FLG-30	φ3000	3000	3.2	12500	6300	14°~18° 30'	1785	23300	Y200L-6	22×2	Y112M-4	4×2	73030

1.In order to match the drum feeder of the ball mill, a sand scarper is installd, which makes the ore pulp flow from the side to the drum feeder of the ball mill.
2.Some models of classifier adopt roling bearing instead of the original sliding bearing , which reduce the frictional resistance and avoid the frequent replacement and maintenance of bearing. In addition, the ZQ or ZL reducer is used for reducing the time of installation and maintenance.
3.The lubrication parts have been improved and the largesize products equipped with grease pumps to make the lubrication reliable.
Remark
1.While placing order,please specify the type,quantity,especially the spiral direction of classifier.
2.In order to be good matching with relevant ball mills,the lengthened type of classifier(lengthening the sand return zone, lengthening the settling zone)can be designed and made according to customer demands,and the length should be indicated.
3.This classifier has several revolutions if there is no special requirement,the normal rotate speed classifier will be provided.
