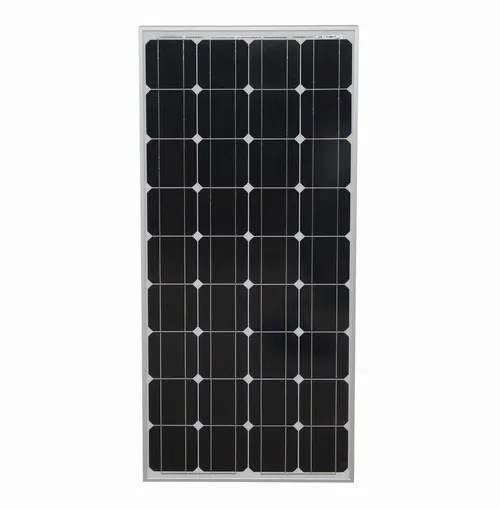

50W 100W 150W 200W 250W Solar Module 330W 340W 350W Mono Photovoltaic Solar Panel
Basic Info.
Model NO.
FSM-(090-100W)-36M
Application
Industrial
Condition
New
Certification
ISO, CE, TUV,IEC
Material
Monocrystalline Silicon
Type of Solar Cell
Mono-Crystalline
Connector
Cross-Section Top
Front Cover Glass
Safety Glass
Output
Nominal 12V DC for Standard Output
Outstanding
Low-Light Performance
Frame
Heavy Duty Anodized
Tempered Glass
High Transparent Low-Iron
Rugged Design
to Withstand High Wind Pressure,Hail,Snow Load
Appearance
Aesthetic
Material Warranty
10 Years Limited
Power Warranty
10 Years Warranty of 90% Power Output
Specifications
Subject to Change Without Notice at Any Time
Transport Package
2PCS/Carton
Specification
FSM-100W
Trademark
Flagsun
Origin
China, Jiangsu
HS Code
8541402000
Production Capacity
100MW/Year
Packaging & Delivery
Package Size
120.00cm * 55.00cm * 3.50cm
Package Gross Weight
8.000kg
Product Description
Specification| Type | FSM090W | FSM100W |
| Type of Solar Cell | Mono-crystalline, 156mm×156mm | Mono-crystalline, 156mm×156mm |
| Number of Cells | 36 pcs ( 125×125) | 36 pcs ( 125×125) |
| Size of module | 1200×550×35mm ( 125×125mm cell) | 1200×550×35mm ( 125×125mm cell) |
| Module, Weight | 8.0 kg | 8.0 kg |
| Junction box/Connector | TOP,IP65, 1000V DC, TUV certificated | TOP,IP65, 1000V DC, TUV certificated |
| Cables, Length (+/-) | Customizable | Customizable |
| Front Cover Glass | Tempered glass | Tempered glass |
| Front Cover Glass Thickness | 3.2 mm | 3.2 mm |
| Frame | Anodized Aluminium | Anodized Aluminium |
| Maximum Power Pm(W) | 90 W | 100 W |
| Power Tolerance | + 3% | + 3% |
| Maximum Power Voltage(Vmp) | 18.5 V | 18.6 V |
| Maximum Power Current (Imp) | 4.87 A | 5.21 A |
| Open Circuit Voltage(Voc) | 22.4 V | 22.5 V |
| Short Circuit Current(Isc) | 5.36 A | 5.52 A |
| Cell Efficiency | 17.10% | 17.90% |
| Maximum System Voltage | 1000 V | 1000 V |
| Operating temperature | -40 Degree to 85 Degree | -40 Degree to 85 Degree |
| Heavy mechanical load | 5400Pa (meet IEC61215) | 5400Pa (meet IEC61215) |
Can withstand high wind-pressure, snow loads and extreme temperature
Bypass diodes to minimize power loss with shading
High and stable conversion efficiency to ensure the highest quality
Double EL tests guarantee fault-free module
Product drawing
Successful stories
Manufacturer process
Certifications
Package
FAQ
Q : How can we guarantee quality?
A : Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q : Why should you buy from us not from other suppliers?
A : Intenergy is a global Solar energy provider with a presence in more than130 countries around the world.More than 1.5GW of Intenergy modules have been used in residential,commercial and off-grid systems around the world.
Q : what services can we provide?
A : Accepted Delivery Terms : FOB ,CFR ,CIF ,EXW.
Accepted Payment Currency : USD ,EUR ,CNY.
Accepted Payment Type : T/T ,L/C ,Credit Card.
