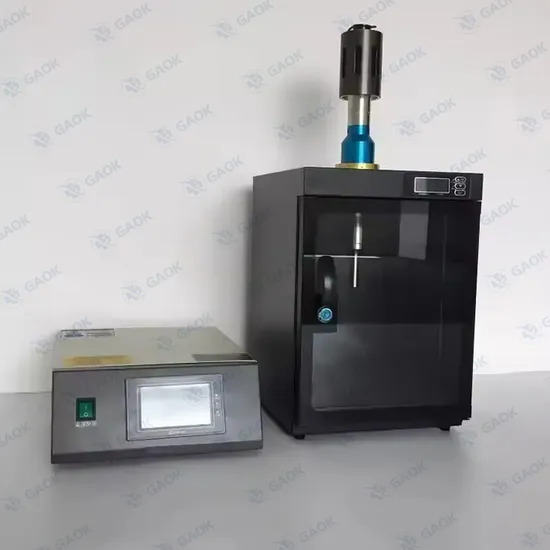

Ultrasonic Homogenizer Mixer Cell Disruptor Cell Sonicator

Product Description

Product Description
Graphene has excellent material properties, such as enhancing the strength of composite materials, and is increasingly used in the field of composite materials. However, it is difficult to peel off a single layer or a few layers of graphene from graphite. The traditional redox method requires very strong oxidants and reducing agents. The graphene obtained in this case often has defects. Ultrasonic vibration overcomes the van der Waals force with a high shear force of 20,000 times per second, thereby preparing graphene with high conductivity, good dispersion and high concentration. Since the ultrasonic treatment process can be precisely controlled, the chemical and crystal structure of the graphene obtained by ultrasonic dispersion will not be destroyed. Specification

Model	GK-300	GK-500	GK-650	GK-800	GK-1200	GK-1500	GK-1800	GK-2000	XCUH-2200
Frequency	16-25KHz (Automatic Tracking between )
Power	300W	500W	650W	800W	1200W	1500W	1800W	2000W	2200W
Crushing capacity(ml)	0-250	0-500	0-650	0-800	5-1200	20-1500	20-1800	20-2000	20-2200
Optional probe (Φmm)	2,3,6,8	2,3,6,8, 10	2,3,6, 10,12	2,3,6,8,10,12	3,6,10,15,20, 22	10,15, 20,22, 25	10,15, 20,22, 25	10,15, 20,22, 25	10,15, 20,22, 25
Power adjustable	0~100%
Pulser	Digital, closed loop, open loop, 1s to 99min to choose and set
Power Supply	AC220/50Hz,110V/60Hz

Our Advantages
1) Intelligent control technology, stable ultrasonic energy output,stable work for 24 hours per day.
2) Automatic frequency tracking mode, ultrasonic transducer working frequency real-time tracking. 3) Multiple protection mechanisms to extend service life to more than 5 years. 4) High dispersion efficiency 5) The dispersed particles are more fine and uniform
Certifications
Packaging & Shipping
Company Profile
Anyang Gaokang Medical co., ltd. Everyone in shanghai fengxian light science and technology park, is a collection of product design, development, manufacturing, engineering installation and after-sales service in one of the emerging comprehensive enterprise, the company's products strictly in accordance with the relevant state standards for design and production equipment, products involved in pharmaceutical engineering, dairy, beverage, biological engineering, chemical engineering, oil refining equipment and laboratory equipment processing and manufacturing as well as the whole plant installation. Company has the abundant technical service team, to provide customers with new or expansion projects of process design, plant layout, the product formula, technology consultation and turnkey engineering services, the company through hard hard work and constant innovation, rapid growth has to face the domestic and international market, with advanced production, testing, testing equipment, product varieties complete, advanced technology, excellent service industry leading enterprises.
