Sanway Fp10000q 4CH Professional Audio Power Amplifiers, 2 Ohms Stable Sound Amplifier DJ Stereo Amplifier

Product Description

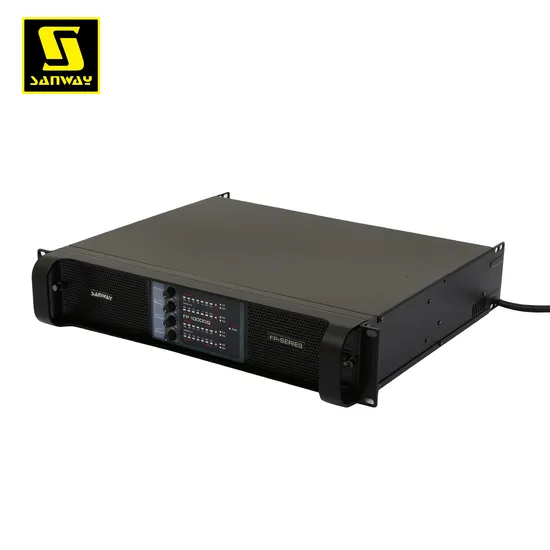

SANWAY FP10000Q 4CH professional audio power amplifiers,2 ohms stable sound amplifier
DJ Stereo Amplifier
The FP series switching power amplifiers are Sanway innovative technology achievement. They are designed to achieve unsurpassed sonic performance and longterm reliability for operating even under extreme rigorous conditions. In addition, this workhorse of the high power class TD amplifier is loaded with features including full short circuit open circuit, thermal and mismatched loads protection,and intelligent cooling system etc. Sanway FP10000Q 4 channel live sound amplifier is the core model in the FP series with competitive price, which is a perfect design for large scale events.

Feature :

1. switching power supply
High efficiency and stability of the new switching power supply
2. intelligent signal limiter
Each channel has an independent output signal overload distortion, automatic pressure lImited function,
to avoid DC level because of the audio signal output and burned speakers.
3. multiple detection, multiple protection
A soft start, the second start, the (low) pressure protection, output overload and short circuit protection.
4. high efficiency, low fever
Efficient Class TD amplifier, significantly reduce heat loss.
5. Metal Packaging, high-power transistors, a pure, passionate, authentic audio effects. 6. removable face Network
Removable the hole into the wind-net, easy cleaning.
Applications :
1>. Arenas
2>. Convention Centers
3>. Medium or large Ballrooms
4>. Perfect for corporate
5>. Theaters Music
6>. Club or Church
7>. Concert reinforcement
Specification of switching mode power amplifier FP10000Q:

ITEM	FP10000Q
Output Power	20-34KHz,1W with 1KHz
8Ω Stereo Power(RMS)	1350W ×4
4Ω Stereo Power(RMS)	2100W ×4
2Ω Stereo Power(RMS)	2500W ×4
8Ω Bridged Power(RMS)	4200W ×2
4Ω Bridged Power(RMS)	5000W ×2
Frequency Response(+0/-0.3dB, 1W/8Ω)	20Hz -34KHz
THD 20Hz-20KHz for 1W	<0.1%
Signal-to-Noise Ratio	>112 dBA
Channel separation(Crosstalk)at 1KHz	>70 dB
Input Connectors (per channel)	3-pin XLR,electronically balanced
Output Connectors (per channel)	Binding Posts 2-pole
Class	TD
TourClass Protection	short circuit, DC voltage,turn-on/off transient,current inrush
Operating voltage	220V Version: 130-265 V / 110V Version: 65- 135 V selectable
Voltage Gain(dB)	23,26,29,32,35,38,41,44 dB selectable
Input impedance	20 Kohms
Level adjustment(per ch.)	Front-panel potentiometer,31position detented from-inf to 0dB
Dimensions(WXHXD)	483×88×396mm
Packing dimension	580×180×560mm
Net weight(kg)	13
Gross weight(kg)	18

FAQ:

Q: Does this amp have a built in crossover?
A: No, it doesn't have crossover. If you would like have a crossover fouction, you could choose our DSP-10KQ or D10Q DSP power amplifier. https://cnsanway.en.made-in-china.com/product/rjLntyPugUcs/China-D10q-4CH-Professional-Digital-High-Power-DSP-Audio-Speaker-Amplifier-for-Full-Range-Loudspeakers-and-Line-Array-Sound-System.html

Q: Does this run in 2 ohm? Is there a switch in back for 2 ohm?
A: Our FP10000Q could run 2 ohms long term load stably. It does't have a switch in back for 2ohms. Becasue the amp can be load in 2ohms automatically, you could parallel the speakers to be 2ohms or you could use a 2ohms speaker.

Q: Will these FP10000Q amplifiers work well for home theater use or would the fan noise be to much?
A: Yes, the FP10000Q is suitable for home theater use. We will provide quiet noise fan for home theater version power amplifier, so that it can decrease much noise. Please kindly tell us your request before place the order.

Q: Does this model work with 120V or just 220V?
A: We provide two kinds of voltage version:
220V version power amplifier could run from 135V to 265V
110V version power amplifier could run from 65V to 135V
Please kindly tell us your request before place the order.
