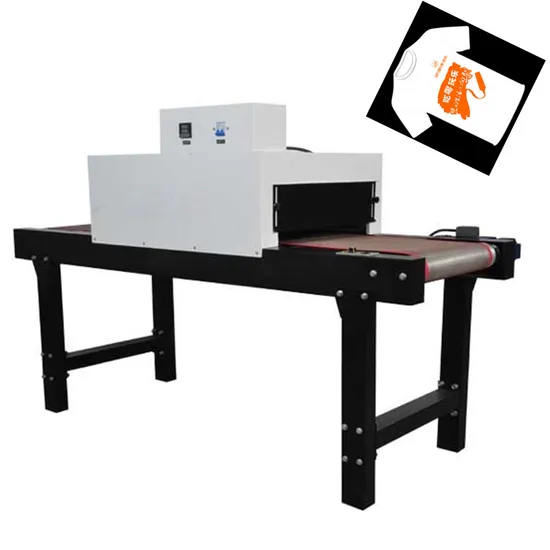

Printing Ink Textile Solidifying Heat-Set IR Tunnel Oven for T-Shirt

Product Description

Product name:IR-T650 printing ink Textile solidifying heat-set IR tunnel oven for T-Shirt Product Description conveyor drying machine for t shirt Parameters:

Model	IR-T650	IR-T400	IR-T200
Conveyor(L*W*H)	1800*900*1280mm	1800*750*1280mm	1000*460*465mm
The drying zone(L*W)	800*900mm	800*750mm	520*460mm
Conveyor belt width	650mm	400mm	200mm
The biggest conveyor width	750mm	450mm	250mm
The biggest conveyor height	100mm(Adjustable)	100mm(Adjustable)	100mm(Adjustable)
Conveyor belt(material)	PTFE(Teflon)	PTFE(Teflon)	PTFE(Teflon)
Conveyor belt(speed)	1-5meter/minute	1-5meter/minute	1-5meter/minute
IR Lamp	500W, 8 pcs,Heraeus (Adjustable)	500W, 6 pcs,Heraeus (Adjustable)	300W, 6 pcs,Heraeus (Adjustable)
Power of generator	90W(stepless speed regulation)	90W(stepless speed regulation)	90W(stepless speed regulation)
Total Power	4100W, 220V,SINGLE PHASE	3100W, 220V,SINGLE PHASE	1860W, 220V,SINGLE PHASE
G.W	200KG	160KG	100KG

T-shirt ir tunnel oven is Flash Drying Equipment
Small conveyor dryer Feature
1. Cover small area,easy to use
2. Teflon screen belt , customers' designs are welcome.
3. Motor can be set to any speed and provides a smooth and even motion.
4. Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.
5. Adjustable belt speed and tunnel temperature controls.
hot tags: Paint IR Curing Machine, Paint Electric Oven, Paint UV&IR Drying Tunnel, Paint Conveyor Dryer, Paint Tunnel Oven, Paint Tunnel Infrared Dryer Oven, Paint Drying tunnel, Paint Infrared Drying Tunnel, Paint Silk screen infrared oven, Paint Convection Oven, Paint air dryer, Paint vacuum dryer

Tamprinter printing machinery group limited is one of the most professional plastic printing machine supplier in China. We have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification. Due to business expansion, Shenzhen Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013. Key products: plastic sheet screen printing auto line, plastic Bottle screen printing machine,UV curing machine, IR tunnel dryer. Major market: South America and Europe . Business scopes: 1. Research, develop, produce and sell: Screen printer, Pre-post printer(UV curing machine, Flame treatment machine, UV exposure machine, Silk mesh tighten stretching machine, Screen stencil drying oven, Silk screen frame exposure machine, oven, IR drying tunnel conveyer ),Pad printer, Hot stamping machine; 2. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting; 3. Valet Manufacture: flame treatment gun, screen frame, Screen Stencil, pad, steel plates, film, Drying Racks Trolley and the relative moulds, jigs and parts; 4. Sale by proxy the relative supporting materials: printing ink, Ink Adjustment tool, Rubber pads Materials, Pad Printing Blade, ink cup and ring, Pad holder, ink roller, Screen Silk, Aluminium Screen Frame, Rubber Squeegee, sensitive emulsion, Emulsion Coating tool, Etching powder, Sensor Switch, Tension meter, Spraying gun, Circuit board, Inkwell, Solenoid Valve, hot stamping foil, High temperature tape, Stamp plate, Silicon rubber roller, Heat transfer paper, High temperature glue, UV lamp, UV lamps Trigger etc; 5. Import and export business of the above items.
6. Our engineer can communicate with clients at anytime in English, design development use UG, Proe, Autocad, Mastercam,Photoshop,AI,Coreldraw; Applications : It mainly applies to the printing process and pre-postpress of plastic and hardware products .Our equipment is also applicable to other material as glass, ceramic, wood, leather, cloth, etc.
Involved in the industry:
Electronics, toys, gifts, clothing, stationery, cosmetics, washing products, chemicals, food, health product, pharmaceutical and packaging etc.
Advantages :
1. All the electrical components and control system are from Germany and Japan, guarantee the stable quality of the print.
2. Multi-purpose microcomputer operating panel and touch screen operation can easily achieve man-machine dialogue.
3. As high quality steel frame structure and High temperature of the lacquer that bake, so that our printer is light and solid, beautiful and practical.
Our first-class products and considerate services have won more than 80 countries, acceptance in Europe and the United States, Canada, Southeast Asia, the Middle East and other customer, and we enjoyed a high reputation in the market. We cooperate with Omron, Emerson and Ruigao light, which are the world famous enterprises. The value rules of our company :

Our vision: to become well-known brands in the industry.

Our belief: excellence, legendary achievements.
Our aim: to sustain profitability, built to last.
Our customer concept: improve customer satisfaction, and create a win-win situation.
Our product concept: safety, energy saving, environmental protection, easy to use.
Our opinion on talent: loyalty, integrity, professional spirit, dedication.
Our style: leading front among the people enough to be the first rate of people, self-discipline enough to convince the people.
Our criteria: compliance with commitments, do what we say.
Our motto: self-discipline to learn, know one line.
Our slogan: Healthy Living, happy work Payment Terms TT / LC / West Union
IF YOU have any question about product,welcome to contact me
Name: SHENZHEN TAMPRINTER PRINTING MACHINERY LIMITED Address: 111, Fourth Industrial Zone, Guanlan Town, Shenzhen518110 Contact : Mr. Tam Liu (Manager) p. +86.15994744161----f. +86.755.23148182
