Cr12MOV Mold for Punch 304 Strips High Quality with Press Machine and Feeder

Product Description

Power Press -Mold-Automatic Production Line
Whole Line Solution

High quality -steel frame- single crank -precision michanical power press machine, advanced technology
Mechanical power press machine 20T to 2400T with automatic NC servo feeder, transfer system, progressive die
We desgin and manufacturing power press machine, which be possible excellent connect with:

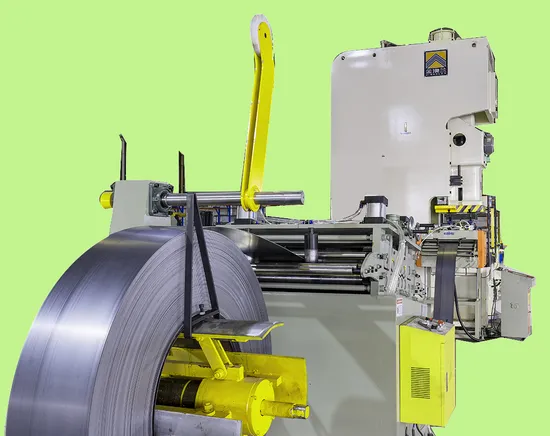

- Decoiler&straightner + NC servo feeder
-Transfer system
-Robot
-Tools/Molds/Progressive die
- Metal parts production line complete solution
-Filed service /On line service
- Punching -machine Stamping Mold Line power press whole line solution.

We desgin and manufacturing molds with function excellent connect with:
- Decoiler&straightner + NC servo feeder
-Transfer system
-Robot
-Tools/Molds/Progressive die
- Production line complete solution
-Filed service /On line service
1.Mold Design& Manufacturing

2.Mold Design& Manufacturing
The power press stamping molds/tools are including:
1. progressive die,
2. Stage mold (single stage mold),
3. Transfer mold (with transfer system)




What is the difference between progessive die, stage mold and transfer mold?
Continuous die (also known as progressive die, step die) refers to the press in a stroke, in turn in several different positions, at the same time to complete a number of procedures of the die. Blanking parts are gradually formed in the continuous die, continuous forming is a process method of process concentration, can make the edge cutting, incision, groove cutting, punching, plastic deformation, blanking and other processes in a mold to complete. According to the actual needs of stamping parts, according to a certain order arranged a number of stamping processes (called in the progressive die station) for continuous stamping. It can not only complete the blanking process, but also complete the forming process, and even the assembly process, many complex stamping parts that need multi-process stamping can be completely formed on a die, which provides favorable conditions for high-speed automatic stamping. It can be seen that the continuous die is a kind of punching die with many working stations and high efficiency.

Engineering mould (single working procedure mold/ single stage mold), is a single working position, single working procedure mould.It is characterized by a simple mold structure, the need for artificial or robotic arm assistance;So the relative production efficiency is low, mainly used for batch is not large, precision requirements are not high workpiece production.Due to the low cost of the engineering mould and the low requirement on the tonnage of the punch press, the engineering mould scheme is often preferred when making the mould scheme. However, with the continuous cost rising, the engineering mould will be gradually replaced by the continuous mould or transfer mould.

Multi-station transfer mold, generally refers to the use of special multi-station punch, by a number of engineering mold with a certain process connection according to the process sequence installation, a kind of mold delivered by the manipulator. The most important characteristics of the multi-station transfer die (1) in the use of multi-station punch;(2) Each station is a complete engineering model to complete a specific process. Each engineering mold (single station-mold) has a certain connection, each station mold can be adjusted independently, and the adjustment is generally not restricted by the front and back mold;(3) transmission mode: mechanical hand delivery.

Regular Mold Manufacturing parameters

Product Name	Precision metal progressive stamping dieprecision metal progressive stamping die
Material	SKD11,D9, Tungsten steel, Cr12 Mov
Standard	DIN GB ISO JIS BA ANSI
Design file format	dwg, dxf, step, x_t, top, igs
Tooling manufacturing cycle	3 weeks to 10 weeks
Forming way	Punching, blanking, bending, burning, deep drawing, forming, etc
Stamping parts	Aluminum, phosphor bronze,stainless steel,steel,alloy,copper,plastic etc
Parts machining equipment	Hot galvanized,Polish,Anodize,Sand blasting,Powder coating,Vacuum Plating,Nickel, Zinc, Chorme,Tin, Silver plating, gold-plated,imitation gold-plated,etc

We could provide the whole line solution including power press, feeder and decoiler, mould, Iron-hand,etc.
Progressive die/ Mold/Tools workshop
Our produced products
About US
Our brand is KINGLAN, the main products we producing are pneumatic presses (20-2400T) and progressive die, feeder machine, and so on, which mostly used for metal piercing,drawing,forming,cutting,levelling and blanking.KINGLAN Company has more than 300 employees, and the college education accounted for 70%. In 2012, the company increased the investment of USD 100 million on the original basis, which
enhanced the competitiveness, so that the products reached the top level in China. After
continuous development, our current power press are also excellent in the world. Our
technologists come from Japan,Germany, and Taiwan. At present,our quality customers includ GM, GREE,Ford,ZOTYEAUTO,VW,Midea,Vanward,Aux,ect.
Punching machine workshop
Turkey solution for customers--before delivery whole line testing in punching machine workshop
How can we provide you efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.
Q1: What about the after-sale service and installation?
A1: We provide on-line guidance or filed service ---our engineers are available to service machinery overseas in if customers required of it.
