CNC Log Cutting Vertical Band Saw Machine Multi Blades Bandsaw

CNC Log Cutting Vertical Band Saw Machine Multi Blades Bandsaw

US$13,100.00-52,600.00 1 Set (MOQ)

Basic Info.

Model NO.
WS400
Power Type
Electric
Layout
Vertical
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
Precision
Certification
ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
12 Month
Name
Multi Band Saw Blades Log Cutting Sawmill
Max Sawing Diameter
100-400mm
Motor Power
30kw*2
Saw Wheel Diameter
950mm
Feeding Speed
6 Meters/Minute
Feeding Motor
2.2kw
Saw Blade Width
80*0.9mm
Blades Quantity
2/4/6/8/10
Transport Package
Customized
Specification
Customized
Trademark
Customized
Origin
China
HS Code
8465910000
Production Capacity
200 Sets Per Year

Packaging & Delivery

Package Size
600.00cm * 250.00cm * 265.00cm
Package Gross Weight
5200.000kg

Product Description

2/4/6/8/10 Blades Multi Band Saw Blades CNC Log Cutting Vertical Sawmill
Pneumatic Hydraulic blade tension with pressure gauge
Electrical control operation panel
Product Parameters
Sawing Log Diameter 100-400MM
Saw Blade Motor 30KW*2
80MM Width 1.4-1.8MM Kerf Band Saw Blades Quantity 2/4/6/8/10 Pcs
Saw Wheel Speed 700RPM
Max Diameter of Drive Wheel 950MM
Feeding Motor 2.2KW With Gear Box
VFD Chain Feeding Speed 0.1-6 Meters/Minute
Cutting Tolerance ±0.5MM
High Precision steel saw wheel 0.05MM
Voltage 380V 50HZ
Air Source 0.5-0.8MPA
Total Power 62.2KW
Length*Width*Height 6000*2500*2650MM
Weight 5200kg

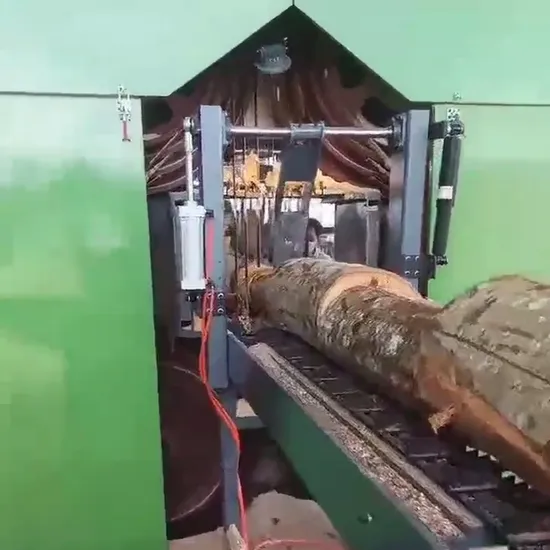

Detailed Photos
Related Machines
Pine Log Cutting Bandsaw Twin Vertical Band Saw Machine
Twin Veritcal Band Saw Pine Cutting Line For Mozambique
Twin Vertical Band Saw For Pakistan
Twin Vertical Band Saw For Venezuel
Square Block cutting Multi Ripsaw
Model 60 80 100 120 150 100H 120H 160H 200H 250H 270H 300H
Cut Height MM 0-60 30-80 40-100 50-120 60-150 40-100 50-120 70-160 90-200 110-250 130-270 150-290
Cut Width MM 250-300 250-300 250-300 250-300 250-300 350-400 350-400 350-400 350-400 350-400 350-400 350-400
Saw Diameter MM 150 180 210 230 255 230 255 280 355 380 405 455
Motor Power KW 18.5/22 22*2 22*2 22/30 22/30 30*2 37*2 37/45 37/45 45*2 45/55 55*2
Weight KG 1190 1260 1420 1560 1620 2330 2450 2480 2550 2580 2620 2700

Multiple Heads Horizontal Resaw Band Saws
Model HR1 HR2 HR3 HR4 HR5 HR6
Sawing Wood Width 300MM (Customized)
Sawing Wood Thickness 2-260mm
Saw Blade Length*Width 5000*65MM
Saw Wheel Diameter 700MM
15 KW Electric Motor 1 2 3 4 5 6
Machine Length MM 3500 4500 5800 6000 8500 11000
Weight 900KG 1500KG 2200KG 3000KG 3500KG 4000KG


Company Profile
Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Our wood band Sawmill including:
Hydraulic Heavy Duty Horizontal Sawmill
Hydraulic Portable Horizontal Sawmill
Multiple Heads Horizontal Resaw Band Saws
Heavy Duty Horizontal Sawmill
Portable Horizontal Sawmill
Thin Cutting Horizontal Resaw
Mini Portable Sawmill
Twin Vertical Band Sawmill
Vertical Band Sawmill
Log Carriage (Manual,Electric,Pneumatic,Hydraulic)
Band Saw Blade
Band Saw Blade (Sharpener,Butt Welder,Roller)
Brazing Machine (Manual/Automatic Stellite/Tungsten)
Blade Grinding Machine(Manual/Automatic ,Side/Angle)
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!
