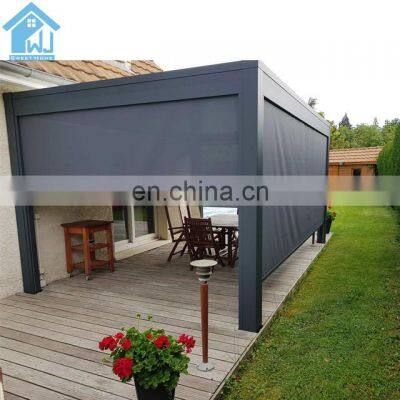

PergoLam is a combination between pergola and horizontal louver which is completely made of aluminum and allows light and breeze when open.
Using an electric telescopic engine connection system through parts and aluminum extrusions specially designed, the slats are dosed completely sealed preventing the passage of light and water. When closed the slats become channels that carry the water to the sides that have their own system of canals and water should turn towards the poles where it drains.
Guaranteed to withstand severe climatic changes and winds of up to 100 KM/h .

Product Name:	Patio Roof Pergola
Framework Main Beam:	Extruded from 6063 Solid and Robust Aluminum Construction
Rianfall intensity :	0.04-0.05L/S/M2
Snow Load:	UP to 120kg/m2
Win Resistance:	UP to 120km/h for closed blades
Width Range:	2.5m - 13.5m
Electric Motor's Voltage:	110V Or 230V
Remote Control:	1 Channel or 5 Channel
Gutter:	Complete with Gutter and Rain Spout for Inbuilt PVC Downpipe
Louvres Blade Size:	150mm /200mm/ 265mm Aerofoil Type Available, Waterproof Eeffictive Design
Pivot Bolt:	Highly Durable Aluminum with PP Blade End Caps
Other Componentries:	Heavy-duty internal fittings, Plastic bush, SS Grade Stainless Steel Screws
Typical Finishes:	Durable Powdercoated for Exterior Application
Colors Options:	RAL 9016 Traffic White or RAL 7016 Anthracite Grey
Motor Certification:	TUV,CE,SGS

We will test each aluminum pergola and inspect the size before paint and ship to avoid any mistake and will send the testing videos and pictures to our clients .
We have our own color customized workshop , we can custom any colors base on RAL color card number.
Project
Product Paramenters

post size:	150x150x3mm
Beam size:	200x50x3mm
Louver size:	200x60mm
Color:	we can custom any colors base on RAL color card number
Color:	motor+remot/switch

Factory and Package
Our team
FAQ
Q1:How to guarantee the quality of the products?
We have our own QC team to control the products quality for all our clients'orders before loading.
Q2:How long does it take to install a louvres roof /pergola?
It depends on te skills,help and tools, usual 2-3 workers will finish the installation 50m 2 in one day.
Q3:It is the louvre roof /pergola rain proof?
Yes,the normal weather cnditions,even heavily rain,the roof /pergola will not let in rain.
Q4:How does the rain sensor work?
The control system normally programmed to close the louvres when rain is detected.
Q5:Are louvres roof/pergola energy efficient?
The adjustable louvres blade help to reduce heating and controlling the amountof direct sunlight.
Q6:Can the louvres roof/pergola used next to the sea?
All accessories in aluminium alloy,stainless steel and brass to avoid any rust and corrosion.
Q7:How we do business?
Take care of your prducts and serve your needs.
Contact us by E-mail or by phone.
