Product Description

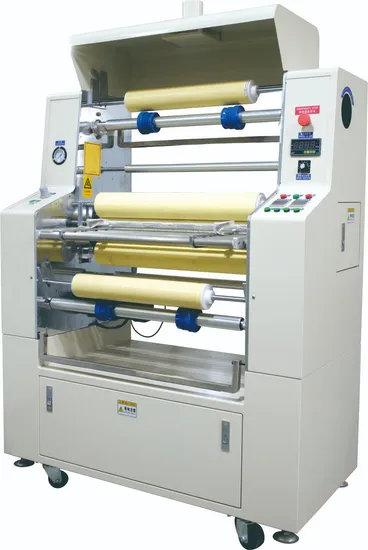

Product Description Manual Dry Film Laminator
model number:GH74R-Q(With sticky dust function)
applied range:The equipment is widely used in PCB, FPC, DBC, acrylic, glass and other plane product graphic transfer process pressure dry film use.
Characteristics: using the heating mode from the inside out, heating two pressure film roller. The Japanese temperature controller PID is used to control the temperature of the rolling film to ensure that the temperature of the rolling film roll appearance is stable during the film pressing process. The pressing film is made of special process, with moderate hardness, long service life and convenient replacement.
current source :AC 220V,single phase,6.5KW ,50HZ
Maximum film size: 750MMX750MM
Minimum film size: 140MMX140MM
Pressure roll diameter:80MM.
Pressure roll quantity:2.
Film thickness:0. 01-3.5mm.
Pressure membrane speed:Using a digital speed display, the speed range of 0~3.5m/min is adjustable.
Pressure membrane temperature: room temperature ~130ºC.
Adhesive dust roll quantity:2
Cstick dust paper quantity:2
Temperature control system: 2 Japanese OMRON temperature controllers, combined with SSR, The upper and lower rollers can be set for control, set automatic temperature control, with overtemperature protection function.
pressure:0-8kg/cm2(adjustable).
External size::L1300*W750*H1750mm.
Equipment weight: about 350 kg.
