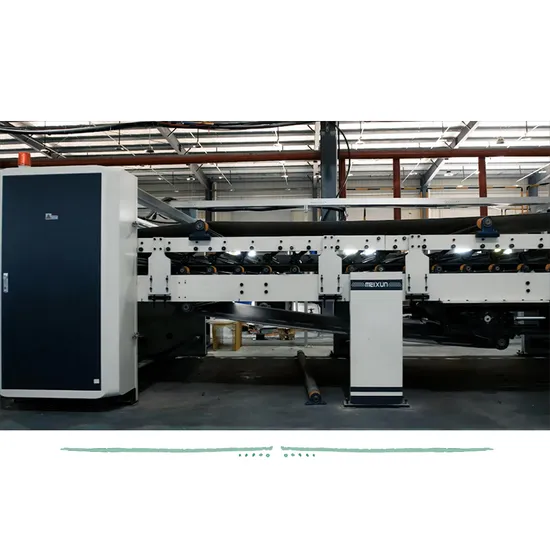

High-Speed Honeycomb Paperboard Production Line for Cardboard Solutions

Product Description

Product Description Main technical parameters of the equipment: Delve into the comprehensive technical specifications of our cutting-edge production line. Engineered with precision, the equipment boasts unparalleled speed, accuracy, and durability. Discover the intricate details that make our machinery a top choice for manufacturers seeking excellence. Explore parameters such as production speed, material compatibility, and operational efficiency that set our equipment apart from the rest.

	parameters	Specification
1	Facial paper (width x roll diameter)	2 0 00mm×Φ1400mm
2	Effective width of finished paperboard	1300mm- 2000mm
3	Paper weight	140g/M²-- 4 20g/M²
4	Adhesive	starch glue
5	Finished paperboard thickness	5-60mm
6	Finished paperboard length	800mm -- 3500mm
7	Maximum production speed of honeycomb paperboard	100m/min (sheet thickness 6mm, honeycomb side length 4.5 mm, core paper weight 80-100 grams, surface paper weight 170grams, paperboard length 2500mm)
8	heating method	steam heating
9	Equipment installed power	About 200KW _
10	normal production power consumption	About 200 KW* 5 0%- 6 0%
11	Total weight of equipment	About 150 T (including dry unit)
12	Equipment Dimensions	76000mm(length)×6000mm (width)×5100mm(height)
13	Direction of machine operation	based on customer's needs

Configuration table of HF2000 laminating line: Examine the detailed configuration of the HF2000 laminating line, an integral component of our honeycomb paperboard production system. This thorough table outlines the essential features and configurations, providing you with clear insights into the versatility and adaptability of our machinery. Find out how each configuration can be optimized to meet specific production needs, ensuring uncompromised quality and performance.

	part name	project configuration	Remark
1	Finished paper core pulling unit	Up and down brush roller conveying	Stable conveying and even pulling
2	Paper Core Drying Unit	6 M steam heating, hot air circulation	drying, shaping
3	Paper core conveying group	Synchronous paper core conveying group	Stable delivery
4	Facial paper shaftless paper holder	Hydraulic shaftless paper holder	Convenient
5	Arc Plate Preheating Group	Using arc hot plate	Steam heating ,
6	Automatic paper splicer	Manufacturer standard	outsourcing
7	Lower core surface glue coating unit	Anilox roller gluing, metering roller independent control	The upper rubber roller is finely ground, and the amount of glue is uniform and controllable
8	paperboard composite drying group	with deep hole drilling steam ironing board Composite with pressure roller and cotton conveyor belt	Less steam consumption, firm composite, controllable moisture content of paperboard
9	Tissue preheating 2	Equipped with diameter Φ 1000 preheating cylinder	Steam heating , adjustable wrap angle

10	Upper core surface glue coating unit	Anilox roller gluing, independent control of metering roller, the whole gluing part can be raised and lowered	The upper rubber roller is finely ground, and the amount of glue is uniform and controllable
1 1	paperboard composite drying group	with deep hole drilling steam ironing board Composite with pressure roller and cotton conveyor belt	Less steam consumption, firm composite, controllable moisture content of paperboard
1 2	paperboard cooling unit	Channel steel frame structure
1 3	Servo slitting unit	5 knives 8 lines
1 4	Automatic spiral knife cross cutting machine	Spiral knife structure
1 5	paperboard collection unit	Small longmen Collection
1 6	other	Main electrical producing areas : Taiwan , Japan , South Korea , domestic
