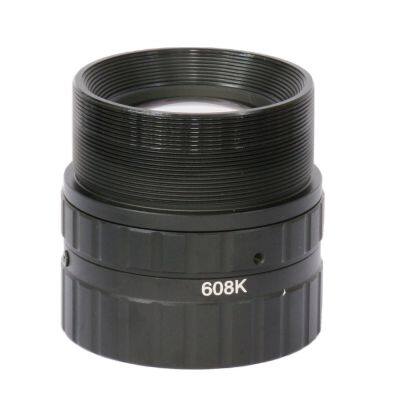

HD High Resolution F4.0 60mm Line Scan Industrial Lens for 8K 5μ 7μ Camera
Product Details
Product Details
Product Description
Product Description| Technical Parameters of Line Scan Lens | ||||||||||||
| No. | Model No. | Pixel | Max. Image Plane | Resolution | Aperture Range | Reference Magnification | FL (mm) | TV Distortion | Relative Illumination | Working Distance | Conjugate Distance | Interface |
| 1 | 02-012-001 | 8K | φ64 | 7um | F/N.4.0~16 | 0.03~0.18X | 60 | <0.002% | 60% | M72 | / | / |
| 2 | 02-012-002 | 8K | φ82 | 7um | F/N.4.0~22 | 0.1~0.3X | 80 | <0.002% | 40% | V mount | / | / |
| 3 | 02-012-003 | 8K | φ82 | 7um | F/N.4.0~22 | 0.1~1.1X | 60 | <0.002% | 42% | V mount | / | / |
| 4 | 02-012-011 | 16K | φ82 | 3.5um | F/N.4.0~16 | 0.26X | 146 | <0.002% | 80% | 645 | 865 | M72 |
| 5 | 02-012-012 | 16K | φ82 | 3.5um | F/N.4.0~16 | 0.33X | 146 | <0.002% | 80% | 533 | 764 | M72 |
| 6 | 02-012-013 | 16K | φ82 | 3.5um | F/N.4.0~16 | 0.5X | 146 | <0.002% | 90% | 381 | 632 | M72 |
| 7 | 02-012-014 | 16K | φ82 | 3.5um | F/N.4.0~16 | 0.75X | 146 | <0.002% | 90% | 286 | 674 | M72 |
| 8 | 02-012-015 | 16K | φ82 | 3.5um | F/N.4.0~16 | 1X | 116 | <0.0001% | 90% | 184 | 442 | M72 |
| 9 | 02-012-016 | 16K | φ82 | 3.5um | F/N.4.0~16 | 1.33X | 146 | <0.002% | 90% | 201 | 674 | M72 |
| 10 | 02-012-017 | 16K | φ82 | 3.5um | F/N.4.0~16 | 2.0X | 146 | <0.002% | 90% | 163 | 632 | M72 |
| 11 | 02-012-018 | 16K | φ82 | 5um | F/N.4.0~16 | 3.0X | 146 | <0.002% | 90% | 150 | 764 | M72 |
