100L 200L 300L SS304 Stainless Steel High Pressure Laboratory Chemical Reactor
| US$300.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JT-FJG
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid, Granules
Application Area
Chemical, Chemical
Certification
CE, ISO
Condition
New
Main Material
Stainless Steel
Stirring Type
Diving
Working
Convection Mixer
Surface Finish
Mirror Polish
Certifications
CE, SGS, ISO 9001
Material
SUS304or SUS316L
Mixer Type
Agitator
Layout Type
Verticle
Mixing Drum Shape
Disc
Operating type
Continuous Operating
Warranty
1 Year
Transport Package
Wooden Case or According to Customer′s Requiremen
Specification
50-15000L
Trademark
Jhenten
Origin
China(Mainland)
HS Code
84219990
Production Capacity
500 Sets/Month
Product Description
IntroductionMagnetic Stirring Tank strictly follow the Article 31, 32 of GMP general rules "Good Manufacturing Practice" (Revised in 2010), to design, produce and inspect according to the requirement of "Pressure Vessel"(GB150-2011) and "Steel welded atmospheric pressure vessels"(NB/T 47003.1-2009)

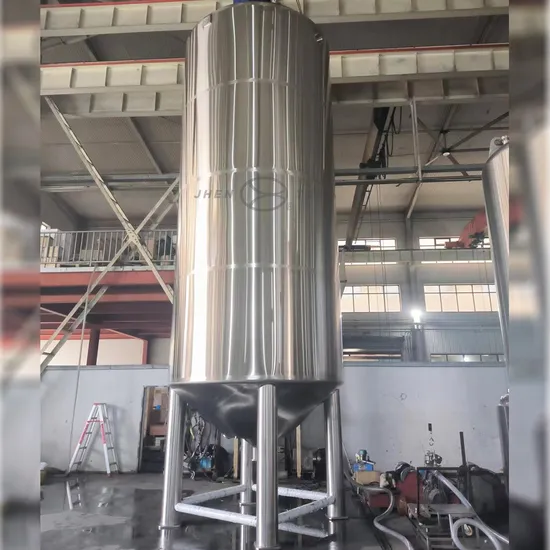

Magnetic Stirring Tank adopts Vertical circular tanks, both of top and bottom are standard oval and torispherical head. Transition section in tank using circular arc transition, without dead corner, easy to clean. Single layer, double layer(insulation for tank and bottom head) or Jacket(tank and bottom head have jacket and insulation), equipped with magnetic stirring can implement CIP and SIP, according to customers' requirement.
| Tank Optional Configuration |
| The body of Magnetic Stirring Tank can chose sterile air filter, thermometer(Digital display or Dial type), PH meter, pressure gauge, steam sterilization hole, sight glasses, sanitary manhole, liquid in-outlet, CIP Universal rotating cleaning ball, liquidometer and Liquid level control system(Bearing module, non-contact ultrasonic, static pressure transmitting device) and so on, also can configure as customers' requirement. |
| Feature |
| • Volume:100L~5000L and multiple specification, also can design and manufacture according to customers' requirement. • Jacket can pass steam (or hot water), can also pass the cooling water. Jacket has disk tubular, full jacketed and Maitreya plate. Jacketed outside covered with insulation, thermal insulation material for rock wool (warm) or PU (cold). • The connection adopts Tri-clamp, the tanks' inner use 304 or 316L. The inner surface mirror polishing Ra≤0.28μm~0.6μm, outer surface can polishing, wire drawing and sandblasting according to customers' requirement. • Using bottom magnetic stirring, special designed stirring paddle, The best revolving speed range should be 20r/min~400 r/min, Can be suitable for mixing different medium. |
| Application | |
| • Can be a Storage Tank, mixing tank, temporary Storage Tank, mixing tank, etc., Used in liquid materials' mixing and storage such as food, dairy products, fruit juice beverage, pharmaceutical, chemical and biological engineering. | |
| Design parameter | |
| Design pressure | Barrel according to customers' requirement(0.02MPa~0.8MPa) Jacket according to customers' requirement(0.02MPa~0.5MPa) |
| Design temperature | Barrel and Jacket according to customers' requirement(0ºC~160ºC) |
| Material | |
| Liner | 304,316L |
| Jacket | 304 |
| Insulation | Rock wool (keep warm) PU (cold insulation) |
| Feet | 304 |
| Connection | |
| In-outlet | Quick open, Flange |
| Surface Finish | |
| Finish Type | Mechanical polishing, electrolytic polishing, sand blasting, pickling |
| Polishing precision | Inner wall 0.28μm,outer wall 0.6μm |
| Normal Model And Main Technical Parameters | ||||||||||
| Parameters | Model | JTRCL-150 | JTRCL-300 | JTRCL-500 | JTRCL-800 | JTRCL-1000 | ||||
| Effective volume:L | 150 | 300 | 500 | 800 | 1000 | |||||
| Body | Diameter:mm | Φ550 | Φ750 | Φ900 | Φ1000 | Φ1100 | ||||
| Height:mm | 650 | 700 | 650 | 1000 | 1000 | |||||
| Agitator | Power:kW | 0.14 | 0.25 | 0.75 | 0.75 | 1.5 | ||||
| RPM:r/min | 20~400(The design can be adjusted according to customer use condition) | |||||||||
