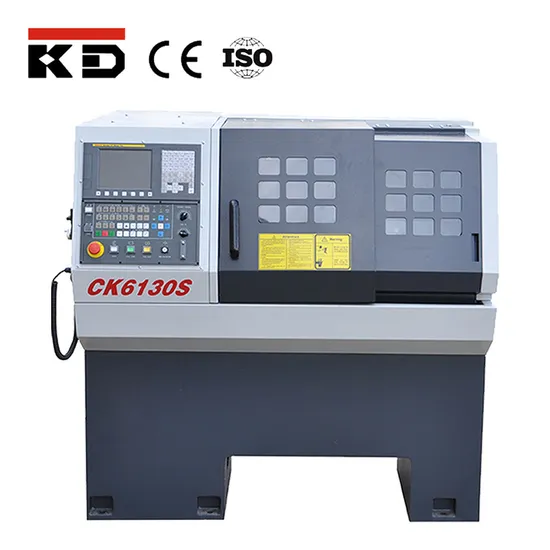

Ck6130s High Precision Flat Bed Used CNC Lathe for Sale
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CK6130S
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
+-0.03mm
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Delivery
45 Days After Order Confirmed
Color
Made to Order
CNC Control
Fanuc, Simens, GSK
Bar Feeder
Optional
Spindle Bore
38/43mm
Machine Length
500mm
Spindle Speed
200~3500rpm
Main Motor
3kw
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
500 Sets/ Month
Product Description
PRODUCT SPECIFICATIONS
| MODELS | CK6130S | CK6140S | |
| CAPACITY | | ||
| Max.swing over bed | Ф300mm | Ф400mm | |
| Max.swing over carriage | Ф135mm | Ф225mm | |
| Max. length of workpiece | 500mm | 750/1000mm | |
| Max.turning length | 390mm | 700/950mm | |
| 6-way turret max turning length | 340mm | 590/840mm | |
| 6-way turret max turning diameter | Ф185mm | Ф300mm | |
| TRAVEL | | ||
| Max.cross travel(X) | 165mm | 235mm | |
| Max.longitudinal travel(Z) | 460mm | 740/990mm | |
| FEED | | ||
| Rapid feed for axis X | 8m/min | 8m/min | |
| Rapid feed for axis Z | 10m/min | 10m/min | |
| SPINDLE | | ||
| Spindle nose | D4 | C6 | |
| Spindle bore | Ф38 | Ф52mm | |
| Taper bore of spindle | M.T.NO.5 | M.T.NO. 6 | |
| Steps of spindle speed (manual) | Variable | Variable | |
| Range of spindle speed | 200~3500rpm | 200~2800rpm | |
| TOOL POST | | ||
| Tool post stations | 4-way | 4-way | |
| Tool cross section | 16×16mm | 20×20mm | |
| TAILSTOCK | | ||
| External diameter of tailstock sleeve | Ф50mm | Ф60mm | |
| Taper bore of tailstock sleeve | M.T.NO.3 | M.T.NO.4 | |
| Max.traverl of tailstock sleeve | 130mm | 120mm | |
| OTHERS | | ||
| Min. input | 0.001mm | 0.001mm | |
| Main motor power | 3kw | 3.7kw (optional: 5.5kw) | |
| Coolant pump power | 75w | 75w | |
| Overall dimensions(L×W×H) | 1500×945×1380mm | 2370×1200×1415mm | |
| Net weight | 1100kg | 1800/2000kg | |
