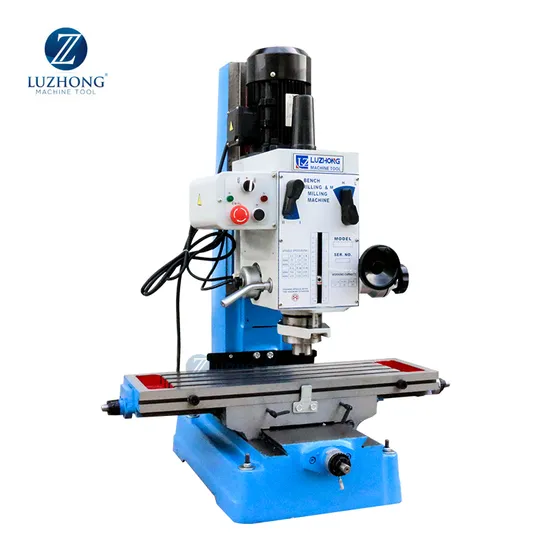

China Manufacturer ZX7040B ZX7040B1 Gear Head Auto-Feed Drilling & Milling Machine
Basic Info.
Model NO.
ZX7040B ZX7040B1
Structure
Mill Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001, CO
Condition
New
Drilling Capacity
40mm
Face Milling Capacity
80mm
End Milling Capacity
22mm
Spindle Travel
110mm
Spindle Taper
Mt4 or R8
Spindle Motor
1.1 kw
Product
China Manufacturer ZX7040B ZX7040B1 Gear Head Auto
Diameter of column(mm)
115mm
Max. Distance spindle nose to table (mm)
450mm
Spindle speeds range (r/min)
50~1250/50~2500
Spindle speeds series
6/12
Spindle feeds(mm/r)
0.12 0.18 0.25
Dimension of worktable surface (mm)
Standard : 730x210 select: 820x240mm
Dimension of base(mm)
605x400
Table travel (mm)
Standard :450×170 select: 540x170
Transport Package
Plywood Case
Specification
97X77X116CM
Trademark
Luzhong Machine Tool
Origin
China
HS Code
8459590000
Production Capacity
500 Sets Per Month
Product Description
China Manufacturer ZX7040B ZX7040B1 Gear Head Auto-Feed Drilling & Milling MachineProduct Description
Detailed Photos
Product Parameters
The main performance characteristics:
Reinforced type gear, transmission torque large
B1 type optional 2-speed motor, spindle speed range widely.
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Product main technical Specifications:
| Specifications | ZX7040B/ZX7040B1 |
| Max. Drilling capacity (mm) | cast iron:40/ Steel:32 |
| Max. face mill capacity (mm) | 80 |
| Diameter of vertical milling (mm) | 22 |
| Diameter of column(mm) | 115 |
| Spindle travel (mm) | 110 |
| Distance spindle axis to column generating line (mm) | 261.5 |
| Max. Distance spindle nose to table (mm) | 450 |
| Spindle taper | MT4 orR8 |
| Spindle speeds range (r/min) | 50~1250/50~2500 |
| Spindle speeds series | 6/12 |
| Spindle feeds(mm/r) | 0.12 0.18 0.25 |
| Dimension of worktable surface (mm) | Standard : 730x210 select: 820x240 |
| Table travel (mm) | Standard :450×170 select: 540x170 |
| Dimension of base(mm) | 605x400 |
| Overall height (mm) | 1100 |
| Main motor (W) | Single-phase:1100 Three-phase: 1500 |
| G.W/N.W(Kg) | 390/350 |
| Packing dimension (cm) | 97×77×116 |
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
