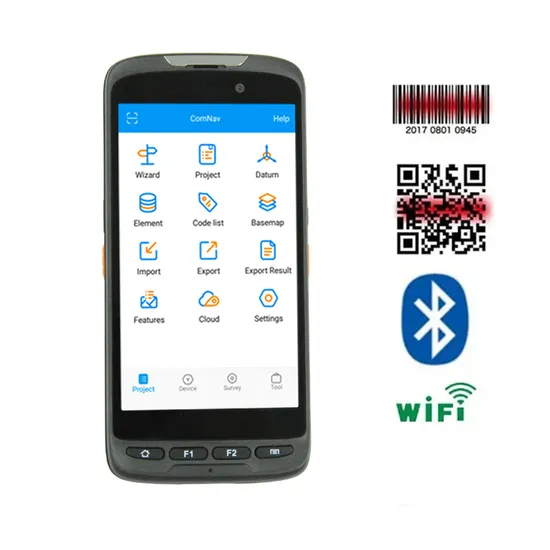

1d 2D Barcode Scanner Handheld Industrial Rugged Tablet Android 11 Data Collectors Industrial PDA Ht50c
Basic Info.
Model NO.
HT50C
OS
Android 11
Memory Capacity
RAM 4GB+ROM 64GB
Applications
Industrial Grade PDA
CPU Type
Qualcomm(Octa Core), 2.0GHz
Internet Connection
Built in Modem
Classification
Bar-code Scanner
Expansion Slot
Mini SD Card (Utmost Support 32g), Micro SD Slot
Display
5.0′ Mipi Interface, HD_IPS (HD720 X 1280)
Touch Panel
Industrial Touch Screen (Support Glove Touch)
Camera
13MP Autofocus with LED Fill Light
Battery
3.85V/4000mAh Lithium Polymer Battery
Audio Frequency
Built-in Microphone
Vibration Motor
Built-in Programmable Vibration Motor
Product Weight
260g
4G
Support
Barcode Scanner
1d 2D
RFID
13.56 MHz, ISO14443A/14443b/15693
GPS
a-GPS
Transport Package
General Packing
Specification
157.4*74.6*24.2mm
Trademark
HCCTG
Origin
Made in China
Production Capacity
10000 PCS / Month
Product Description
1D 2D Barcode Scanner Handheld Industrial Rugged Tablet Android 11 Data Collectors Industrial PDA HT50C Product DescriptionFunctions:
• Support for Android 11 system
• Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes
• Equipped with 4000mAh large capacity battery, the machine has a endurance of 10 hours
• IP65 high protection level, in accordance with MIL-STD-810G
• Support GPS, Glonass, Beidou(G+G+B), more accurate positioning
• Support front 5 million and rear 13 million pixel auto focus camera
• 2D, NFC and other functional modules to meet the application needs of multiple industries
Specification
| Dimension | 157.4*74.6*24.2mm |
| Weight | 260g |
| Product Color | Black |
| CPU | MT6762 (8core) 4*A53 2.0GHz 4*A53 1.5GHz |
| GPU | IMG GE8320 650MHz |
| Memory | RAM:LPDDR4X up to 4GB(dual channels with 16-bit data bus width) ROM:64GB EMMC |
| Operating System | Andriod11 Optional :GMS |
| Display | Type:IPS Size:5 inch 16:9 Resolution:720*1280 Brightness:350 Nit |
| Touch Pannel | 5 points Capacitive,G+FF |
| Camera | Front:5MP Rear:13.0MP, automatic focusing with astigmatism,PDAF support |
| Buttons | Power *1 Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1 Home Key *1 Barcode scanning (left and right)*2 Menu*1 Back*1 Custom*2 |
| Speaker | Embedded 8Ω/1W;speaker x 1 |
| Microphone | Sensitivity: -42db, Output Impedance:2.2kΩ |
| Senssors | G_sensor *1 Geomagnetic sensor *1 Ggyroscope *1 Light Sensor *1 |
| Battery | Built-in 3.8V/4000mAh Removable Lithium-ion polymer battery 10.5hrs (50% volume sounds, 50% screen brightness,1080P HD video display by default) |
| WIFI | WIFI 802.11(a/b/g/n/ac) ,Frequency 2.4G+5G dual band WIFI,Support AP seamless roaming |
| Bluetooth | BT5.0(BLE) |
| 4G | GSM(B2/3/5/8)+WCDMA(B1/B2/5/8)+TDS(B34/B39)+FDD(B1/2/3/4/5/7/8/13/17/20/28AB)+TDD(B38/39/40/41) |
| GPS | Support GPS,Glonass,beidou(G+G+B) |
| I/O Interface | USB Type C *1,OTG (Data transmission) |
| 3.5mm standard earphone jack x1 (US) | |
| SIM card *1 | |
| TF card *1 (SDHC/SDXC supported), Max:128GB | |
| Pogo Pin (Base Charge) *1 | |
| Adapter | EU Standard DC 5V/2A |
| USB cable | USB Type C |
| Rugged Features | Drop height:1.2m Composite wood floor working |
| Working temperature: -10 °C to 50 °C | |
| Storage temperature: -20 °C to 60 °C | |
| Humidity:95% Non-Condensing | |
| Certification | IP65 Report: Water resistance:IP-X5 Dust resistance:IP-6X Report ID no.:SET2015-07677 a.Inner Nozzle diameter;6.3mm; b. water speed:12.5±0.625L/min; c. Water Pressure:adjust according to water volumn; d.Central part of water volumn e.Spray time in surface of panel:about 1min;f.test time:at least 3min; g.distance between nozzle and panel surface:2.5~3m After test,there is no water leakage in sample. |
| Data Collection | 2D Barcode Scanner;Zebra4710 |
| Accessories | Hand-strap (Standard) |
| 5V2A Adapter (Standard) | |
| Docking Charger (Optional) | |
| Vehicle Mount (Optional) | |
| Removable Battery (Optional) |
