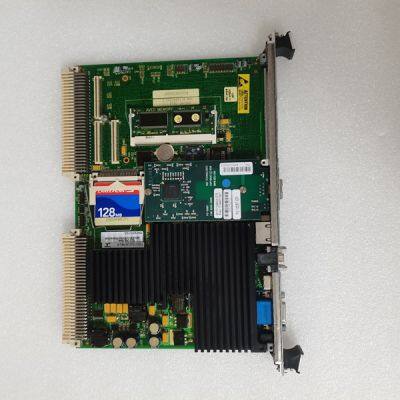

IS215UCVEM01A IS215UCVEH2AF

Product Details

Product Description

Product Description
Brand:GE
Type:IS215UCVEM01A IS215UCVEH2AF
Origin:the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
These controls are available for forward- or reverse-acting applications, and for use with either single or tandem actuators. Models for three different actuator current ranges are available, as well as a high-voltage model (90 to 150 Vdc or 88 to 132 Vac, 45 to 440 Hz), and a low-voltage model (20 to 40 Vdc). The high voltage model is identified as such on the front; the low voltage model is not. In reverse-acting systems, the actuator calls for more fuel when the actuator voltage decreases. Complete loss of voltage to the actuator will drive the actuator to full fuel. This allows a backup mechanical ballhead governor to take control rather than shut down the prime mover as would a direct-acting system. An optional deceleration ramp is also offered. When this option is present, the time to ramp from rated speed to idle speed is approximately 20 seconds. If this option is not present, this happens instantly. Tables 1-1 and 1-2 show part numbers and features of all 9905/9907 series 2301A load sharing and speed controls. External wiring connections for reverse-acting controls are identical to those for direct-acting controls. The relationship between prime mover speed and sensor output frequency is expressed in the formula: Sensor Frequency in Hz equals the number of teeth on the speed sensing gear times the rated prime mover speed in revolutions per minute divided by 60. Application engineers from Woodward or any of its authorized distributors or agents are always available to assist you in selection of the correct control for your system, or to answer questions concerning control installation, operation, or calibration. See Chapter 6 for contact information. References The following publications contain additional product or installation information on Load Sharing and Speed Controls, and related components. They are available on the Woodward website (/ic). technical manual title 25070 Electronic Governor Installation Guide 26260 Governing Fundamentals and Power Management 82384 SPM-A Synchronizer 9905-002 82510 Magnetic Pickups & Proximity Switches for Electronic Controls 82715 Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules product specification title 82383 SPM-A Synchronizer 82390 2301A Load Sharing and Speed Controls (9905 Series) 82516 EG3P/6P/10P Actuator 82575 EGB1P/2P Governor/Actuator
