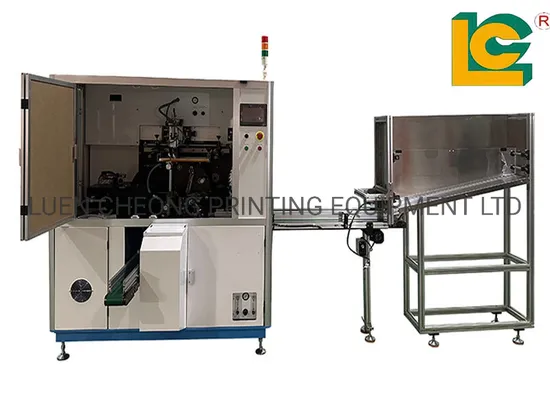

Hot Selling Full Servo Automatic Test Tube Serigraphy Printing Machine with UV System
| US$26,000.00-28,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LC-SU109UV
Type
Automatic Screen Printing Machine
Style
Screen-process Printing Press
Structure
Rotary Printing Press
Color & Page
Multi-Colour Printing Press
Application
Plastic Bottle Printing
Print Interface
USB2.0
System Supported
Windowsxp32
Key Words
Silk Screen Printing
Weight
1000kg
Service
Free Mend for Three Year
Operation
Operation
Transport Package
Wooden Case
Specification
CE AND ISO-9001-2000
Trademark
LC
Origin
China(Guangdong)
HS Code
8443198000
Production Capacity
50
Packaging & Delivery
Package Size
195.00cm * 180.00cm * 220.00cm
Package Gross Weight
1000.000kg
Product Description
Hot Selling Full Servo Automatic Test Tube Serigraphy Printing Machine with UV System| Model Number | LC-SU109UV |
| Max printing speed | 3600 pcs/hour |
| Printing area | 220 mm x 170 mm |
| Height for bottle | 20 mm < height < 200 mm |
| Diameter for bottle | 10 mm < diameter < 70 mm |
| UV Lamp Power | 5 KW |
| Main machine size | 1950 mm x 1800 mm x2200 mm |
| Machine cover area | 2600 mm x 3600 mm x 2200 mm |
| Machine weight | 1000 kg |
| Air supply | 5 to 7 bar |
| Air Consumption | 400 liter/min |
| Power supply | 380 V ,3 phase ,50Hz |
| Power consumption | 4.5 kw |
| Advantages: 1.Specially design for circular shaped applications such as tubes,caps,and injectionmolds bottles. 2.Servo optical fiber indexing system.It is possible to do multi-colors printing and overpint for some applications 3.The machine integrates automatic feeding device, flame treatment, automatic direction detect ice device and UV curing system and so on 4. It combines mechanical driven with pneumatic driven, and LED display. The maximun printing capacity of the machine is 6000pcs/hr. 5. This system is equipped with various warning devices such as low pressure and Overloading.The sensor can detect "no product,no printing". 6. The electrical components and control system adopt from Japan and Germany, ensure good printing quality 7. We provide machine design and construction services for special aplication Fitting: 1. One set fixture for the product 2. One screen frame 3. One operation manual. |
