Different Design, Food Grade Standard, Good Price Vertical Screw Pump

Different Design, Food Grade Standard, Good Price Vertical Screw Pump

US$1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
NV Vertical Pump
Screw Number
Single Screw Pump
Screw Suction Method
Single Suction
Pump Shaft Position
Horizontal
Performance
Wearable
Application
Sewerage Treatment, Food, Chemical
Certification
ISO
Capacity
30L/H-500m3/H
Pressure
2.4MPa
Model
Ng
Applicable
All Industries
Character
Low Pulsation
Advantage
Steady Uniform Flow
Transport Package
Export Wooden Case
Specification
wooden
Trademark
Z. NANCHI
Origin
Hangzhou, China
HS Code
8413604090
Production Capacity
5000pieces/Year

Product Description

Z.NANCHI single screw pump is applicable to almost all industries. It can transport almost all types of media continuously and stably, with low pulsation, no shear and speed proportional metering. It can pass through large particle solids.
We have a "WOLF TEAM":
More than 20 years technological research
Integrity, Standardization, and Efficient is our work principles
Winning the market with technology and innovation
Welcome to contact us, we are a professional group, let talk the details with you.
https://zjncpump.en.made-in-china.com/contact-info.html

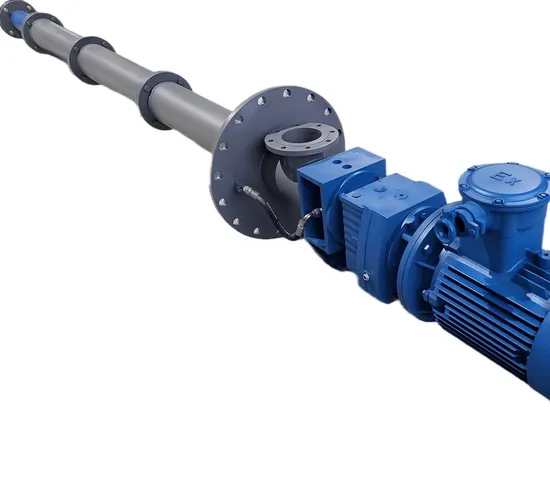

NV vertical pumpLifting ring mountingThe pump has a lifting ring that can be lifted by a crane. It is used to transport fluid in various containers such as barrels, containers, storage tanks, settling tanks, underground wells, pits, etc.The insertion depth can be customized
Flange mountingThe pump is equipped with a flange mounting plate installed on the top of the container to transport media from enclosed tanks, storage tanks, and boxes. Depending on the size, speed, and depth of the underwater working point of the pump, it can be fixed at the suction of the pump. The fixed point is self-centered and can be easily removed or re-installed.The insertion depth can be customized.
Wall mounting
This pump is often used for open collection tanks and is installed on the wall. Depending on the size, speed, and depth of the underwaterworking point of the pump, it can be fixed at the suction of the pump. The fixed point is self-centered and can be easily removed or re-installed.The insertion depth can be customized.
Here, Let's check the Components List Explosive View
101.Stator0017 Spring washer0068 Hexagon nut
105.Rotor0018 Hexagon nut1211 Suction chamber
1111 Bearing housing0043 Flat washer1221 Discharge body
1112 Connecting shaft0061 O-ring1301 Intermediate shaft
0011 Hexagon bolt0062 PTFE gasket1311 Bar
0012 Flat washer0063 Screw plug1312 Leg
0013 Spring washer0064 PTFE gasket1410 Seal components
0014 Hexagon nut0065 Screw plug1510 Universal joint parts
0015 Hexagon bolt0066 Flat washer1610 Reducer
0016 Flat washer0067 Spring washer1710 Motor

NV Vertical Pump
Any interesting , welcome to choose: https://zjncpump.en.made-in-china.com/product-list-1.html
ModelRated pressureSpeed r/min
238196156137110887056
QPQPQPQPQPQPQPQP
MPam³/hKWm³/hKWm³/hKWm³/hKWm³/hKWm³/hKWm³/hKWm³/hKW
NG0310.6
1.2
1.8
2.4		0.9
0.9
0.9
0.9		0.55
0.75
1.1
1.5		0.7
0.7
0.7
0.7		0.55
0.75
1.1
1.1
NG0380.6
1.2
1.8
2.4		1.6
1.6
1.6
1.6		0.75
1.5
2.2
3.0		1.0
1.2
1.2
1.2		0.55
1.1
1.5
2.2
NG0450.6
1.2
1.8
2.4		3.2
3.2
3.2
3.2		1.1
2.2
4.0
5.5		2.6
2.6
2.6
2.6		1.1
2.2
3.0
4.0		2.3
2.3
2.3
2.3		1.1
2.2
3.0
4.0
NG0530.6
1.2
1.8
2.4		6.5
6.5
6.5
6.5		3.0
5.5
7.5
11		5.2
5.2
5.2
5.2		2.2
4.0
5.5
7.5		4.8
4.8
4.8
4.8		2.2
4.0
5.5
7.5
NG0630.6
1.2
1.8
2.4		9.7
9.7
9.7
9.7		4.0
7.5
11
15		7.9
7.9
7.9
7.9		3.0
5.5
11
11		7.3
7.3
7.3
7.3		3.0
5.5
7.5
11
NG0760.6
1.2
1.8
2.4		13.4
13.4
13.4
13.4		5.5
11
15
18.5		10.9
10.9
10.9
10.9		4.0
7.5
11
15		10.1
10.1
10.1
10.1		4.0
7.5
11
15		7.4
7.4
7.4
7.4		3.0
5.5
7.5
11
NG0860.6
1.2
1.8
2.4		27.1
27.1
27.1
27.1		11
18.5
30
37		22
22
22
22		7.5
15
30
30		17.4
17.4
17.4
17.4		5.5
11
18.5
22		15.1
15.1
15.1
15.1		5.5
11
18.5
18.5		12.1
12.1
12.1
12.1		4.0
7.5
15
15
NG0900.6
1.2
1.8
2.4		38.8
38.8
38.8
38.8		11
18.5
37
45		31.5
31.5
31.5
31.5		11
15
30
37		24.9
24.9
24.9
24.9		7.5
15
22
30		21.6
21.6
21.6
21.6		7.5
15
18.5
30		17.4
17.4
17.4
17.4		5.5
11
15
22		13.7
13.7
13.7
13.7		4.0
11
15
18.5
NG1070.6
1.2
1.8
2.4		38.8
38.8
38.8
38.8		11
18.5
37
45		31.5
31.5
31.5
31.5		11
15
30
37		24.9
24.9
24.9
24.9		7.5
15
22
30		21.6
21.6
21.6
21.6		7.5
15
18.5
30		17.4
17.4
17.4
17.4		5.5
11
15
22		13.7
13.7
13.7
13.7		4.0
11
15
18.5
NG1360.6
1.2
1.8
2.4		54
54
58
58		15
30
55
75		44
44
47.5
47.5		15
30
45
55		35
35
37.8
37.8		11
22
37
45		30.4
30.432.9
32.9		11
18.5
30
45		24.4
24.4
26.4
26.4		7.5
15
30
30		19.3
19.3
20.9
20.9		7.5
15
18.5
30
NG1480.6
1.2
1.8
2.4		90.0
103.7
103.7
103.7		37
75
110
160		72.3
85.0
85.0
85.0		30
55
90
110		56.0
67.4
67.4
67.4		22
45
75
90		47.9
58.9
58.9
58.9		18.5
45
75
90		37.4
47.1
47.1
47.1		15
37
55
75		29.1
37.5
37.5
37.5		11
30
37
55		22.5
29.7
29.7
29.7		11
22
30
45
NG1680.6
1.2
1.8
2.4		163.4
176.4
176.4
176.4		55
132
200
250		133.0
144.8
144.8
144.8		45
110
160
200		104.5
114.8
114.8
114.8		37
75
110
160		90.6
100.5
100.5
100.5		30
75
110
132		71.9
80.4
80.4
80.4		30
55
90
110		56.7
64.1
64.1
64.1		22
45
75
90		44.6
50.8
50.8
50.8		15
37
55
75		35.2
40.5
40.5
40.5		15
30
45
55

Some processing
Packing : We use wooden boxes for packaging
More details, please contact us :https://zjncpump.en.made-in-china.com/contact-info.html
