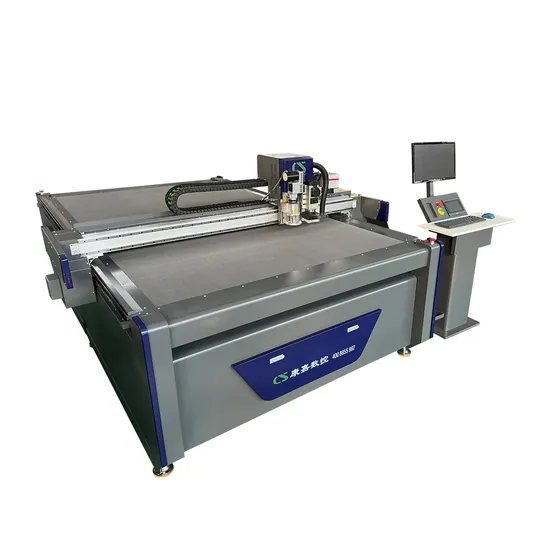

CNC Oscillating Knife Car Sticker Cardboard Box Cutting Machine Label Price

Product Description

Product Description
Detailed Photos
General description of the equipment body
The equipment sub-assembly and main core components are divided into the following parts: automatic cutting machine host,automatic type setting software, electronic control system, vacuum pump, linear guide rail, vibrating cutter head, driver, motor,gear rack,discharge rack, etc.
Mechanical frame part
1. The cutting table is a fully cast aluminum vacuum cavity aluminized plate socket drilling platform + high-density fiber felt
2. The main bracket is a welded steel structure Power drive part
1. The X and Y axes all adopt belt width transmission to meet the requirements of long-term cutting;
2. Use internationally renowned brushless servo motors and X-direction unidirectional motor drives to ensure equipment stability and cutting accuracy;
3. It has excellent continuous operation capability and can operate continuously 24 hours a day, 7 days a week, without shutting down for cooling;
4. Use a high-efficiency vacuum pump with strong power to prevent slipping during cutting. The vacuum pump is embedded in the cutting machine to reduce space occupation Product Parameters

Model	CTS-SL1615	CTS-SL1625	CTS-DT1625
Effective cutting area	1500*1600(L*W)	2500*1600(L*W)	2500*1600(L*W)
Operating mode	automatic	automatic	Semi-automatic
Voltage	110V/220V/380V±10%, 50HZ 60HZ	110V/220V/380V±10%, 50HZ 60HZ	110V/220V/380V±10%, 50HZ 60HZ
Cutting speed	max 1400mm/s (Elite version)	max 1400mm/s (Elite version)	max 1400mm/s (Elite version)
Cutting thickness	≤50mm	≤50mm	≤50mm
Power	9KW	9KW	9KW
Cutting accuracy	±0.1mm	±0.1mm	±0.1mm
Cutting Materials	Flexible Materials	Flexible Materials	Flexible Materials
Material fixation method	vacuum adsorption	vacuum adsorption	vacuum adsorption
Control system	LED touch screen	LED touch screen	LED touch screen
Transmission interface	USB /inernet port	USB /inernet port	USB /inernet port
Drive motor	Panasonic(Elite version)	Panasonic(Elite version)	Panasonic(Elite version)
Rail	PMI	PMI	PMI
Safety device	emergency stop button, infrared beam, anti-collision	emergency stop button, infrared beam, anti-collision	emergency stop button, infrared beam, anti-collision
Architecture	integrated framework	integrated framework	integrated framework

Application Suitable for cutting flexible materials, such as leather, textiles, clothing, fur, foam board, etc. It is also equipped with a milling cutter to better assist in cutting and trimming advertising KT boards,acrylic board cutting and trimming,engraving and cutting wooden boards, cutting and processing crystal glass, cutting and processing PTFE boards, cutting and processing various gaskets, and cutting and trimming cards.
Certifications
Company Profile
Packaging & Shipping
FAQ
Q: 1. How can I choose a suitable cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? 2)What's the largest size of original materials? 3)What's the thickness of materials? Q: 2. Can you design a machine for me depending on my requirements? A: Of course, we will discuss details with you and give you our professional suggestion for the machine ensure the machine could match all your requests with best cost performance. Q: 3. What should I do if the machine has any problem in future? A: We supply online technical support and door to door service. Anything confuse you, just contact us. Q: 4. What's the warranty policy? A:Standard warranty is 12 months upon delivery. Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period. Problems caused by wrong operate will also well-solved.
Q:5.What is the Price and payment terms? A:EXW,CIF,FOB we all can accept payment:TT/Paypay/LC/Western Union.etc Q: 6.What's the package? A: Film packaging+wooden case. Fumigation-free plywood case is also available.
