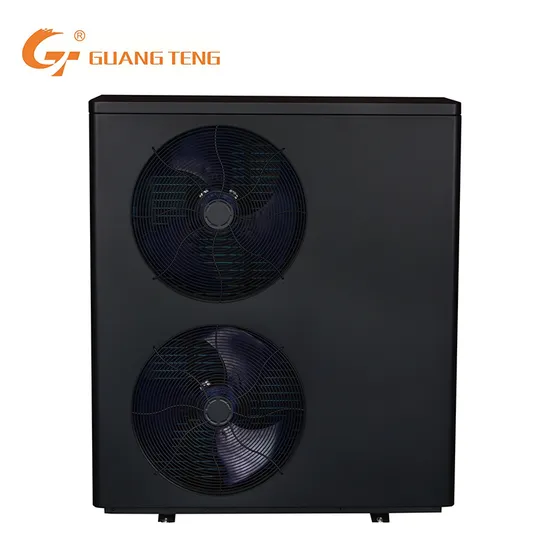

DC Inverter R32 Refrigerant Heat Pump ERP a+++ Air to Water 3 in 1 for Heating Cooling Domestic Hot Water High Efficiency Smart WiFi Control Sg Ready

Product Description

Product Parameters

Model		GT-SKR020KBDC-M32	GT-SKR030KBDC-M32	GT-SKR040KBDC-M32	GT-SKR050KBDC-M32
Heating at A7/W35
Heating capacity(min-max)	KW	6.80 (3.36-7.93)	9.00 (4.50-10.66)	12.80 (6.05-14.30)	17.00 (8.60-20.30)
Power input (min-max)	KW	1.62 (0.82-1.91)	2.05 (1.07-2.50)	2.97 (1.51-3.52)	3.86 (1.91-4.45)
COP	W/W	4.20 (3.3-5.4)	4.40 (3.3-5.3)	4.30 (3.2-5.2)	4.40 (3.3-5.5)
Heating at A2/W35
Heating capacity(min-max)	KW	6.25 (2.92-7.42)	8.32 (3.74-9.52)	11.80 (5.30-13.30)	15.70 (7.37-18.80)
Power input (min-max)	KW	1.60 (0.82-1.96)	2.03 (1.02-2.45)	2.95 (1.45-3.50)	3.84 (1.89-4.56)
COP	W/W	3.90 (2.3-4.6)	4.10 (2.4-4.6)	4.00 (2.2-4.4)	4.10 (2.4-4.8)
Cooling at A35/W7
Cooling capacity(min-max)	KW	5.00 (2.75-6.5)	6.50 (3.58-8.45)	10.20 (5.61-13.26)	12.90 (7.10-18.7)
Power input (min-max)	KW	1.78 (1.07-2.58)	2.28 (1.37-3.31)	3.64 (2.18-5.28)	4.45 (2.67-6.45)
EER	W/W	2.80 (2.4-3.15)	2.85 (2.45-3.15)	2.80 (2.4-3.10)	2.90 (2.45-3.20)
SCOP
SCOP (TWW FOR 35ºC)	N/A	4.48	4.57	4.69	4.67
Energy label (TWW at 35ºC)	N/A	A+++	A+++	A+++	A+++
Power supply	V/Ph/Hz	220-240/1/50	220-240/1/50	220-240/1/50	380-415/3/50
Compressor type	N/A	DC Inverter	DC Inverter	DC Inverter	DC Inverter
Fan type	N/A	DC	DC	DC	DC
Refrigerant	N/A	R32 (0.75kg)	R32 (1.8kg)	R32 (2.0kg)	R32 (2.2kg)
Refrigerant regulation	N/A	Electronic expansion valve
Heat exchanger type	N/A	Brazed plate heat exchanger
Water connection	Inch	1	1	1	1
Norminal water flow	m3/h	1.4	1.8	2.7	3.6
Operating outdoor temperature	ºC	-20~43	-20~43	-20~43	-20~43
Max heating temperature	ºC	60	60	60	60
Max DHW temperature	ºC	55	55	55	55
Min cooling water temperature	ºC	10	10	10	10
Sound level	dB (A)	52	54	56	56
Degree of protection	N/A	IPX4	IPX4	IPX4	IPX4
Net weight	kg	57	72	102	122
Dimension	mm	945*410*600	1010*410*795	1115*470*1020	1165*470*1280

Test condition:
1. A7/W35: outdoor air temperature 7ºC DB/6ºC WB, water inlet/outlet temperature 30ºC/35ºC
2. A2/W35: outdoor air temperature 2ºC DB/1ºC WB, water inlet/outlet temperature 30ºC/35ºC
3. A35/W7: outdoor air temperature 35ºC, water inlet/outlet temperature 12ºC/7ºC
How does an air-to-water heat pump work?
A heat pump takes energy from the outside air, even at very low temperatures, and transfers it into heat that is then circulated around a heating and hot water circuit. A heat pump uses electricity to power a compressor that boosts the temperature of the water so that is hot enough to warm your home through under-floor heating or radiators as well as fulfill your hot water needs.
What are the main benefits of heating with heat pumps?
Heat pumps extract up to 70% of their energy freely from the air meaning they only use a fraction of the electricity other systems use. Heat pumps are up to 500% efficient, compared to a traditional boiler that is 92% efficient, so significant energy savings are made which reduces energy bills. Heat pumps are a renewable energy source so are a great option for households looking to reduce their carbon footprint. Ideal for off-gas areas as users will see considerable running cost savings against oil boilers. Heat pumps don't use any fossil fuels or generate any fumes so won't affect the air quality in the local area. Maintenance is simple and low-cost. What size air source heat pump do I need for my house?
It depends on the difference between the outside temperature and the water temperature required to heat the house. A heat pump will use more electricity the bigger the gap between the outside temperature and the water temperature needed to heat the home. It will always be more efficient to use the lowest flow temperature possible as this reduces this difference. Contact an installer and get further information.
Can a heat pump heat a whole house?
Heat pumps are designed to cover the full thermal requirements of your home at a design temperature that is unique to the geographical area you live in. This will ensure that even in the coldest winters the heat pump will ensure the comfort of all occupants. Heat pumps can continue to provide their full capacity even at temperatures as low as -20ºC.
Hot Sale
Company Profile
FAQ Q1: What can you buy from us? A1: House heating/cooling heat pump, swimming pool heat pump, domestic hot water heat pump, commercial heat pump, etc.Q2: How about your delivery time?A2: Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q3: What are your terms of delivery?A3: Accepted Delivery Terms: FOB, CFR, CIF, EXW; Accepted Payment Type: T/T, L/C.Q4: What are your terms of packing?A4: Generally, we pack the heat pump in brown cartons or plywood. If you have a legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.Q5: What is your sample policy?A5: We accept the sample order, but the customers have to pay the sample cost and the courier cost.Q6: Do you test all your goods before delivery?A6: Yes, we have a 100% test before we pack the goods for delivery.Q7: How long is the guaranteed time?A7: 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period.
