Innovative Atc Wood CNC Router for Precision Wood Processing

Product Description

Product Parameters

Woking area	600*900*200mm or 600*900*500mm
Table style	Aluminum T-slot table with PVC
Table surface	Welded steel tube,cast iron vertical shafts and steel gantry
Spindle	3.0KW water cooling spindle
Spindle rotating speed	0-24000rpm
Collect size	ER20
Guide rail	Taiwan Hiwin linear square guide rail
Driving method	X,Y axis by helicia gear rack,Z axis by TBI ball screw
Motors and drivers	Stepper motor 450B and leadshine drivers MA860H
Control system	NCstudio control system
Invert	Fuling invert
Max.working speed	12m/min
Instruction formate	G code*.u00*.mmg*.plt
Woking voltage	AC220V/AC380V,single phase/3 phsae,50-60Hz
Standard software	Artcam 2010
Compatible software	Type3
Control Cabinet	Independent
Other	Tool sensor;Oiling system;Water pump;Tool Box,English manuals etc.
Optional parts	1)4.5kw water cooling spindle; 2)Rotary axis(80mm//100mm/150mm) diameter; 3)Mach3/DSP control system; 4)Dust collector; 5)Vacuum table with 5.5kw vacuum pump.

Our machine offers unparalleled customization capabilities, meticulously tailored to align with your precise specifications. This ensures an impeccable fit for your distinct needs, providing a solution that is as unique as your demands.
Product Description
The Wayne CNC router machine represents the apex of cutting-edge intelligent milling and cutting technology, brilliantly engineered to meet a diverse range of complex processing needs. Its unparalleled versatility makes it ideal for tasks such as routing, drilling, cutting, sawing, and slotting. With an advanced carousel tool magazine, which conveniently mounts beside the spindle or on the side of the fuselage, this machine excels at automatically switching tools to tackle numerous intricate operations effortlessly in one continuous cycle. Ideal for cutting, engraving, drilling, routing, grooving, and pocketing, it handles materials like wood, MDF, acrylic, PVC, plastic, foam, and more with exceptional precision and efficiency.
For enterprises with high production demands, the Wayne CNC router machine stands as the ultimate choice. It transcends the conventional manual tool-change methods with its self-sufficient tool magazine housing assorted tool bits. This CNC wood machine efficiently switches tools via computerized program control, maintaining uninterrupted operations and ensuring a seamless, continuous workflow.
1. Wood Processing: Perfectly suited for crafting exquisite furniture items such as doors, windows, cabinets, screens, and beyond. 2. Advertisement: Ideal for engraving and cutting a diverse array of labels and number plates with exceptional precision.
3. Art crafts: Expertly engraves characters from any language and intricate graphics on gifts and souvenirs, providing a unique personalized touch.
Main Feature
1. Z Axis Feeding Height: A generous 200mm offers enhanced depth and processing versatility.
2. Robust Construction: Boasts a square tube welded steel frame structure with an impressive 8mm thickness for unrivaled stability and durability.
3. Table Options: Select between an Aluminum T-slot table or a Vacuum table, each equipped with a powerful 5.5kw vacuum pump for optimal performance.
4. Precision Drives: The X axis features a rack and pinion drive, the Y axis employs a dual rack and pinion drive, and the Z axis utilizes a 2510 Ball screw, ensuring meticulous precision in movement.
5. High-Quality Rails: Incorporates Taiwan square rails PMI for the X, Y, and Z axes, delivering smooth and precise guidance for all operations.
6. Powerful Motors: Equipped with a 450B stepper motor and MA860H Leadshine driver or alternatively, an optional servo motor and driver for peak performance.
7. Efficient Cooling: Features a 3.0KW water cooling spindle and a 3.7kw Fuling inverter, with additional spindle options available to suit various needs.
8. Advanced Control Systems: Includes the Nc-Studio-5.4.49 control system, with user options for DSP or Mach 3 based on personal preference.
Options
1) 4.5kw water cooling spindle;
2) Options for a rotary axis with diameters of 80mm, 100mm, or 150mm;
3) Choice between Mach3 or DSP control systems;
4) Dust collector available for maintaining a clean, efficient workspace;
5) Vacuum table paired with a 5.5kw vacuum pump to ensure optimal material hold and processing efficiency.

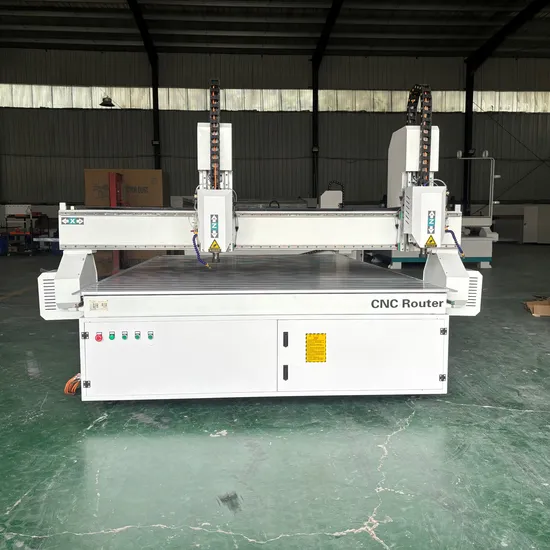

Detailed Photos
Packaging & Shipping
Company Profile
Liaocheng Wayne New Materials Co., Ltd. shines as a paragon of excellence in the dynamic realm of CNC Router and Laser Engraving & Cutting Machines. Ideally situated in Liaocheng city, Shandong, we boast a reputation for a broad spectrum of trailblazing products. Our extensive, state-of-the-art catalog features: Large-scale ATC Woodworking Router Machines, advanced 5-axis CNC Router Machines, specialized CNC Advertising Router Machines, precision CNC Marble Engraving Machines, robust CNC Plasma Cutting Machines, high-performance CNC Metal Mold Machines, versatile CNC Lathe Machines, efficient Swiss Type Lathe Machines, cutting-edge Fiber Laser Cutting Machines, versatile CO2 Laser Cutting Engraving Machines, precise Laser Marking Machines, and durable Laser Welding Machines, among others. By harnessing cutting-edge technology and premium quality, we are on a mission to forge the globally esteemed 'Wayne' brand. Trusted across more than 100 countries, including the United States, Germany, Indonesia, Canada, Australia, Russia, and extensively within Southeast Asia, we are setting new benchmarks in innovation and reliability.
Our core mission is to deliver unmatched service excellence to our esteemed clients. Whether you require standard models or bespoke configurations, we excel in crafting customized solutions. Our machines are meticulously built with components sourced from globally renowned suppliers, ensuring the pinnacle of quality and performance. Serving diverse industries, from woodworking and metal and stone work to aluminum fabrication and beyond, our products are indispensable to crafts and arts enterprises worldwide. Our dedicated and skilled after-sales service team, complemented by our proficient sales force and rigorous quality assurance standards, ensures that you can invest with absolute confidence. We extend a warm invitation to customers and potential partners around the globe to join us in a collaborative journey toward mutual success. With our commitment to 'Best Service, Best Quality, Best Price,' Wayne is your definitive choice. We enthusiastically look forward to partnering with you to create enhanced value. Your needs are our foremost priority-reach out, and let's explore the possibilities together. We are here, ready to engage with you.
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer with Laser machine and CNC lathe machine
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB Qingdao.
5. What's your payment term?
A: T/T OR L/C at sight.
