5 Axis Stone Slab Cutter for Marble Granite, Bridge Saw Machine Support 2D/3D File

Product Description

Product Parameters

Model	ZLBS-600CNC/5A	ZLBS-600CNC/5+1A	Unit
Worktable size	L3500*W2000	L3500*W2000	mm
Maximum Processing	L3500*W2000*H500	L3500*W2000*H500	mm
X.Y. Z-axis Transmission	X-axis adopts #30 Linear Guide Rail + helical rack and gear + Planetary reducer. Y-axis adopts #35 Linear Guide Rail + helical rack and gear + Planetary reducer. Z-axis adopts #35 Linear Guide Rail+ Ball screw+ Planetary reducer.	X-axis adopts #30 Linear Guide Rail + helical rack and gear + Planetary reducer. Y-axis adopts #35 Linear Guide Rail + helical rack and gear + Planetary reducer. Z-axis adopts #35 Linear Guide Rail+ Ball screw+ Planetary reducer.
C-axis	Head rotate 0°-360°, with Robot Reducer	Head rotate 0°-360°, with Robot Reducer
A-axis	Head tilt 0°-90° with Robot Reducer	Head tilt 0°-90° with Robot Reducer
Camera brand	Hikvison	Hikvison
Blade diameter	350-600mm	350-600mm	mm
Main motor	self-developed 5-axis special motor 22KW(permanet magnet motor with frequency)	self-developed 5-axis special motor 22KW(permanet magnet motor with frequency)
Control center	Options: 1.Self-developed CNC system for 5 Axis Bridge Saw Machine 2.ESA System from Italy	Options: 1.Self-developed CNC system for 5 Axis Bridge Saw Machine 2.ESA System from Italy
Driving motor	1.5kw Servo motor YUHAI Or ESA	1.5kw Servo motor YUHAI Or ESA
Main motor RPM	6000	6000	RPM
Main Spindle type	Can be put a drill	Can be put a drill
Electric Spindle for Milling Work (Optional)	Without	* Type: electric spindle * Rotating speed: 0-24000 rpm * Power: 5.5kw
Total power	30kw	35kw	kw
worktable flip	85°	85°
Water consumption	2	2	m³/h
Total weight	6	6	t

Product Description

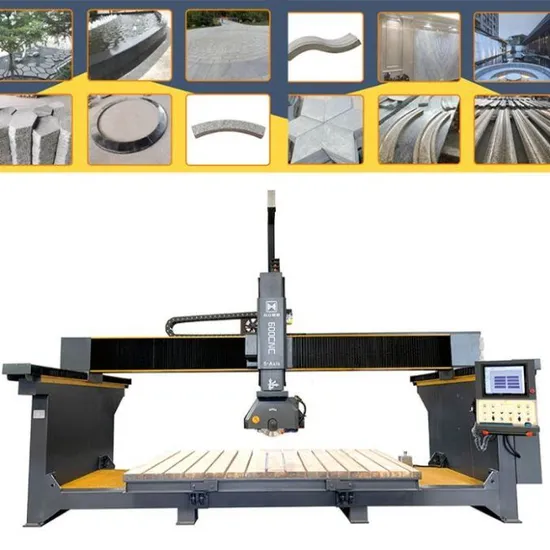

We supply 5 Axis CNC Bridge Saw for processing Marble, Granite, Quartz Stone, Ceramic, Porcelain, and other materials.
It's a fully Automatic Machine, after taking a picture and applying the design sketch to the system, the machinery will start working automatically. Operators can process various forms of Chamfering and 2/2.5/3D shaping, such as Arc line shaping and chamfering and Wave line shaping and chamfering, with the function of photo layout.
We provide OEM/ODM service.

Option: (System) 1. Self-developed CNC System with "Cut Cam" Software good for 2D and 2.5D production. 2. ESA hardware with Pegasus software good for 3D production.

Option: Chassis be hot-dip galvanized

Option: Add front sliding doors

Option: Worktable be faced with plastic plate and rubber

Product Features
1. 5-Axis Heavy-Duty CNC Machine

The machine is a 5-Axis heavy-duty CNC Bridge Saw Machine
It has conjoined structure, takes up less space, and is easy to install and move.
2. With a Camera to Locate the Position
This Machine equipt a high-precision camera to locate the position of the plate and display it in the cutting procedure
3. Working Head can Tilt 0~90 degree and Rotate 0~360 degree.
The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
4. Worktable Turnover 85°
This worktable can be flipped over 85° to load slabs easily.
6. Suction Cups are Equipped
The machine has Suction Cups to move slabs automatically.If the blade-cutting path conflicts, the suction cups can help.
7. Four-Side Chamfering with Range 3500X 2000mm

This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm.

8. 17" Color Touch-Screen
This Machine has an industrial computer and a 17" color touch-screen.

9. CNC System and Built-in Library
The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
10. With Automatic Tool Setting Gauge
An automatic tool setting gauge is equipped that automatically checks the blade.
11. 22-KW Permanent Magnet Motor
The (5+1)A type with a self-developed 22-KW permanent magnet motor, which can cut along with the thickness of the workpieces, automatically adjusting the output power, strength, is power-saving and environment-protective.
