2tph Crops Stalks Paddy Straw Bamboo Chips Wood Chips Rotary Drum Dryer

Product Description

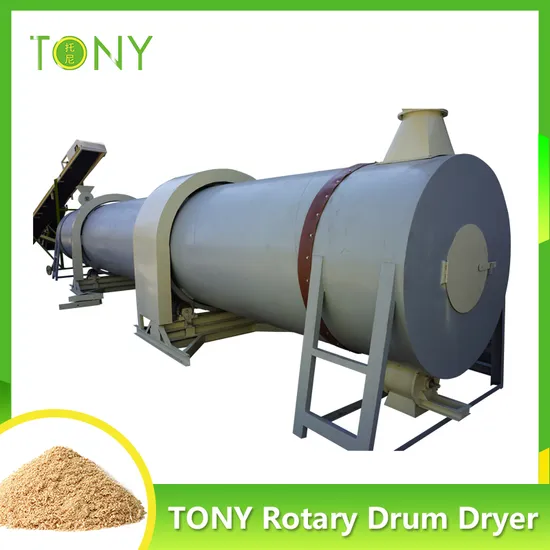

2TPH Crops Stalks Paddy Straw Bamboo Chips Wood Chip Rotary Drum Dryer
TONY Rotary Drum Dryer is a kind of equipment specially used for the treatment of sawdust, sawdust and other powdery wet materials, through the role of high temperature and drying medium to dry it to achieve the purpose of reducing the water content of the material.
TONY Rotary Drum Dryer adots low-speed rotarying curved plate hammering, dispersing raw material to make the high temperature air flow current mixed with raw materialto achieve the drying work. It mainly applied to drying process of all kinds of powerder raw material.
TONY Rotary Drum Dryer's evaporation capacity is generally 30-80kg/h, with the increase in air temperature increased, and with the nature of material changes in the water.
Equipment moves smooth, reliable, non-wearing parts, less malfunction, long service life, which have been widely used of the drying industry.
Working Principle
Component: Air heater with heat-exchanger, rotary-cylinder dryer, centrifugal shedder.
Scope: wet wood chips, wood sawdust etc.
TONY Rotary Drum Dryer is composed of stove, main rotary body,screw conveyor, cyclone separator, air-lock, fan and matched pipes which can realize to reduce the moisture from 45%-10%.
TONY Rotary Drum Dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the dryer is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.
Rotary dryer is mainly composed of heating device,feeding device, supporting device, cylinder, gears, discharging device and so on. Rotary dryer's main body is a rotary cylinder with a certain inclination, equipped with combustion chamber, exhaust device, dust collector, and feeding device. High-temperature flue gas is used as the drying medium, which enters the dryer under the suction of ventilation device

Wide Range Of Application
Product Characteristics
1. The material is highly dispersed in the air flow, and the total surface area of the particles is extremely dry and effective.
2. Efficient drying process greatly reduces the drying time of materials.
3. The design of the air dryer makes it simple in structure, easy to build and maintain, and occupies a small area.
4. When drying unbound water, the thermal efficiency can reach 60%, which can effectively handle a large number of materials.
5. Suitable for all kinds of sawdust, wood chips, EFB or other biomass raw materials. Rotary dryer is also widely used in cement, mining, construction, chemical, food, compound fertilizer and other industries of material drying.
6. The feeding and discharging devices are equipped with thermocouples to control the temperature of the dryer. The temperature change at the feed end of the dryer can be indicated by the thermometer to control the temperature in the dryer (generally 250-350 ° C).
7. Equipped with dust removal equipment to ensure that the exhaust meets the requirements of environmental protection and improve the cleanliness of the production workshop environment.
8. During the operation of the equipment, it can rotate smoothly, without violent vibration and noise, and can work continuously for a long time, reducing the downtime caused by equipment failure.
9. Explosion-proof function to prevent fire and explosion
10. Frequency conversion control input and output speed to ensure that the moisture in the dry wood chips is uniform and stable
11. Set up a firewall, which will prevent fire from entering the tumble dryer
Product Parameters

Model	Power(KW)	Evaporate (T/h)
THG10-12	4	02
THG12-12	5.5	0.3
THG15-12	7.5	0.5
THG15-24	11	0.8
THG18-12	11	0.7
THG18-24	15	1.2
THG20-12	18.5	0.9
THG20-24	22	1.5

Detailed Photos
Customer Case
Company Profile
After Sales Service
FAQ:
Q: What is a TONY Rotary Drum Dryer?
A: TONY Rotary Drum Dryer is used to dry wood chips, sawdust or other biomass from moisture 55% to 10%.
Q: What kind of materials can be dried?
A: Materials such as wood wastes, saw dust, corn cobs/straw/stalks, straw, switch grass, other grasses, distillers grain, paper, etc.Basically, most Biomass materials that can be ground down to sawdust form can be dried.
Q:What capacity would your prefer?
A:We supply different capacity from 1T/Hour up to 50T/Hour.
Q:Do you ship worldwide?
A: Yes. We have sent machines to Canada, Europe, Asia, Southeast Asia, Africa, South America,Ireland and Australia.
Q: lf l purchase a TONY Rotary Drum Dryer, will you show me how to operation the machine?
A: Yes, we do. We will instruct you how to use it via video or phone or engineer abroad if you need.
