Laminate Flooring High Quality Hot Pressed Machine From China Factory

Product Description

Laminate Flooring Production Line

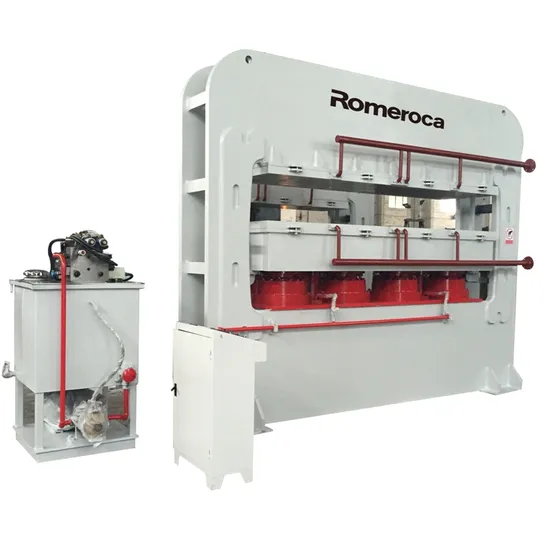

Hot Press Machine
Short-cycle hot pressing machine, mainly used for pressing laminate flooring and furniture board. Its function is to press the wear-resistant paper, decorative paper, and balance paper on the high density fiberboard together, by high temperature and high pressure.
Romeroca hot press machine adopts frame structure, equipped with frequency conversion speed control board entry trolley and board exit rolling bracket. The equipment adopts advanced PLC programmable control. It has the advantages of simple operation, convenient maintenance, high output, reasonable design, easy installation and small footprint.
Our press machine is same design as the German WEMHONER brand. Its efficiency is 15% -20% higher than others and has been used well in China and overseas market for over 20 years.
HOT PRESS MACHINE INFORMATION
Specifications of Laminate Flooring Hot Press Machine: Short-cycle hot press machine mainly has 4ft×8ft, 6ft×9ft, and also can customize according to customer's requirement. For producing laminate flooring, the most used is 4ft×8ft.

Serial number	Specification	Details
1	Pressure	20000kN
2	Laminated way	Double size
3	Loading direction	Horizontal
4	Power	~40kW
5	Size	2600×1400×160mm Upper hot platen 2600×1400×120mm Down hot platen
6	Day light opening	250mm
7	Main oil cylinder (Diameter X Stroke)	Φ360×250mm
8	Lifting cylinder (Diameter X Stroke)	Φ80×250mm
9	System working oil pressure	≤25Mpa
10	Hot platen temperature	≤210ºC
11	Heating medium	Hot oil
12	Loading speed	10~120m/min(Speed is adjustable)

Romeroca's some project cases in Global Market
2015- MDF Skirting Factory , Hanoi, Vietnam 2016- Laminate Flooring Factory , Hoa Binh,Vietnam 2017- Flooring Machine for Home legend , CA,USA2018- SPC Flooring Factory , Hanoi, Vietnam2018- Laminate Flooring Factory, Tabriz, Iran2019- New Click Innovation for Laminate Factory, Jubail, Saudi Arabia2019- SPC Flooring Factory, Son Tay, Vietnam2020- SPC Flooring Factory , Vinh Phuc, Vietnam
What is Laminate flooring?
Laminate flooring is composed by 4 materials : balance paper,hardwood HDF,decorative paper and overlay paper. It's made by crushing the logs, adding preservatives and additives, and pressing them with high temperature and high pressure by a hot press. Therefore, it breaks the physical structure of the logs and overcomes the weakness of poor log stability.It is installed with click system, which is very convenient for installation or removal. Laminate flooring is affordable, with many designs and colors, good wear resistance, easy care and convenient installation.

Full production processes of Laminate flooring
1. Boiler
Boiler supply heat to hot press machine by thermal oil.
Fuels for boiler are coal, natural gas, diesel, electricity.

2. Hot Pressing
Main size of hot press machine is 4'x8 ft, Press is 2800T.
We press the exquisite patterns on HDF board by stainless steel chroming plate.

3. Cooling Platform
When temperature of hot press machine reach 200ºC, can ensure decorative paper and overlay paper sticking onto HDF board tightly, so cooling platform is needed to cool down the flooring quickly and increase stability of flooring sizes.

4. Cutting
Use automatic multiple ripsaw to cut the big laminate board into the small planks of the required size.

5. Slotting
Through the longitudinal and transverse double-end tenoner slotting machine, four sides edges of the plank after cutting are processed into certain lock shape. The important thing is that need to choose the suitable click system and the perfect Polycrystalline diamond (PCD) click profiling cutters.

6.Dust Collection
During Cutting and slotting,will be heavy dust. Dust collection system can collect the dust and offering a cleaner floooring and work environment.

7.V-Groove Painting
In global market some customers prefer to the edges of Laminate flooring to be V-groove and painted. They think this kind of flooring looks nicer.

8. Wax Coating
Wax Coating machine is mainly used for wooden flooring by the paraffin wax. Through heating to form a low viscosity of liquid spray on the flooring.Because paraffin wax is white and non-toxic, it is very widely used. After processing, the products have the functions of preventing formaldehyde dissociation, preventing odor emanating, waterproof and moisture-proof, anti-aging, preventing moisture volatilization and lubrication.

9. Packing
Choose packing machine with different degrees of automation according to your needs, and there are fully automatic and semi-automatic machines can be optional.
Who we are ?
Romeroca is a professional flooring innovation and technical sevice company,
with 16 years experience in flooring industry, and over 10 years in Asian market.
We provide one-stop supply and services for overseas flooring factories,
including flooring production line, flooring raw materials, and technical services.
What we are offering about Laminate flooring project?
1.Laminate flooring full production line:
Laminate flooring Hot Press machine, Cooling line, Cutting machine,
Click slotting machine, Dust Collection machine, V-groove painting machine,
Wax coating machine, Packing machine.



2.Raw materials for producing Laminate flooring:
Overlay/Wear Layer Paper, Decorative Paper,Balance Paper.
Melamine paper ( after Impregnation) for all above.
To save shipping cost for our partners, Romeroca can mix different raw materials to ship together.



3.Spare parts for Laminate flooring manufacturing line:
PCD cutters, PCD saw blades, Cushion Pad ( Silicon& Cooper), Chroming Plate.
Romeroca can supply all kinds of accessories for all machines of laminate flooring production.



4.Test equipments for Laminate flooring factory:
Romeroca can supply all kinds of test equipments that laminate flooring manufacturing factory needs.
For example: Wear tester, Click Strengthen tester, Click Projector, and so on.
OUR SERVICES & AFTER SALES 1) 12-months warranty on all Romeroca machine (excluding wear parts).
2) 36-months tracking service, prompt response within 24 hours.
3) Providing factory production process and machine layout design.
4) Providing technical guidance, training and support.
5) Providing timely supply support for spare parts.
6) Other support from raw materials, machines to finished products.
