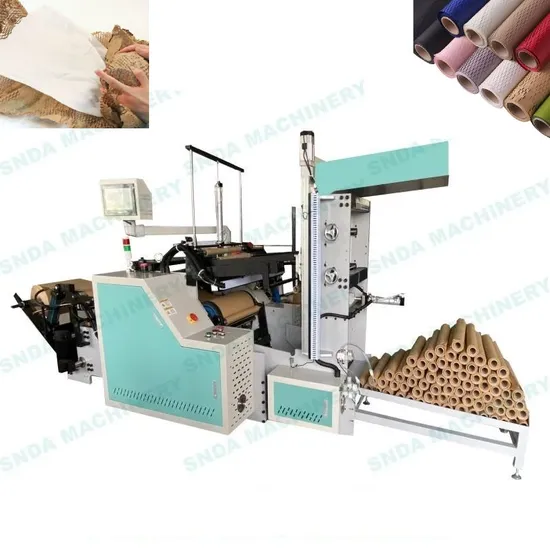

Eco-Friendly Fully Automatic Honeycomb Paper Machine
| US$32,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SD-PH600
Species
Rotary Die-Cutting Machine
Imprinting Type
Rotary
Placing Form of Template
Horizontal
Die Cutting Tool
Steel Blade
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials, Dust-proof Material, Retail
Voltage
380V 3 Phase
Power
5
Weight
2500kg
Certification
CE
Max.Width of Material
535mm
Max.Diameter of Roll
1200mm
Transport Package
Wooden Box
Specification
4800*1500*1800mm
Trademark
SNDA, OEM
Origin
Wenzhou, China
HS Code
8441100000
Production Capacity
30 Sets Per Month
Product Description
| Performance And Characteristics | |
| Application Honeycomb paper is eco-friendly and cost effective alternative for plastic bubble wrap cushioning.It is easy to stretch,more soft and flexible,provide cushion protect without surface scratch.Finished products from this machine can be used to pack fruits,flowers,ceramics, glassware,etc. Machine features 1. This machine is suitable for die cutting honeycomb paper,wrapping paper, shock-absorbing paper, kraft paper,fish net paper from 50g to 100g. 2. The unwinding,cutting and rewinding in one process. 3. Main motor equipped with Inverter for speed regulation. 4. Computer with PLC and servo motor controlled, touch screen 5. Main machine body with thicker iron plate 6. Tension controlled automatically by magnetic powder brake and clutch 7. Automatic meter counting device,automatically stop after it reaches the length you set. 8. Automatic finished roll changer inline(finished paper roll without shaft inside) 9. Automatic lifting system in unwinding with web guiding system Guarantee period and maintenance The guarantee period is one year after installation and adjustment. Buyer is responsible for the costs including maintenance and spare parts if the equipment damage is caused by the buyer's improper use, not caused by the seller's design and manufacturing .If buyer needs seller to send an engineer the installation and training. The buyer should cover the all of expense such as air-tickets, visa, accommodation and local traffic charges, salary(USD 150/day). Technical parameters | |
| Machine model | SD-PH600 |
| Max material width | 535mm |
| Machine working speed | 0-200m/min adjustable |
| Unwinding diameter | Max. 1200mm |
| Rewinding diameter | Max. 300mm |
| Unwinding roll weight | Max. 1 Ton |
| Unwinding shaft | 3" inflatable air shaft |
| Rewinding shaft | 1"/1.5"/2"/3" |
| Machine size | 4800*1500*1800mm (LxWxH) |
| Machine weight | 2500 KG |
| Machine power | 5 KW |
| Power supply | 380V 3 Phase |
