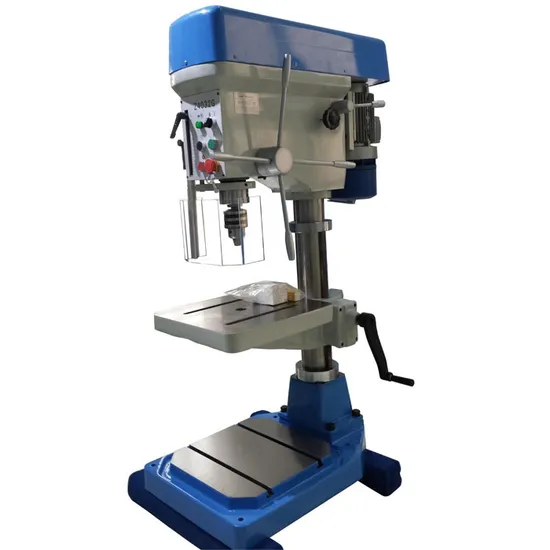

China Automatic Feeding Strong Bench Drilling Machine (Z4132G)
Basic Info.
Model NO.
Z4032G
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Electric
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Drilling Capacity (in Ms)
32mm
Max. Tapping Capacity (in Ms)
M24
Name
Strong Bench Drilling Machine(Z4032g)
Column Diameter
100mm
Spindle Travel
150mm
Table Size
380mm X 400mm
Base Size
645mm X 470mm
Motor Power
1.1kw (6 Poles)
Packing Size
1039X644X1512mm
Approx.Net Weight
230kgs
Transport Package
Plyw/Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Shandong
HS Code
8459290000
Production Capacity
800PCS/Month
Product Description
Automatic feeding Strong Bench Drilling (Z4032G)Product Description
Features:
1.Worktable can rise and down by rack/handle, 360° rotation, easy to operate and mechanical advantage.
2.Multi-functional, can use for drilling and tapping.
3.Belt adjust mechanism(by handle), easy and efficient.
4.Long spindle travel, wide machining range.
5.Spindle head, worktable, column and base use high quality casting processed by aging treatment, stability and durable in use.
6.Spindle, spline sleeve, gear shaft processed by heat treatment and hardened.
7.Reasonable structure, high rigidity, high strength.
8.With LED light, whole steel feeding handle, thicken base, more tronger.
9.These optional accessories can be ordered:
belt cover with door limit switch, multi-spindle attachment, DRO, Higher column etc.
Product Parameters
MODEL | Z4016G | Z4020G | Z4032G |
| Max. drilling capacity (in MS) | 16mm | 20mm | 32mm |
| Max. tapping capacity (In MS) | M10 | M16 | M24 |
| Column Diameter: | 70mm | 85mm | 100mm |
| Spindle travel | 100mm | 135mm | 150mm |
| Distance from spindle to column | 193mm | 260mm | 265mm |
| Distance from spindle to worktable | 330mm | 366mm | 390mm |
| Distance from spindle to base | 613mm | 678mm | 745mm |
| Spindle taper | MT2 | MT2 | MT3 |
| No. of Speeds , (RPM Range) | 5 , (480~4100) | 5 , (280~1875) | 5 , (280~1875) |
| Table size | 265mm x 285mm | 300mm x 320mm | 380mm x 400mm |
| Base Size: | 360mm x 480mm | 376mm x 566mm | 645mm x 470mm |
| Overall height | 1130mm | 1245mm | 1370mm |
| Motor power | 0.75KW (4 poles) | 0.75KW (6 poles) | 1.1KW (6 poles) |
| uni-techmachinery.en.made-in-china.com weight | 131,50kg | 179kg | 230kg |
| Packing size | 850x540x1282mm | 990x564x1402mm | 1039x644x1512mm |
Standard accessories:
--Drill chuck
--Chuck arbor
--Tool dismounting spanner
--Belt
--U-type chuck safety guard
--LED work light
--Steel material feed handle
Optional accessories:
--Vice
--DRO
--Higher column
--Auto-feeding
--Multi-spindles
Detailed Photos
Packaging & Shipping
