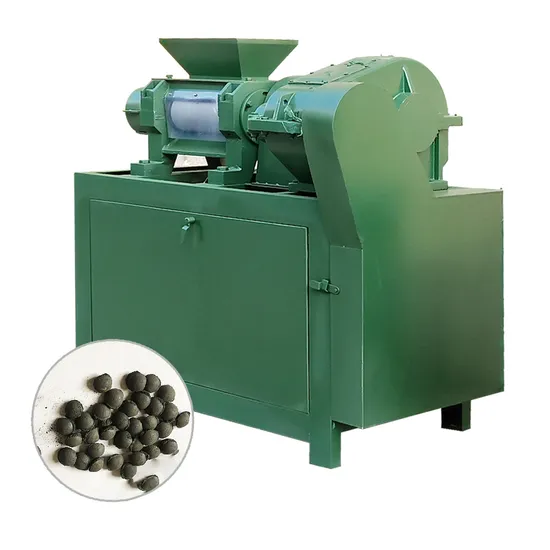

High Capacity NPK Fertilizer Granulating Machine Chicken Manure Organic Fertilizer Granulator for Sale

Product Description

Product introduction
This fertilizer granulator is a new type of granulator for organic fertilizer after many improvements on the basis of the traditional granulator for roller extrusion.It has advanced technology, reasonable design, compact structure, novel and practical, low energy consumption. It can form a small production line with the corresponding
equipment. It can form a certain capacity of continuous and mechanized production. Adopting healthy formula, no need for drying, normal temperature production, product rolling forming, make product quality meet the technical requirements of compound fertilizer, is used for the production of various crops high, medium and low concentration of special compound fertilizer and compound fertilizer industry energy saving and consumption reduction replacement products.
Performance characteristics
1.The kinetic energy transfer is increased to five slots triangle belt, which fully transfers the motor power and reduces the kinetic energy loss.
2.The reducer adopts the independent research and development design of our company, with high transmission efficiency and stable kinetic energy.
3.Design the feeding and stirring mechanism to ensure that the material can enter the roller die evenly and prevent the feeding mouth from blocking.
4.Both sides of the lower end of the roller skin mold are equipped with automatic cleaning scraper to prevent materials from sticking to the roller skin.
Main Technical Parameters:

Model	Power(kw)	Granule Diameter(mm)	Roller Sheet Size(mm)	Dimensions(mm)
TDJZ-1T	15	3-10	150*220	1450*800*1450
TDJZ-1.5T	22	3-10	150*300	1450*850*1500
TDJZ-2T	30	3-10	185*300	1630*850*1650
TDJZ-3T	37	3-10	300*300	1850*1100*2050

Working principle
This series of roller granulation belongs to extrusion sliding model, whose working principle is: the belt and belt pulley are driven by an electric motor, and transmitted to the drive shaft by reducer, and work in the same direction through the open gear and the passive shaft.The material is added from the feed hopper, extruded by the roller, demoded and pelleted, and passed through a pair of chains to the crushing screen studio, where the finished product pellets (balls) are screened and separated, and then the material is returned and mixed with new materials for granulation.With the continuous rotation of the motor and the continuous entry of materials, mass production can be realized.
Notice:
And we also have other fertilizer processing equipments,like compost turner,crushing equipments,mixing equipments,drying and cooling machines and auxiliary equipments.
The different BB fertilizer,organic fertilizer and compound fertilizer production line and water-soluble fertilizer fermentation equipment can be provided too.
Pre-sale Service:
1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
5.Free CAD design: if you can provide the material, your aim capacity and your factory information, we can make a free CAD design for you.
After-sales Service:
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.
Notice: 1.Big machines packed in nude or shipping in containers. 2. Spare parts packed in wooden case. 3. If you have any special requirement, we will pack as request.
FAQ:
1. Are you trading company or manufacturer ? We are a manufacturer with a history over 40 years and have realized one-stop service for design, manufacture, installation, debugging and technical training. 2. How long is the delivery time? For standard machines or Components, it would be 5-10 days; For non-standard machines and customized machines according to clients specific requirements, it would be appointment time. 3. Do you arrange shipment for the machines? Yes, we will do that. For FOB or CIF price, we will arrange shipment for you. For EXW price, we will assist you in arranging shipment. 4. How about your product after-sales service? Normally we provide video and written technical support. If necessary, our engineers can also provide on-site service. Our product accessories can be selected according to the actual needs of the customer to choose the most appropriate way to deliver. 5. What kinds of certificate you have? ISO 9001: 2015 SGS and we can make other certificates according to customers' detailed requirements. 6. How to guarantee the quality and operation before loading? We have our own quality control department and have advance quality control stystem while from raw materials to finished products. All the machines and production lines shall be 100% checked and tested before delivery.
