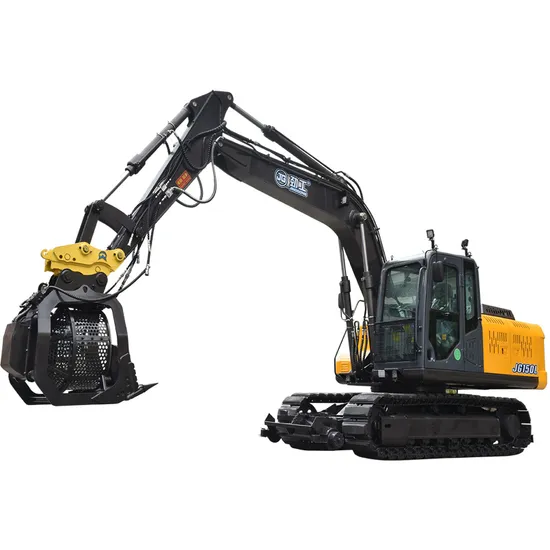

Hi-Rail Equipment for Ballast Maintenance Tracked Excavator with Sand Screening Machine
| US$55,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JG150LT
Type
Crawler Excavator
Usage
Special Excavator, GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
ISO9001: 2000
Condition
New
(Length*Width*Height) Travel Position
7500*2500*2920mm
Wheel Base
2850mm
Track Gauge
1960mm
Transport Package
Nude Packing
Specification
6100*2200*2650mm
Trademark
JingGong
Origin
China
HS Code
8429521200
Production Capacity
3000units/ Year
Product Description
1. It is suitable for tamping the complicated and difficult turnout section in line maintenance. The switch part, switch
connection part, switch and rail protection part can be tamped.
2. The machine is easy to operate, light weight, high efficiency and low failure rate, which can meet the needs of railway
ballast tamping operation.
3. Using high performance, high quality imported oil machine as the power, with stable output of large horsepower,
low fuel consumption, less lubrication oil consumption, small quality, low noise characteristics.
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3300mm | ||||||||
| Arm length | 1850mm | |||||||||
| Maimum digging force | 45KN | |||||||||
| Back-end radius of gyration | 1980mm | |||||||||
| SCREENING BUCKET ATTACHMENT | Max. bucket capacity | ≥0.25m³ | ||||||||
| Swing speed of bucket | ≥30r/min | |||||||||
| Maximum digging force | ≥45KN | |||||||||
| DIMENSION | (Length*width*height) travel position | 6100*2800*2650mm | ||||||||
| Roller gauge | 2600mm | |||||||||
| Track Gauge | 1570mm | |||||||||
| Width Of Crawler | 400mm | |||||||||
| Ground clearance of counterweight | 780mm | |||||||||
| Min ground clearance | 280mm | |||||||||
| TECHNICAL PARAMETERS | Applicable railway gauge | 1435mm(customizable) | ||||||||
| Angle of rotation | 360° | |||||||||
| Machine weight | 8000~8500kg | |||||||||
| Engine model | YUCHAI | |||||||||
| Rated Power | 48~62.5KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
