Hot Sale Table Top Plastic Injection Moulding Machine Price in China

Product Description

Product Description

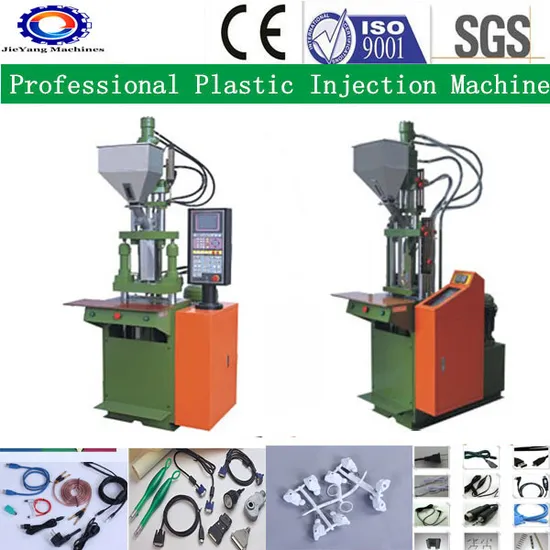

Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time,
it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools,
automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
Specification

Model	Unit	JY-450ST			JY-550ST
Screw Barrel Diameter	mm	30	32	34	32	35	42
Injection Pressure	kg/cm2	1171	996	820	1642	1385	960
Max. Shot Weight	gram	74	84	106	102	123	176
Max. Shot Weight	cm3/sec	62.5	71	95	49	59	84
Screw Barrel Route	mm	115			140
Screw Barrel Rotary Speed	rpm	0-190			0-175
Nozzle Contact Force	tons	4.45			5.5
Nozzle Retraction Nozzle	mm	190			210
Number of Temperature Control	pcs	3			3
Clamping Force	tons	45			55
Platen Size	mm	580*430			670*480
Distance Between Tie Bere	mm	410*250			470*280
Min. Mold Height	mm	220/70			270/70
Opening Stroke	mm	200			200
Max. Opening Mold Distance	mm	420/270			470/270
Ejetor Force	tons	1.76			1.76
Ejetor Stoke	mm	35			35
Max. Hydraulic Pressure	kg/cm2	140			140
Pump Output	L/min	37.2			40
Oil Resservoir Capacity	Liter	130			150
Cooling Water Consumption	L/hr	600-800			800-1000
Pump Motor Power	kw/hp	5.5/7.5HP			7.5/10HP
Barrel Heating Power	kw	2.8			4.5
Total Power	kw	9			12
Machine Weight	tons	1.8			3
Machine Dimension(LxWxH)	meter	1.7*1.2*3			1.85*1.2*3
Shipping Weight	tons	2			3.4
Shipping Measurements(LxWxH)	meter	1.82*1.18*2.16			2.0*1.15*2.6

Machine Drawings
Machine Details
Machine can produce All kind of power plug
Contact us
Company Profile
Dongguan JieYang Machinery Co., Ltd established on 2010, located in Xincheng Industrial Zone of Hengli Town.
Our factory is about 2,000 square meters. We have more than 20years manufacturing experiences of
vertical plastic injection molding machines with precision machining equipment & professional team.
We do our best to provide the solution with competitive cost to our customers and it is recognized by all our customers.
We warmly welcome you to visit our factory, we are waiting for you at JieYang!
Pre-Sales Service:
If you are not sure which machine is your best choice within budget, please provide the samples picture, size,
material and production capacity to us. We will offer you the best solutions and machines.
Technical consulting:
Any question about the machine selection, operation, production and so on,
please feel free to contact us and we will provide you reasonable budget and suggestion.
After-sale Service:
Training how to instal the machine, training how to use the machine. Engineers available to service machinery overseas.
Packing & Shipping
FAQ

1. Q: Are you manufacturer or trading company? A: We are a manufactures for vertical injection molding machine and all machines are made by ourselves.

2. Q: What's your guarantee or the warranty of the quality if we buy your machine A: We offer you high quality machines with high quality after-sale service. Also we have one year warranty of the spare parts, free of charge.

3.Q:Can you find the mold for us? A:We could find the mould factory to make mould for you.And then we could test the machine and mould for you.

4. Q:Can I be an agent in my market ? A: Welcome. We need talk details about the agent agreement .
