380V Low Temperature Hanging Noodle Producing Noodle Maker Machine
| US$50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GM350
Processing Material
Wheat Flour
Application
Food&Noodles
Customized
Customized
Certification
ISO9001
Power Source
Electric
Automatic Grade
Automatic
Model
350
Steam Consumption
400kg/H
Stick Noodle Length
240mm/200mm
Thickness
0.8mm~1mm
Transport Package
Wooden Case/Container
Specification
customized
Trademark
G-YOUNG
Origin
Zhengzhou, China
HS Code
84381000
Production Capacity
20 Sets Per Year
Product Description
380V Low Temperature Hanging Noodle Producing Noodle Maker Machine.Low temperature hanging noodle production line, the device uses frequency control, photoelectric tracking, PLC program control, To achieve a full range of synchronous coordination control. And the surface of the machine using oval-shaped pulp double-axis two-speed technology to add more water, material and moisture more uniform; curing machine using W-type double pot technology; rolling machine with 7-9 pairs of cold alloy roll, Arch dry low-temperature slow drying process, cutting section using pneumatic cutting technology (or automatic hob section technology),Is the ideal domestic production of noodles equipment.
Parameters:
| Model | Power | Steam consumption | Workshop dimension(m) | Workers | Workshop dimension(m) | Workers |
| 350 | 47KW | 400KG/H | 66*9*4.5(+3.5) | 5 | 40*7*4(+3.5) | 5 |
| 450 | 58 KW | 500 KG/H | 70*11*4.5(+3.5) | 6 | 50*8*4(+3.5) | 6 |
| 550 | 63 KW | 750 KG/H | 75*12*4.5(+3.5) | 8 | 65*9*4(+3.5) | 7 |
| 650 | 78 KW | 850 KG/H | 90*14*4.5(+3.5) | 8 | 65*10*4(+3.5) | 7 |
| 765 | 90 KW | 1000 KG/H | 115*16*4.5(+3.5) | 10 | 70*10*4.5(+3.5) | 8 |
| 850 | 98 KW | 1200 KG/H | 70*11*4.5(+3.5) | 9 | ||
| 1000 | 108 KW | 1400 KG/H | 70*12*4.5(+3.5) | 9 | ||
| 1500 | 300KW | 2000KG/H | 85*12*4.5(+3.5) | 9 | ||
| workers:( not including packaging workers ) | ||||||
| SPECIFICATIONS FOR 9 TON CAPACITY | |||
| Early part | Brine mixing machine and measuring device | Power: 0.75kw Motor power: 1.5 KW*2 volume:1000L | the surface touched with the water is SS, measuring device capacity 110 L,with liquid level showing,round tank body,SS,pump 0.75kw |
| Double speed flour mixing machine | Motor power: 9/11kw | 300kg/batch,door opening by manual, the surface touched with flour is Stainless Steel | |
| belt type Feeder | Motor:0.75kw (frequency conversion timing)+ 1.5KW | the surface touched with flour is SS | |
| Main part | SINGLE SHEET continuous press machine | Roller width 650mm, power 11kw+18.5kw (frequency conversion timing) | 10pairs of steel roller, twin wheel device to adjust the tickness of flour sheet, the Dia. of the roller isφ 395*1,300*2,248*2,216*2,180*2,162*1 |
| Bar feeding machine | Power2.2KW(frequency conversion timing) | the orderliness of two sides of noodle can be adjusted,length of noodle is adjustable | |
| Auto hanging device | Main driven 1.5kw(frequency conversion timing),the length of box is 16 meters,Single row, housing is SS. | Power from bar feeding machine,carbon steel frame | |
| Last part | Cutting and arranging machine | ZJQ65 | Power 1.1kw |

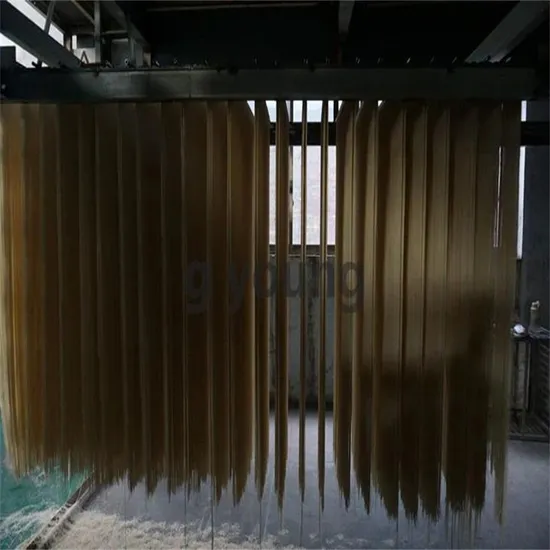

| Drying machine (moving horizontally) | Drying time ~4hours,main drive power 4kw(frequency conversion adjustment) power of industry fan~0.75kw*30 units | Drying fan 5.5 kw*2unit,fan 2.2kw*2 units,5 rows of bars,length~60m,ss hanging bars 5000 pcs. | |
| Auto cutting machine | The length of the noodle can be adjusted from 120~290mm | Power ~0.8kw | |
