China 2024 High Quality CE/ISO9001 Approved Factory Directly Sell Oil Drilling Equipment /Decanter Centrifuge/Waste Oil Centrifuge Separator

Product Description

Drilling Mud Decanter Centrifuge

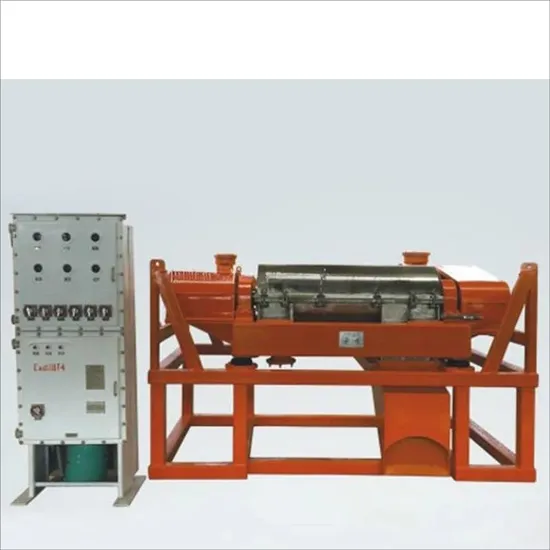

Shenzhou Large Capacity Oil Field Drilling Mud decanter Centrifuge
LWD series centrifuge is the main equipment of the drilling fluid solid control system, and is mainly used to maintain the drilling fluid, remove harmful fine particles in the drilling fluid, and improve the drilling fluid performance. In the meantime, it can be used to recycle the barite in weighted drilling liquid, save the drilling cost and reduce the expense of drilling cuttings in the later period.
LW series centrifuge provides 3 drive modes:
RFD and VFD, FHD
satisfied with many customers' choice !
FHD(Fully hydrauli drive) centrifuge is driven by fully hydraulic power.
As to RFD(rated frequency drive) centrifuge, the rotating bowl speed is fixed, so the speed can be changed only by changing drive pulley;
While VFD (variable frequency drive) centrifuge can achieve large-range stepless speed regulation easily with parameters displayed, e.g. speed and working current.
Shenzhou VFD intelligent frequency conversion centrifuge is controlled by PLC programming;drum speed can be steplessly adjusted within the design range; and the color explosion proof touch screen is designed on the control cabinet, which can display drum speed, working current, torque, main bearing temperature, whole machine vibration, differential speed and other parameters and alarm information; Intelligent control, easy operation, large processing capacity, good effect and low failure rate.
This Variable Frequency Controller Centrifuge is mainly used in applications where the mud density varies greatly and the working conditions are complex, and the operating parameters of the centrifuge need to be adjusted to achieve the desired treatment effect, such as shale gas wells, high temperature, and high-pressure wells, The recovery rate of barite can reach over 90%.
The Decanter Can Be Used In Various Applications Relating To Drilling Mud ★ Separation of drilling emulsions
★ Processing of drilling slurry
★ Processing of drilling muds Drilling Centrifuge Introduction
Centrifuge Constructuon
This centrifuge is a countercurrent horizontal spiral discharge sedimentation centrifuge. The main components include a column-conical drum, a spiral discharge device, a differential speed system, a bearing seat, a machine base, a cover shell, main and auxiliary motors, and an electrical system.
Working Principle
The suspension enters the drum through the feed pipe and the spiral discharge outlet. Under the action of centrifugal force generated by high-speed rotation, the solid-phase particles with higher density settle on the inner wall of the drum. The spiral blades, which have relative motion with the drum, continuously scrape off and push out the solid-phase particles deposited on the inner wall of the drum through the slag discharge outlet. The separated clear liquid flows out of the drum through the opening of the liquid layer adjusting plate. The relative motion between the spiral and the drum, i.e., the differential speed, is achieved through the differential speed controller, the size of which is controlled by the auxiliary motor. The housing of the differential speed controller is connected to the drum, the output shaft is connected to the spiral body, and the input shaft is connected to the auxiliary motor. The main motor drives the rotation of the drum, which also drives the rotation of the housing of the differential speed controller. The auxiliary motor controls the speed of the input shaft of the differential speed controller through a coupling, allowing the differential speed controller to transmit torque to the spiral at a certain speed ratio, thereby realizing the continuous separation process of the centrifuge for materials.
Technical Specifications & Advantages
Model LW250 × 1025 LW355 × 1435 LW450 × 1350 LW450 × 1670 LW550 × 1900

Drive Type	VFD Intelligent Variable Frequency
Drum Inner Diameter (mm)	250	355	450	450	550
Drum Working Length (mm)	1025	1435	1350	1670	1900
Maximum Drum Speed (r/min)	5000	4000	3400	3400	3000
Drum Working Speed (r/min)	≤ 4800	≤ 3400	≤ 3200	≤ 3200	≤ 2800
G-Force	≤ 3225	≤ 2298	≤ 2580	≤ 2580	≤ 2415
Pusher Differential Speed (r/min)	≤ 50
Max. Capacity (m3/h)	10	40	60	60	70
Rated Power (kW) (Main Motor)	11 kW	37 kW	45 kW	45 kW	75 kW
Rated Speed (r/min) (Main Motor)	2970 r/min
Rated Power (kW) (Auxiliary Motor)	5.5 kW	11 kW	15 kW	18.5 kW	22 kW
Rated Speed (r/min) (Auxiliary Motor)	2900 r / min	1470 r / min	1470 r / min	1470 r / min	1470 r / min
Feeding Pump Model	Screw Pumps or Centrifugal Pumps
L * W * H (mm)	2480 × 800 × 1675	3400 × 1550 × 1780	3410 × 1645 × 1270	3945 × 1735 × 1270	4400 × 1470 × 1390
Weight (kg)	2500	4000	5000	5400	6400

Protection Level: IP56
Anti-explosion Level : Ex IIGbcIIBT4
Insulation grade: F
Working Noise Level: ≤86dB(A)
Idle Vibration Intensity: ≤7.5mm/s
Operating : 24 hours continuous operation
Design life of the main bearings: 50,000 hours
Design life of tungsten carbide hard alloy: 10,000 hours
Design life of the centrifuge: years :20
Drilling Processing Flow
Your Advantages In Processing Drilling Mud and Emulsions: · Reduction in disposal costs
· Reduction in the quantity of sludge in the closed system
· Cost saving of up to 60% for maintenance and upkeep 60%
· Reduction in wear
· Extended sludge service life
