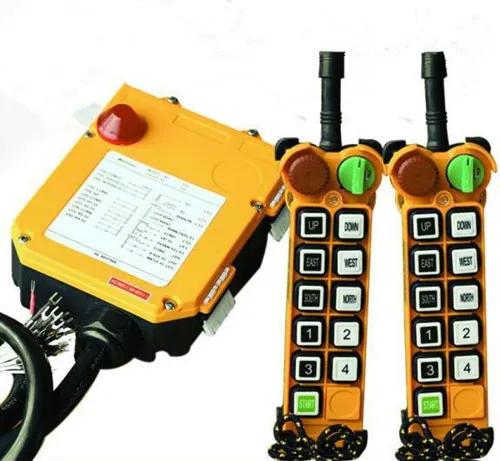

F24-10s/D 433MHz Industrial Wireless Remote Control for Bridge Cranes

Product Description

F24-10S/D 433Mhz Industrial Wireless Remote Control for Bridge cranes


Summary:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.


Products Application:
MD double speed electric hoist or double speed electric chain hoist with hook,monorails ,double hook /single speed hoist crane, and used for the industrial remote control which are under16 connections.


Brief Introduction:
Transmitter size: 239*65* 65mm weight:255g
Receiver size: 200*165*107mm weight:1200g


SPECIFICATION:

Application	Overhead cranes, hoist ,chain hoist and other industrial machine.
Frequency	310.0325~331.165Mhz
Frequency generation:	Crystal (plug in)
Channel	80
Channel Spacing	0.2675MHz
Control motions	10/16
Control distance	Up to 100m
Certificates	CE, FCC, ISO9001:2008
Number of push button	10 Single/Double speed push button+1 start+1 Emergency stop button.
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C ~ +80°C
Enclosure protection class	IP65
Transmitter power	AA-size batteries
Receiver power	AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
Output capacity	Full sealed relay output with 5 amperes
Warranty	1 year
Material	glass fiber

Standard configuration:
One transmitter;
One receiver;
One 1m cable connect with receiver;
One operation and maintain manual.


Products Features:
* 10 Single/Dual speed push button+1start button+1 Emergency stop button.
* Control points are up to 10/16.
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* With the Rotate key switch to guarantee the safety.
* Set the internal functions by computer interface.
* Up/down, east/west, south/ north push button can be set mutual inhibition or not.
* Power button can be set start, speed up, jump strokes, ordinary etc.
* Spare 1-2, 3-4 key can be set ordinary, interlock, jump strokes, switch etc.
