Puffed Aquatic Fresh Water Catfish Koi Floating Fish Feed Pellet Formulation and Production Solution Processing Line Machine

Product Description

Puffed Aquatic Floating Fish Feed Pellet Processing Line Machine
1. Expanded fish feed processing line introduction
Expanded fish feed processing line is mainly made up with raw materials treatment system, extrusion system, drying system, flavoring system and controlling system. It has high stability and automatic performance, which offers the possibility to control the expansion of the extrudate through various means to control the texture of the final product.
This line's core technology is co-rotating twin-screw extrusion. Twin-screw extruder is the core of this line, enabling the continuous production of expanded fish feed.
2. Processing line description
2.1 Flow chart: raw materials→ extrusion→ drying→ flavoring→ cooling→ packing
2.2 Processing line features
2.2.1 High work efficiency, automation degree, materials usage, application range.
2.2.2 Low land occupation, power consumption, labor cost, waste rate.
2.2.3 Various configurations and capacity choices.
2.2.4 This processing line can make both floating and sinking fish feed. It can make pet food as well.
2.2.5 Production factors can be quantified and controlled.
2.2.6 World-class food grade fittings.
2.2.7 All machines and fittings can be custom-made. ODM/OEM is available.
2.2.8 Professional pre-sale, sale and after-sale service.
2.3 Processing line parameters

Type	Model	Capacity (kg/h)	Installed Power (kw)	Actual Power (kw)
Dry Type	TSE65-P	100-150	74	52
	TSE70-P	200-250	105	75
	TSE85-P	300-500	205	150
Wet Type	TSE90-P	800-1000	132	80
	TSE95-P	1000-1500	165	106
	TSE120-P	2000-2500	226	140

2.4 Processing line machines pictures

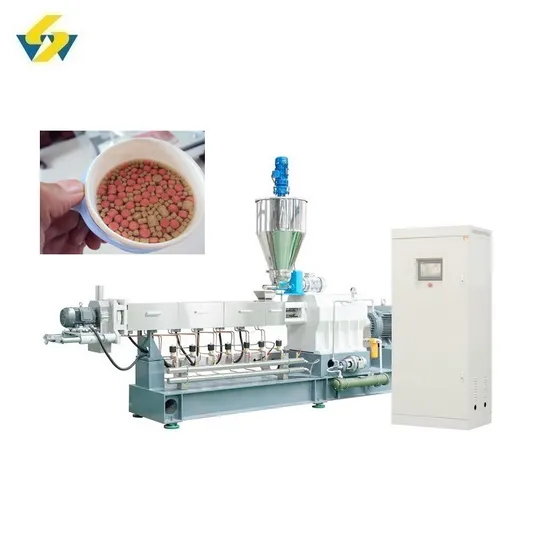

2.4.1 Series extruders
2.4.2 Series dryers
3. Expanded fish feed samples introduction
In order to meet modern fish farms development, most of modern fish feed is made by twin-screw (or single screw) extrusion production line, which is called expanded, extruded or puffed fish feed. Adopting cereals, vegetable proteins, vitamins, minerals, fish meal and fish oil as raw materials, and adopting dry-type or wet-type extrusion as manufacturing technique, expanded fish feed is made for both carnivorous and graminivorous fishes. Compared with traditional fish feed, expanded fish feed has the advantages: (1) easier feeding management (2) lower wastage rate (3) lower water contamination (4) higher feed nutritional ingredient use ratio (5) longer storage time. Expanded fish feed improves digestibility and refined the balance of nutrients to match the needs of the different species of fish more precisely at different periods of development. At the same time, expanded fish feed improves the sustainability of the ingredients used. Based on the advantages, expanded fish feed will replace traditional fish feed in the future.
4. Packing and delivery
4.1 Packed by plastic protective film or wooden case, which is seaworthy.
4.2 We can supply fumigation package and certificate.
5. Service
5.1 1 year warranty period.
5.2 Supply free fittings and general tool.
5.3 Engineers available to service machinery overseas.
5.4 Supply formula of raw materials.
5.5 Workshop design suggestion.
6. Company introduction
Jinan Sunward Machinery Co., Ltd. is Chinese leading expanded food machinery manufacturer in China.
We can design and manufacturer the machines to make expanded food for human and animals.
So far, we have 3 factories, which covers 5000 square meters. We have ISO9001:2008 & CE certificate, and pass SGS, BV & TüV inspections. We have exported our machines to more than 100 countries in the world and keep development.
