Made in China with CE, Euro 5 Engine (HQ735) Manitou Type Telehandler

Product Description

HAIQIN-TOP 3500kg Four Wheels Steering farm and construction site telescopic handler
1, HQ735 Telescopic handlers Features :

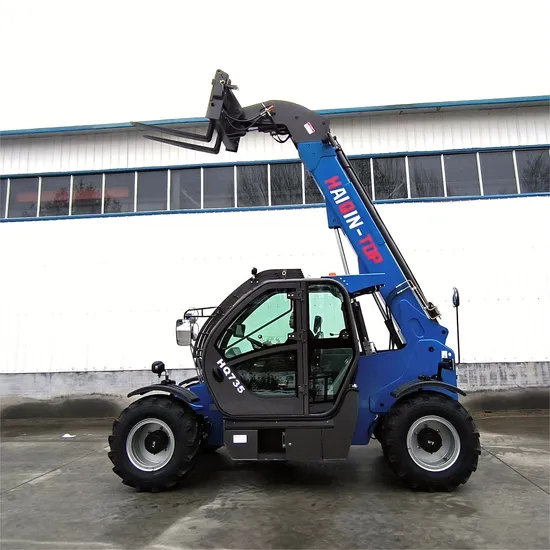

2, More photos of HQ735 Telehandler:
3,Details Specifications of telescopic forklift loader:
Engine : YUNNEI or YUCHAI YCD4T22T or CUMMINS-Engine 4BTA3.9-C100
Type : diesel with turbocharger
Power :78kW
Volume fuel tank:95 L
Volume hydraulic tank:70 L
Innings hydraulic pump:110 l/ min
Transmission:automatic transmission hydrodynamic (2 in front , 2 back),
brakes:Disc , pneumatic, hand brake
Speed movement:25 km /h
Wheels tires:16/70-20
Control boom , bucket:Joystick hydraulic
Steering control:swivel front steering wheels, swivel four steering wheels, crab ride
Dimensions ( LxWxH ):4670 x 2100 x 2340 mm
The weight:7500 kg
Maximum load capacity:3500 kg
Arrow:2- section
Time rise:4.5 - 9.5 sec
Height unloading ladle :6800 mm
Minimum radius turn:4250 mm

Warranty

15months

1,Telescopic arm material BS1000 special steel,which can be lifted to the highest end without bending.
2, Air brake axle, single axle load capacity of 10 tons
3,Robot welding frame to ensure welding quality
4,Cabin with FOPs and ROPs Structufes
5,High shear forces from planetary axle
The drive via the planetary axle increases the
torque on the wheel and therebyimproves the
shear force. Due to the optimal ratio between
the shear force and machine capacity, you work
flexibly and economically at the same time.
4,HAIQIN-TOP Poduction Process Introduction :
5, Optional Attachments for HQ735 Telehandler
6 ,HAIQIN-TOP MACHINERY 'S HOT-SALES H SERIES WHEEL LOADERS
7 ,HaiQinTop Machinery Participating in foreign Machinery Exhibitions
8, The general questions :
Choose HAIQIN-TOP, and then best after-service will be guaranteed.
Contact us right now for more information! Online 24 hours a day!
