Pharmaceutical Drying Machine with 192 Trays

Product Description

Company introduction: Jiangsu Xingxing Drying Equipment Co., Ltd
Jiangsu Xingxing Drying Equipment Co.,Ltd has established in 1998 and it covers an area of 15000 square meters, possesses fixed asset of USD 7 million. The products have exported to US, Singapore, India, Ukraine, Russia, Korea and so on. The company have advanced production equipment , excellent technical team and after-sales service.
Product DESCRIPTION

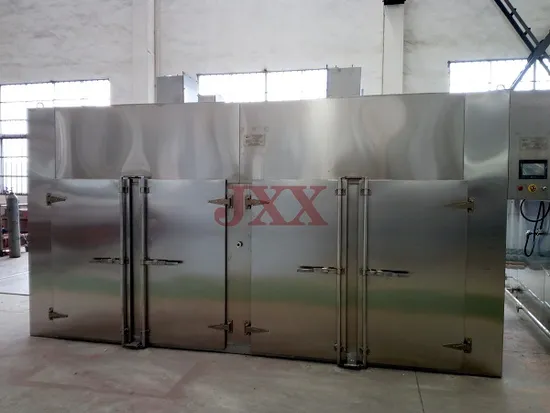

GR hot air circulating oven is equipped with low-noise and thermostable axial flow fan and automatic temperature control system. The entire circulatory system is sealed, improving the thermal efficiency of oven from traditional 3-7% in drying room to the current 35-45%, with the highest thermal efficiency up to 50%. The design success of GR hot air circulating oven make our hot air circulation oven has reached the advanced level at home and abroad. It has saved a lot of energy for our country and improved the economic efficiency of enterprises.
CHARACTERISTIC
1. Heating sources include steam, electricity, far infrared, dual-use of steam and electricity, all for users to choose;
2. Using temperature: steam heating 50 ~ 140ºC, the highest 150ºC;
3. Electricity, far infrared temperature 50 ~ 350ºC;
4. It is equipped with automatic control system and computer control system for users to choose;
5. Commonly used steam pressure 0.02-0.8Mpa (0.2 ~ 8kg / m2);
6. It is equipped with electric heating, valued 15KW calculated according to type I, practical 5-8kw / h;
7. If there is any special requirement please specify in order.
Price of non-standard oven is negotiable.
Please specify in order if using temperature is more than 140ºC or less than 60ºC.
Our baking car and baking tray are in uniform size, so they are interchangeable;
Baking tray size: 460 × 640 × 45 (mm)
FEATURES
Most of hot air loop inside the box so it is high thermal efficiency and energy-saving. It uses forced ventilation, with adjustable air divider plate in the box. The materials are dried uniformly. Heating sources offer a wide choice of steam, electricity, far infrared. Machine has low noise, auto-controlled temperature and convenient installation and maintenance and is stable in operation. It has wide application and can be used to dry various materials, so it is a commonly used drying device.

APPLICABLE MATERIALS
It is suitable for heat curing and drying and dehydration of materials and products of pharmaceutical, chemical, food, agricultural, aquatic, light industry and heavy industry, such as bulk drug, crude drug, Chinese medicine decoction pieces, extractums, powders, granules, electuaries, water-bindered pills, packing bottle, pigment dyes, dehydrated vegetables, dried fruit, sausages, plastic resin, electric elements, drying varnish and so on.

Model	GR-7	GR-14	GR-27	GR-41	GR-54
Each Drying Amount (kg/lot)	60	120	240	360	480
Evaporation Area (m2)	7	14	27	41	54
Radiator Area (m2)	15	23	48	72	96
Steam Consumption (kg/h)	10	23	44	66	86
Electrical Heating Power (kw)	6-9	12-15	24-28	42	55
Fan Power (kw)	0.45	0.45	0.45 × 2	0.45 × 3	0.45 × 4
Temperature Difference (ºC)	± 1	± 2	± 2	± 2	± 2
Outline Dimension (mm) (W × D × H)	1380 × 1200 × 2000	2260 × 1200 × 2000	2260 × 2200 × 2000	2360 × 3200 × 3000	4280 × 2200 × 2270
Trolley (sets)	1	2	4	6	8
Tray (pcs)	24	48	96	144	192
Total Weight (kg)	820	1580	1800	2100	2800

CERTIFICATE
Package:wooden case

Service:
pre-sale service We Invite customers to visit our company and communicate on technical requirements face to face.sale serviceResponsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.after-sale serviceWe provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.quality promiseOur company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.Equipment warranty period is one year,all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement.We look forward to cooperating with partners from all over the world to build win-win cooperation relationship in long term. Welcome for your visiting.
Previous Exhibition
FAQ:
1. Q: Please describe your warranty period.
A: 15 months after the equipment is arrived at the destination port or 12 months after the installation and commissioning of the equipment, whichever comes first.
2. Q: Do you provide on-site installation and commissioning?
A: Yes, we do. If on request, we'll provide the guidance of on-site installation and commissioning. Usually one mechanical engineer and one electrical engineer to assist.
3. Q: How about the cost of on-site installation and commissioning guidance?
A: The cost consists of round-trip air tickets, room and board expenses, service cost (labor cost), and site transportation (or directly provided by client), which shall be paid additionally.
4. Q: Are you a factory or a trading company?
A: We are a professional manufacturer. We have own factory and pilot plant for customers to do sample testing.
