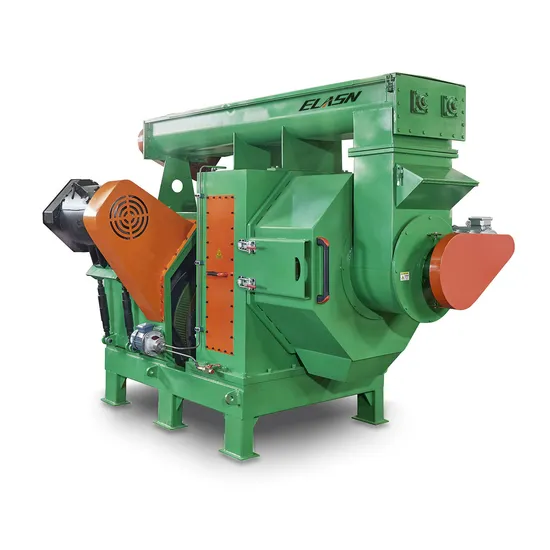

Bamboo Chips Wood Pellet Machine

Product Description

Product Description

Wood pellet machine turns wooden materials, such as timber, bark, chip, cornstalk, sawdust, etc., into pellets. The biomass pellet maker turns the raw material into cylindrical pellets by putting pressure and heat. Wood pellet machine turns the raw materials into the high-efficient biomass fuel. What's more, the conversion of raw material into more energy-dense forms facilitates transport, storage and use through the rest of the value chain. The future of the biomass ison continuous developing. The biomass fuel would like to replace the traditional fuel gradually.
awdust Briquette Pressing Biomass Briquette Machine for Sale
Wood Briquette Machine Wood Sawdust Briquette Pressing Biomass Briquette Machine for Sale
Wood Briquette Machine Wood Sawdust Briquette Pressing Biomass Briquette Machine for Sale
Raw Material
Various raw materials can be processed into biomass pellets, including wood and wood waste, agricultural residues such as straw and corn stover, energy crops like switchgrass and miscanthus, and organic industrial and urban waste. These materials are typically processed into pellets through methods such as drying, crushing, and pelletizing to create a dense and uniform fuel source for heating and electricity generation.
Product Parameters

Model	ELA-608	ELA-788
Capacity(t/h)	2.5-3	4-4.5
Motor power(kw)	180(90*2)	220(110*2)
Ring mold size(mm)	∅608	∅768
Press roller quantity(pcs)	2
Transmission method	Asynchronous motor V-belt + gear	Water-cooled synchronous motor Timing belt + gear
Feeding type	Horizontal screw + forced feeding
Machine size(m)	3.2*2.2*2.1	3.2*2.3*2.1
Weight(kgs)	8480	13900

Product Features
1. Energy-saving: By utilizing rotational kinetic energy and increasing the effective lever arm, the machine can achieve a production rate of 4.5-5 tons per hour while saving over 45% of energy .2. Stability: The main machine weighs 14 tons and is made of integral alloy forged parts. The synchronous motor, along with the enlarged synchronous wheel, provides a large torque and rotational inertia, ensuring stable operation without blockages .3. Strong adaptability: The machine is capable of compressing different materials and even materials with high moisture content .4. Low maintenance cost: The roller only requires oiling once every 500 hours of operation, resulting in low maintenance expenses.5. Extended warranty: The chassis, main shaft, hollow shaft, gears, and synchronous motor are all covered by a two-year warranty,providing customers with an extended period of quality assurance . Product Display
Related Products
Shredder
Biomass Crusher
Whole Production Line
A complete wood pellet production line includes crushing, drying, pelletizing, and packaging units. 1. Crushing: Wood blocks, wood chips, or other wood materials are uniformly crushed. This can be done using a wood crusher or shredder to reduce the size of the wood into smaller pieces.2. Drying: The crushed wood material is then fed into a drying machine drum through a conveyor belt. The drying process quickly reduces the moisture content of the material to around 12% to 20%. This is important for ensuring the quality of the final wood pellets.3. Pelletizing: Once the wood material is dried, it is then fed into a pellet mill. The pellet mill compresses the material under high pressure and heat, forming it into small cylindrical pellets. The pellets are then extruded from the pellet mill.4. Packaging: The pellets are discharged from the pellet mill and can be directly connected to a conveyor belt that leads to an packaging machine. The packaging machine packages the pellets into bags
Our Project
Company Profile
Henan Elasn Machinery Equipment Co., Ltd is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
Elasn focus on Woodworking Machinery, Here we can provide a complete solution for your wood line processing. Elasn's products develop and increase not limit to wood working machinery, with main products of Wood pallet production line, wood press machine series,wood saw machine series,wood crusher and chip machine series ,etc.
Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers. "To provide a design, production, quality control, inspection, testing, sales and logistics service to companies that need a reliable supply of wood machinery from China. "
All members of Elasn welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!

Packaging & Shipping
After Sales Service-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.Technical Support- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
FAQ

Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/ phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
