China Mobile Heavy-Duty Sinotruk HOWO 6*4 /8*4 Mixer 8 10 12 14 16 18 20 Cbms Mixer Truck Variable Capacity on-Site Hydraulic Discharge Drum Mixing Concrete Cem

Product Description

Product Description
The Mixer Truck is a specialized vehicle meticulously crafted for the seamless transportation of concrete for construction endeavors. Often referred to as the field snail car or olive car due to its unique cylindrical shape, these trucks are indispensable in ferrying mixed concrete directly to construction sites, ensuring efficiency and quality.
During transit, the mixing drum persistently rotates, ensuring that the concrete remains unset and perfectly mixable. Post-delivery, the mixing cylinder undergoes a thorough rinse with water to eliminate any residual concrete, thereby preventing hardening and maintaining the drum's full capacity for future use.

Model NO	ZZ1257N3647N1		Productivity	180m²/h
Feeding Height	1380mm		Vibrating Amplitude	0.9mm
Certification	ISO9001: 2000		Condition	Used
Color	White		Cbm	10/12cbm
Customlize	Support Customlize		Water Tank	450L
Overall Dimension	9000*2550*3950 mm		Transmission	Hw19710, 10f & 2r with Pto
Transport Package	Nude		Specification	8800x2550x3800mm
Trademark	HOWO		Origin	Shandong
Production Capacity	200/months

Product Parameters

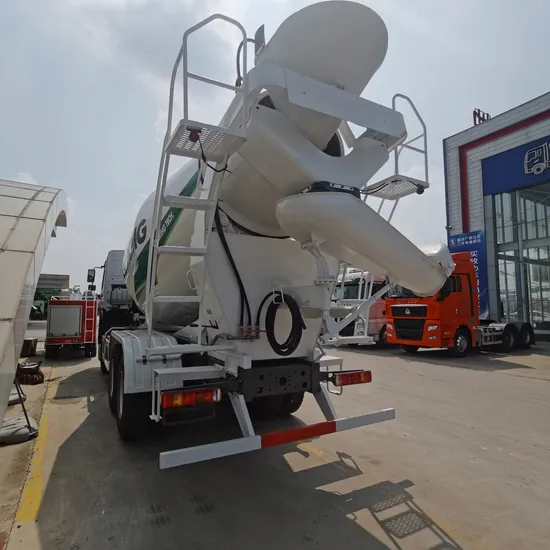

Detailed Pictures for SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck

brand	Sinotruk Howo
Cabin	Driving type 6x4, LHD
	HW76 single bed
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	10245x2496x3450
	Wheel base (mm)	3600+1350
	Wheel track (front/rear) (mm)	2022/2022
	Approach/Departure angle(°)	16/24
Max. driving speed(km/h)		90
Engine	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Model	WD615.47
	Horse Power(HP)	371
	Emission standard	Euro II
Gearbox	10 forwards & 2 reverse
Steering	Left hand drive
Tire	12R22.5 tubeless tires with one spare
Mixer Drum	Mixer Capacity	16 cubic meters
	Drum thickness	6mm
	Blade thickness	4mm
	Tanker Material:	16MnQ345 Carbon Steel
	Filling Rate(%)	59
	Input Speed (m3/min)	≥2.8
	Output Speed (m3/min)	≥1.2
	Surplus Ratio	≤0.5
	Tanker Rotate Speed(rpm)	0~17
	Hydraulic Pump	Italy Brand: PMP
Drum Drive System	Hydraulic Motor	Italy Brand: PMP
	Speed Reducer	Germany Brand
	Radiator	KAITONG
	Water Tank Volume(L)	400

Detailed Photos
We offer an extensive selection of used tipper trucks,tractor trucks, and concrete mixer trucks spanning from 2013 to the present. All vehicles are in excellent condition and are available at highly competitive prices!For more photos and detailed information, please feel free to contact us.
Installation Instructions
Matters Needing Attention
1. Conduct a thorough inspection of all mechanical system parts prior to operations to ensure optimal condition.
2. Ensure the mixing lever is set to the 'neutral' position before starting.
3. Once started, shift the mixing lever to the 'discharge' position and expel any water present in the cylinder.
4. When loading, ensure the stirring operating rod is positioned in the 'loading' mode.
5. Secure the discharge chute in the 'traveling' position before transportation to prevent any swinging.
6. When maneuvering the joystick, always pause in the 'neutral' position before transitioning to another position.
7. Maintain impeccable construction hygiene: avoid indiscriminate disposal of excess materials from the bucket. After discharge, clean the mixing drum, tank, rollers, and other components meticulously. Before entering the cylinder to remove concrete clumps, ensure the vehicle is turned off, the key is removed, and have an external monitor for added safety.
Company Profile
Jining Huahang International Trade Co., Ltd. shines as a beacon of excellence in exporting both new and used trucks, premium construction machinery, and high-quality semitrailers. With an impressive 15-year history in trailer manufacturing and 8 years of expertise in marketing pre-owned trucks and machinery, our company stands as a trusted paragon of reliability and integrity.
At Jining Huahang International Trade Co., Ltd., our unwavering dedication to quality is second to none. Every vehicle is subject to a meticulous and exhaustive road-test inspection, performed by our highly skilled engineers before delivery. This rigorous process guarantees that only the highest standards of excellence reach our valued customers.
With an impeccably serviced fleet, we assure the superior quality of our trucks and trailers with confidence. We offer an extensive SIX-Month Warranty on all our products. Our core philosophy, 'Buy Easily, Service Assured,' exemplifies our steadfast commitment to customer satisfaction, which remains our top priority.
Our Factory
Packaging & Shipping
Trucks are typically dispatched via RO-RO vessels or bulk vessels. Alternatively, we can utilize specialized containers for shipping. FAQ
Q: Who are we?
A: Headquartered in liangshan,Shandong, China, the company has a good reputation in the automotive trading industry and serves customers worldwide.There are over 30000 vehicles traded online and offline, covering countries and regions such as Russia, Mongolia, Southeast Asia, Africa, and Central Asia.
Q: Why should you choose us as your supplier??
A: The company sells mainstream models such as tractors, mixers, dump trucks, oil tankers, and tractors from various brands. There are over 20000 cars to choose from.
Q: How can I purchase a trailer truck from your esteemed company?
To purchase from Jining Huahang International Trade Co., Ltd., explore our comprehensive catalog on our website or share your specific requirements with our expert sales manager. They will recommend the perfect model tailored to your needs. Once the model and pricing are agreed upon, we will promptly proceed to sign the contract, ensuring a seamless and efficient transaction.
Q: How do you ensure the highest product quality?
Firstly, we hold an international quality system certification, affirming our dedication to excellence. Secondly, our factory has undergone meticulous field certification by the Made in China Group. Lastly, you have the option to hire third-party individuals or organizations to conduct a thorough inspection of our products before delivery, guaranteeing the utmost quality.
Q: What are the steps to visit your factory?
Upon your arrival in China, you can fly directly to Qingdao Airport in Qingdao City, Shandong Province. Our courteous driver will warmly greet you and ensure a comfortable, convenient transport to our factory, making your journey as smooth as possible.
Q: How do you consistently guarantee quality?
We consistently provide a pre-production sample for your approval before proceeding with mass production. Additionally, we conduct thorough final inspections before shipment to ensure the highest standards are met, maintaining our commitment to quality.
Q: What products can we purchase from your company?
Our extensive product range includes high-quality Trucks, Trucks Spare Parts, and advanced Construction Machinery, designed to meet diverse industrial needs.
Q: How about the delivery time?
A: Most of our trucks and machinery are readily in stock and can be delivered within a mere 7 days. For bespoke orders, production generally spans around 30 days.
Q: How many units of trucks do you produce annually?
A: We pride ourselves on producing nearly 30,000 units per year, with an impressive update of approximately 5,000 units every month.
Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we embrace custom orders with enthusiasm. Our minimum order quantity (MOQ) is conveniently set at just one unit, catering to various customer needs.
If any of our premium construction machinery piques your interest, please do not hesitate to contact us. We also warmly invite you to China to visit our construction machinery factory, discuss pricing, and delve further into the details of our offerings.
