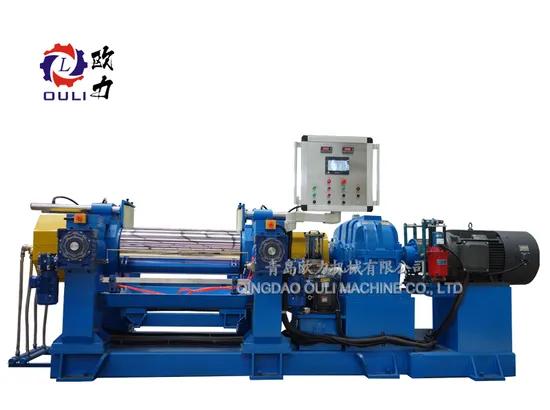

Hardened Gear Bearing Rubber Sheet Two Roll Mixer/Mixing Mill

Product Description

Hardened Gear Bearing Rubber sheet two roll mixer/mixing mill 1. PRODUCT INTRODUCTION OF Hardened Gear Bearing Rubber sheet two roll mixer/mixing mill.
(1)Rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials. The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products. (2)Traditional Stock blender is usually installed on the top of bigger mixing mill.It not only can improve the working efficiency,but also can mix the material fully. (3)Automatic blender machine:It is used for the mixing of silicon and rubber, and the coloring of silicone materials to improve the mixing efficiency and make the mixing effect better. The high degree of automation saves labor and reduces the risk of work-related injuries. 1-1. Basic introduction of Hardened Gear Bearing Rubber sheet two roll mixer/mixing mill.
(1)Rubber mixing mill machine,
(2)rubber mixing mill machine with traditional stock blender,
(3)rubber mixing mill machine with automatic blender machine.
1-2. Parameter of Hardened Gear Bearing Rubber sheet two roll mixer/mixing mill.

Parameter/model		XK-160	XK-250	XK-360	XK-400	XK-450	XK-560	XK-610
Roll (mm)		160	250	360	400	450	560	610
Roll working length (mm)		320	620	900	1000	1200	1530	2000
Capacity (kg/batch)		4	15	30	40	55	90	150
Front roll speed (m/min)		10	16.96	16.22	18.78	21.1	25.8	28.4
Roll speed ratio		1:1.21	1:1.08	1:1.22	1:1.17	1:1.17	1:1.17	1:1.18
Motor power (kw)		7.5	22	37	45	55	90/110	160
Size (mm)	Length	1104	3230	4140	4578	5035	7100	7240
	Width	678	1166	1574	1755	1808	2438	3872
	Height	1258	1590	1800	1805	1835	1600	1840
Weight (KG)		1000	3150	6892	8000	12000	20000	26197

1-3. Configuration of Hardened Gear Bearing Rubber sheet two roll mixer/mixing mill.
1. Rolls: Chilled Alloy Cast Iron rolls with surface hardness 68~72HS. The Rolls are mirror finished & polished, duly grinded and are hollowed for cooling or heating.
2. Roll Clearance Adjusting Unit: Nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.
3. Roll Cooling: Universal Rotary joints with inner Spray pipes with Hoses and Headers. Piping is complete up to supply pipe terminal.
4. Journal Bearing Housing: Heavy Duty Steel Casting Housing fitted with Anti Friction Roller Bearings.
5. Lubrication: Full Automatic Grease lubrication pump for Anti Friction Roller Bearings fitted in dust sealed housing.
6. Stand Frame & Apron: Heavy Duty Steel Casting.
7. Gearbox: Hard-tooth reduction gearbox, GuoMao brand.
8. Base Frame: Common base frame heavy duty, Steel channel and MS plate fabricated accurately machined on which whole machine with Gearbox and motor are fitted.
9. Electric Panel: Star Delta Electric operating panel with Auto Reversing, Voltmeter, Ampere, Overload protection relay, 3 Phase Indicator and Emergency Stop Switch.
1-4.Processing process of Hardened Gear Bearing Rubber sheet two roll mixer/mixing mill.
1-5. Sample pictures of Hardened Gear Bearing Rubber sheet two roll mixer/mixing mill.
2.OULI CLIENT INSTALLTION SHOW 3. COMPANY INFORMATION
3-1 OULI COMPANY
Established in 1997, Qingdao Ouli machine CO., LTD was located in Huangdao District, the west coast of Qingdao city,Shandong province ,China.
Branches in Suzhou , Dalian etc were created in 2012 and 2015 .
We are specialized in rubber machinery designing,manufacturing and maintenance works .
OULI main products:
Rubber mixing equipment / Rubber vulcanizing machine / Automatic and semi-automatic waste tire recycling equipment / Rubber calendaring machine / Rubber extruding equipment / Reclaimed rubber production line
Our machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil .
We warmly welcome customers visit factory and technology discussion is highly appreciated .
3-2 OULI workshop 4. FAQ Q1:Why choose Us?
1.More than 20 years history of OULI MACHINE factory.
6-8 years foreign sales experience staff, more efficiency and professional.
Engineers oversea service more than 20 countries .
2.ISO:9001,CE,BV certification approval
3.Service timely, Promise to give solution within 12 hours,Guarantee customer trouble free.
4.Short delivery date, No delay. Accept urgent order for prompt shipment.
Q2:What about delivery date?
It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, No delay.
Accept urgent order for prompt shipment.
Q3:What's the warranty statement?
OULI MACHINE warrants all the products manufactured by OULI MACHINE to free from defects in material and workmanship Under.
