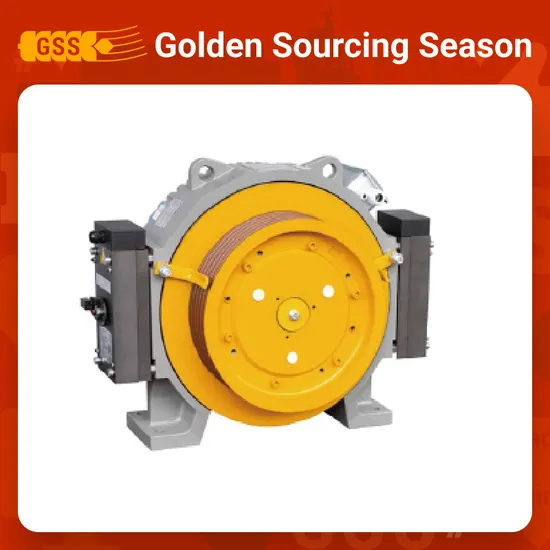

320kg-630kg Elevator Motor Permanent Magnet Synchronous Gearless Traction Machine
| US$800.00-2,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
NV41M-MCK100/200
Driving Type
AC Elevator
Capacity
500-1000kg
Persons
6 - 10
Speed
1.00 - 2.00m/s
Control Mode
Parallel Control
Position of Computer Room
Without Computer Room
Elevator Door
Sider Door
Door Knife
Single
Deceleration Device
Without Deceleration Device
Attendant
Without Attendant
Voltage
AC220 AC380
Material
Metal
Load
320kg-630kg
Applicable
Geared,Gearless
Price
Competitive
Rope
1:1,2:1
Brand
Nova
Delivery
15 Days
Elv.Speed(M/S)
0.5-1.75
Sheave Dlam.(mm)
320
Transport Package
in Standard Package
Specification
8.5m³
Trademark
NOVA
Origin
Suzhou
HS Code
84313100
Production Capacity
5000 Piece/Year
Packaging & Delivery
Package Size
50.00cm * 50.00cm * 50.00cm
Package Gross Weight
10.000kg
Product Description
1350kg-2000kg elevator motor permanent magnet synchronous gearless traction machine Product Description·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat Traveling Cable etc.
Product Parameters
| Spec. | Load (kg) | Elv.Speed (m/s) | Roping | Power (kW) | Voltage (V) | Current (A) | SheaveDlam (mm) | Sheave Groove (mm) | Speed (r/min) | Freg (Hz) | Poles |
| 320-0.5 | 320 | 0.5 | 2:1 | 1.1 | 220/380 | 7/4 | 320 | 3xΦ8x12 | 60 | 12.0 | 24 |
| 320-1.0 | 320 | 1.0 | 2:1 | 2.2 | 220/380 | 5 | 320 | 3xΦ8x12 | 119 | 23.8 | 24 |
| 320-1.5 | 320 | 1.5 | 2:1 | 3.4 | 220/380 | 8 | 320 | 3xΦ8x12 | 179 | 35.8 | 24 |
| 320-1.75 | 320 | 1.75 | 2:1 | 3.9 | 220/380 | 16/9 | 320 | 3xΦ8x12 | 209 | 41.8 | 24 |
| 450-0.5 | 450 | 0.5 | 2:1 | 1.4 | 220/380 | 9/5 | 320 | 4xΦ8x12 | 60 | 12.0 | 24 |
| 450-1.0 | 450 | 1.0 | 2:1 | 2.7 | 220/380 | 7 | 320 | 4xΦ8x12 | 119 | 23.8 | 24 |
| 450-1.5 | 450 | 1.5 | 2:1 | 4.1 | 220/380 | 11 | 320 | 4xΦ8x12 | 179 | 35.8 | 24 |
| 450-1.75 | 450 | 1.75 | 2:1 | 4.8 | 220/380 | 11 | 320 | 4xΦ8x12 | 209 | 41.8 | 24 |
| 630-0.5 | 630 | 0.5 | 2:1 | 1.9 | 220/380 | 13/7 | 320 | 5xΦ8x12 | 60 | 12.0 | 24 |
| 630-1.0 | 630 | 1.0 | 2:1 | 3.9 | 220/380 | 10 | 320 | 5xΦ8x12 | 119 | 23.8 | 24 |
| 630-1.5 | 630 | 1.5 | 2;1 | 5.8 | 220/380 | 16 | 320 | 5xΦ8x12 | 179 | 35.8 | 24 |
| 630-1.75 | 630 | 1.75 | 2:1 | 6.8 | 220/380 | 16 | 320 | 5xΦ8x12 | 209 | 41.8 | 24 |
Certifications
World Exhibition
Our Elevator Showroom
Our Team
Packaging & Shipping
FAQ 1. Price
Re: please send us inquiry from made in china, we will quote to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for with elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
