PLC Hydtaulic Jacks Tank Lifting Jacking System

Product Description

Advanced Three-Stage Hydraulic Jack with PLC Control
PRODUCT OVERVIEW
Hydraulic jacking system is mainly used for inverted construction of vertical cylindrical steel storage tank (hydraulic jacking method) and inverted construction of vertical cylindrical low-temperature storage tank in petrochemical industry.It can also be used for vertical lifting and lifting of super large objects.
DETAILED DESCRIPTION
★Main Features 1, The system consists of hydraulic pump station, cylinders, steel wire, and strokes. Easy to installation and operation;
2, The system utilizes PLC central control to handle lift. Each power pack is equipped with auxiliary balance device to guarantee the precision of simultaneously lifting.
3, Hydraulic lift pump station has subsidiary manual control and central control two operation models. The cylinder can be adjusted to lift separately or to lift with several others as one group, and multi groups can also be integrated to lift reach better precision and better welding effect.
4, All the cylinders are with safety valve. It can be automatically locked to avoid cylinder/ tank dropping even under situation of power off, high-pressure hose broken, burst.
5, The cylinder is with one high pressure hose to avoid oil leaking that usually happen by the traditional multiple hoses.Cylinder will return to initial condition by itself weight.
6, Stroke of Hydraulic cylinder is 1475 mm, which can satisfy each annular shell with 2630 plate one-step lift. Greatly reduce the time waste.
7, Hydraulic cylinder basic height is 2050 mm, which can match automatic girth welding machine to proceed internal girth seam welding.
8, Module configuration, the jacking system quantity can be adjusted as per different size of tank and weight
9, High efficiency, each time lifting or falling down only needs around 15 minutes.
10, Can well cooperate with our tank welding machines, which can greatly reduce the manpower cost and reduce the construction time.
TECHNICAL PARAMETER

Technical Parameter
Item/Model	YT10-1650	YT10-1700	YT12-2700	YT18-1700	YT25-3200
Maximum service pressure	28 MPa	28 MPa	13Mpa	30Mpa	20Mpa
Maximum output force	10 t	10 t	12 t	18 t	25 t
Maximum stroke	1700 mm	1700 mm	2700 mm	1650 mm	3200 mm
Lifting speed	90mm/min	90mm/min	160mm/min	95mm/min	180mm/min
Oil pump flow	2×14.4L/min	2×14.4L/min	50L/min	7.2L/min	14.4L/min
Motor speed	1440r/min	1440r/min	1440r/min	1440r/min	1440r/min
Motor voltage	~380 V	~380 V	~380 V	~380 V	~380 V
Motor power	2×5.5kw	2×5.5kw	15kw	4kw	5.5kw
Working environment temperature	-15~50 ºC	-15~50 ºC	10~50 ºC	10~50 ºC	-10~60 ºC
Suitable width	1500mm	1500mm	1500mm	1500mm	3000mm
Technical Parameter
Item/Model	YT25-2700	YT30-2700	YT30-3200	YT40-3400	YT50-2700
Maximum service pressure	25Mpa	20Mpa	30Mpa	20Mpa	10Mpa
Maximum output force	25 t	30 t	30 t	40 t	51 t
Maximum stroke	2700 mm	2700 mm	3200 mm	3400 mm	2620 mm
Lifting speed	180mm/min	110mm/min	50mm/min	80mm/min	140mm/min
Oil pump flow	14.4L/min	7.2L/min	7.2L/min	7.2L/min	14.6L/min
Motor speed	1440 r/min	1440 r/min	1440 r/min	1440 r/min	1440 r/min
Motor voltage	~380 V	~415 V	~380 V	~380 V	~380 V
Motor power	5.5kw	4kw	4kw	4kw	5.5kw
Working environment temperature	10~50 ºC	-10~50 ºC	10~50 ºC	10~50 ºC	10~50 ºC
Suitable width	2500mm	2500mm	2500mm	3050mm	2500mm

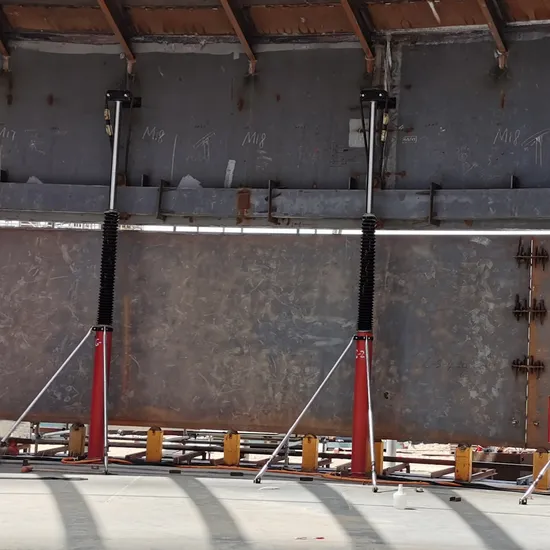

CONSTRUCTION SITE PHOTOS
