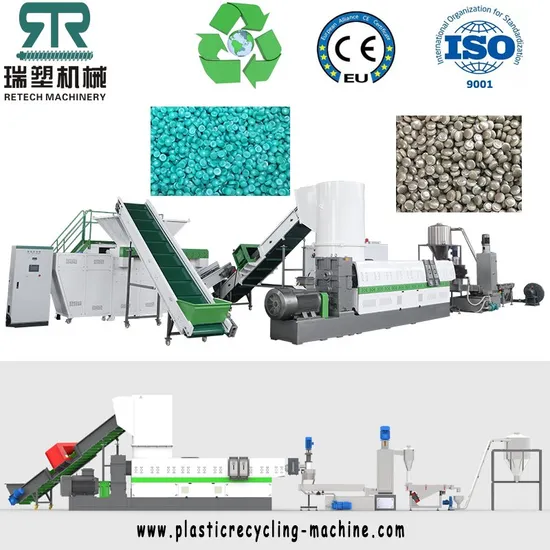

PP/PE /LDPE/HDPE/LLDPE Film Scraps Jumbo Bags Woven Bags Double Stage Pelletizing Machine

Product Description

Retech PP PE LDPE HDPE LLDPE Film Scraps Jumbo bags Woven bags Double Stage Pelletizing Machine
Product Description
The design is mainly to processing following:* LDPE agriculture films washing line
* LLDPE warpping stretch packing films recycling machine
* PP woven bags washing plant
* PP jumbo bags washing machine
* HDPE bottle recycling line
Retech plastic PP PE LDPE film washing recycling line is designed to processing kinds of post consumer LDPE agriculture film, LLDPE stretch film, PP woven bags etc. By high efficiency crushing system, continuous washing and strong drying system, the plastic film will be fully clean. We provide customized recycling solutions basis on customer's conditions.With more than 15 years experience to keep reserching and development, we can achieve to offer 300kg/h-2000kg/h capacity PE film washing and recycling solutions according to your special requirements.Regardless of what kind of plastics you process and what output qualities and production volumes you're striving for Retech Machinery will develop a recycling plant solution that is customized exactly to your requirements.
The complete process of this waste plastic recycling machine is belt conveyer - wet crusher - screw loader - friction washer - float washer - squeezing pelletizer - pelletizing line. The output could be 300~800kg/h. For dirty material, the clients will need more washing machine for cleaning the material. According to clients workshop, this plastic recycling machine could be arranged as "L" or "U" shape to save space.

Advantages:1. One Step, All-in-One direct recycling(cutting, extrusion and pelletizing) in this plastic pelletizing machine
2. Balance feeding without the need for pre-cutting
3. Higher output capacity
4. Higher pellets quality
Crushing and compacting: the rotatory blades of compactor will cut the fed raw mateiral into pieces to reduce the size. Frictional heating which is caused by high speed rotatory blades will heat and let scraps shrink just below their melt point. Crusheing, drying and compacting the material which enables a fast and stable feeding from the compactor directly into the extruder.
creen changer: a regular single-plate double-station screen changer no mesh screen changer can be installed on head of extruder to remove impurities. The requirements on the filter technology depend heavily on the quality of the input material as well as the planned use of granules.
plastic pelletizing machine
PE film granulator
PE PP granulating machine
PE/PP pelletizing line



Main Fetures

Feature of our recycling system:
1.Compared with the traditional design, the output of our new generation pelletizing machine has been increased around 20%. 2.Lower power consumptionThe power consumption reduced around 15%3.Higher automation degreeOnly 2 workers r required for operating the whole production line.4.Compared with other extruder,two stage waste plastic pelletizing line achieves better degassing and filtration performance, by thus, we can get more excellent final pellets.5.Extruder body safty cover: the safty cover will keep the operators away from potential danger.
Detailed Photos


Plastic pelletizing machine's dagram: Belt converor →metal detector(optional) → compactor(depends) → extruder → hydraulic screen changer → die head → cutting system → dewatering equipment → air transmission →vibration → silo

Technology Parameter

Technology Parameter
Type		RSDJ85	RSDJ100	RSDJ130	KCP160
Capacity (kg/h)		150-250	300-420	400-600	800-950
Energy consumption (kWh/kg)		0.2-0.33	0.2-0.33	0.2-0.33	0.2-0.33
A / Length (mm)		10,300	10,300	11,400	14,800
B / Width (mm)		6,200	6,200	6,450	6,850
C / Height (mm)		3,500	3,750	3,980	4,460
Compactor	Volume(L)	300	500	800	1200
	Motor power(KW)	37-45	55-75	75-90	132-160
Extruder	Screw Diameter (mm)	φ80	φ100	φ120	φ160
	L/D	30-40	30-40	30-40	30-40
	Motor power (kW)	55-75	90-110	132-160	250-315
Filter (options)	Two position plate type	Standard	Standard	Standard	Standard
	Two position piston type	Alternative	Alternative	Alternative	Alternative
	Back flush piston type	Alternative	Alternative	Alternative	Alternative
	Automatic self-cleaning type	Alternative	Alternative	Alternative	Alternative
2nd Extruder (optional)	Screw Diameter (mm)	φ100	φ120	φ140	φ180
	L/D	10-18	10-18	10-18	10-18
	Motor power (kW)	37-45	45-55	55-75	90-110
Downstream (options)	Water ring pelletizer	Standard	Standard	Standard	Standard
	Strand pelletizer	Standard	Standard	Standard	Standard
	Auto strand pelletizer	Standard	Standard	Standard	Standard
	Underwater pelletizer	Standard	Standard	Standard	Standard

Certifications
Service

A. Service before sale
(1) 24 hours online. Your inquiry will be quick reply by email.Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ )(2) Professionally and patiently introduction, details pictures and working video to show machine.B.Service on sale(1) Test every machine and inspect the machine seriously.(2) Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.(3) Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free.If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
C.Service after sale(1) Free insurance for goods.(2) 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
Product Parameters

Models of Retech PP PE LDPE HDPE Shredding Washing Drying Pelletizing Recycling Line:

Model	Man power	Electric power	Water needec
RSDJ300	2	Customized	Customized
RSDJ500	2	Customized	Customized
RSDJ1000	3	Customized	Customized
RSDJ2000	4	Customized	Customized
