Complete Solar Collector Water Heater System Set
| US$1,200.00 | 1 set (MOQ) |
Basic Info.
Model NO.
Eadex
Concentrating
Yes
Working Temperature Range
High Temperature
Type
Pressurized
Application
Water Heater, Solar Thermal
Pipe Material
Glass
Tank
500L Stainless Steel Inner Tank
Heat Pipe
50PCS
Solar Collector
2set 25PCS Hea Pipe Tubes
Pumpstation
Available
Transport Package
export cartons
Specification
500L -50tubes
Trademark
OEM
Origin
china
HS Code
84191200
Production Capacity
20, 000pcs/year
Product Description

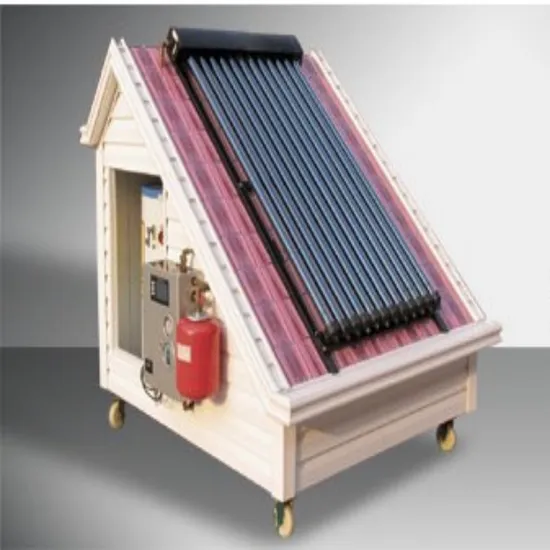

complete solar collector systemThe split solar water heating is an active system, because it uses a pump with a controller to circulate the fluid between solar collector and the storage tank, tank and solar collector are separate, while the collector is integrated in to the roof of the building, the tank and the pump station can installed anywhere of the building.
Feature:
1.Collector separated with storage tank.The tank can be put in any place of house.And the collector can be put on the clined roof or flat place
2.Module design,arbitrary combination,harmony with the building perfectly
3.Intelligent control and automatic operation
4.Multifunction:bathing,washing,domestic heating etc
5.Work at anytime and enjoyable
Capacity:100L/150L/200L/250L/300L/400L/500L
| product model | 100L | 150L | 200L | 250L | 300L | 400L | 500L |
| inner vessel diameter(mm) | φ370 | φ370 | φ470 | φ470 | φ470 | φ600 | φ600 |
| water tank dimension(mm) | φ470 | φ470 | φ560 | φ560 | φ560 | φ700 | φ700 |
| material and thickness of the inner vessel | SUS304 1.2 | SUS304 1.2 | SUS304 1.5 | SUS304 1.5 | SUS304 1.5 | SUS304 2.0 | SUS304 2.0 |
| material and thickness of the shell | Color Steel0.55 | Color Steel0.55 | Color Steel0.55 | Color Steel0.55 | Color Steel0.55 | Color Steel0.55 | Color Steel0.55 |
| layerinsulation thickness(mm) | 50 | 50 | 45 | 45 | 45 | 50 | 50 |
| connector size of inlet&outlet | 3/4" | 3/4" | 1" | 1" | 1" | 1" | 1" |
| connector size of copper coil | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" |
| rated heating power | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
| Overall dimension(references)(mm) | φ470×1040 | φ470×1440 | φ560×1260 | φ560×1520 | φ560×1810 | φ700×1550 | φ700×1850 |
| Packing case size(mm) | 550×550×1120 | 550×550×1500 | 640×640×1330 | 640×640×1600 | 640×640×1870 | 780×780×1650 | 780×780×1950 |
