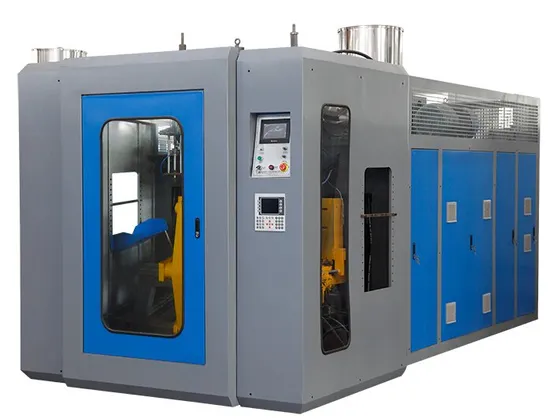

0-5L Household Bottle Single Station Blow Molding Machine
| US$10,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SZ-65
Raw Material
HDPE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Video Technical Support, Free Spare Parts, Field I
Clamping System
Toggle Type Clamping System
Clamping Force
65kn
Station
Single Station or Double Station
Mould
One Cavity or Two Cavity
Auto-Deflashing
with Auto-Deflashing
Dry Cycle
1000PC/H
Output of HDPE
75 Kg/H
Application
Bottles, Jars, Jerry Cans, Gallons, Containers
Suitable Material
HDPE,PP,PVC,PS,PETG,LDPE
Sutiable
0~5L Bottle
Mold Stroke
150-500
Transport Package
Film Packing
Specification
65I
Trademark
ShenZhou
Origin
Jiangsu, China
HS Code
8477301000
Production Capacity
15 Set/Sets Per Month
Product Description
SZ-65I full-automatic bottle making machine is specially designed for plastic chemical bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic bottles not over than 5Liters.
Technical Parameters: SZ-65
| SPECIFICATIONS | UNITS | SZ-65 SERIES | |||
| AB | L | 5 | |||
| Number of die heads | Set | 1 | |||
| Dry cycle time | Second | 5 | |||
| Machine dimension (L*W*H) | M | 3 *1.9 *2.4 | |||
| Total weight | Ton | 3.5 | |||
| CLAMPING UNIT | |||||
| Clamping force | KN | 68 | |||
| Platen opening stroke | mm | 200-500 | |||
| Platen size | mm | 360*390 | |||
| Max mould size (W*H) | mm | 390*390 | |||
| Mould thickness | mm | 210-300 | |||
| Platen moving distance | Mm | 440 | |||
| POWER | |||||
| Extrusion motor power | KW | 15 | |||
| Oil pump motor power | KW | 5.5 | |||
| Extrusion heating power | KW | 12 | |||
| Head heating power | KW | 5.7 | |||
| Cooling Fan power | KW | 0.42 | |||
| Total power | KW | 38.62 | |||
| Average power consumption | KW | 21 | |||
| EXTRUDER UNIT | |||||
| Screw diameter | mm | 65 | |||
| Screw L/D ratio | L/D | 24 | |||
| Plasticizing capacity | Kg/hour | 75~80 | |||
| Number of heating zone | Zone | 3 | |||
| Extruder heating power | KW | 12 | |||
| Extruder driving power | KW | 15 | |||
| Cooling Fan No | 3 | ||||
| Fan power | KW | 0.42 | |||
| DIE HEAD | |||||
| Head type | Continuous extrusion head | ||||
| Head No | 1 | 2 | 3 | 4 | |
| Central distance / mm | - | 160 | 110 | 85 | |
| Max die diameter / mm | 150 | 80 | 50 | 30 | |
| Heating zone No | 2 | 3 | 4 | 5 | |
| Heating power | 5.7 | 4.8 | 5.2 | 6.5 | |
The main components of the machine
| electronic parts | |
| Name | Trader |
| Micro computer control system | TAIWAN WISETECH |
| Temperature Controller | TAIWAN HUIBANG |
| Auxiliary Relay | OMRON |
| contactor | SOLID |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | ABB from SWIZERLAND |
| hydraulic parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | YUKEN |
| Oil pump and connection | YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
