Automatic Thermal Conductivity Tester

Product Description

Product Description

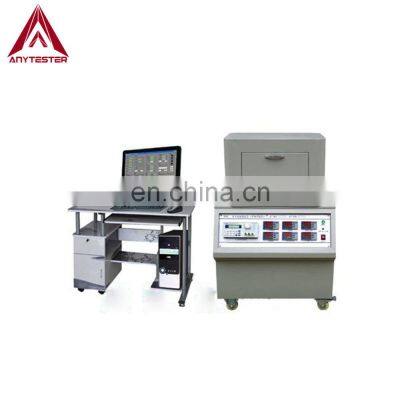

Product DescriptionDRH-V Automatic Thermal Conductivity TesterDRH-V Automatic Thermal Conductivity Tester (Guarded Hot Plate) is used to measure the steady-state heat transfer through flat slab specimens by using the guarded hot plate method and calculate its heat conductivity of plastic, rubber, glass, fiber plate, polystyrene board, extruded sheet, foamed concrete, hollow glass, wood board and various thermal insulation materials. The slab specimen is placed between two flat parallel isothermal hot plates. Measure the heat flux through the effective area on the specimen, the temperature difference of two surfaces of the specimen and the thickness of the specimen to calculate the thermal conductivity. StandardGB/T 10294ISO 8302ASTM C177Feature★ Professional test software for automatically controlling the test procedure.★ Automatic measurement of specimen thickness and automatic pressurization, suitable to measure the thermal conductivity under different pressures.★ Automatic data acquisition, data process, print-out of form and report and data-saving.★ Short measurement time, accurate test result, good repeatability and high automation.SpecificationModelDRH-VThermal conductivity measuring range0.001~3.000W/m.KThermal conductivity measuring accuracy±2%Thermal conductivity repeatability±1%Surface temperature range of hot surfaceRoom temperature~150℃Resolution: 0.01℃Fluctuation: ±0.01℃Surface temperature range of cool surface0~60℃ (-5~60℃ and -30~60℃ can be customized)Resolution: 0.01℃Fluctuation: ±0.01℃Thickness measuring range0~100mmResolution: 0.001mmPressure measuring range0~500NResolution: 0.1NSpecimen sizeBasic configuration: 300×300×(5~80)mmOther optional sizes: 100×100×(5~80)mm200×200×(5~80)mm600×600×(5~80)mmTest time of whole procedure60minPower supplyAC220V 50Hz, single-phase, 500WPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip.2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.PaymentPayment Term T/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIF L/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerCompany IntroductionContacting Us
