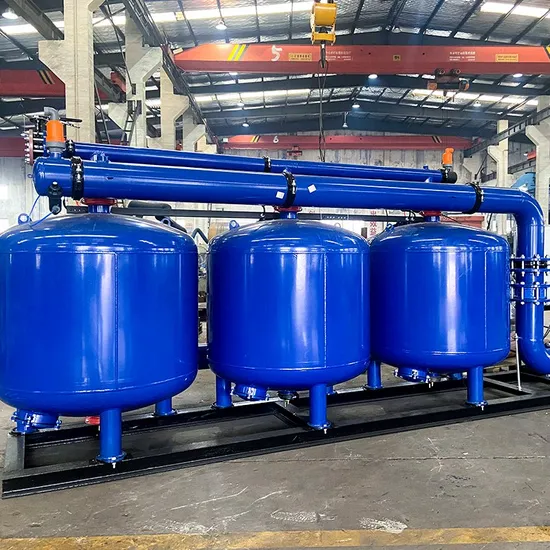

Carbon Steel Sand Filter Tank Water Well Medium Sand Filter for Industry

Product Description

Product Description Working Principle
The shallow sand filter uses natural sea sand as the filter medium. Under a certain pressure, the water with high turbidity is filtered through a certain thickness of granular or non-granular natural sea sand, effectively intercepting and removing suspended solids, Organic matter, colloidal particles, microorganisms, chlorine, smell and some heavy metal ions, etc., and finally achieve a high-efficiency filtration device that reduces water turbidity and purifies water quality.
Filter Status:
The shallow sand filter is composed of several filter units arranged side by side. When the system is in the filtering state, the unfiltered water is evenly distributed through the self-developed water distributor, and the water passes through the packing layer (natural sea sand) in the filter in a laminar flow state. When water flows through the packing layer, impurities are trapped in the packing layer. There are multiple evenly distributed water collectors at the bottom of the filter, which collect and lead out the filtered water evenly, and filter in advection, so that the filter can filter at a high flow rate and still achieve a better filtering effect.
Backwash Status:
With the continuous accumulation of impurities in the packing layer, the internal head loss will continue to increase. When the loss of the inlet and outlet water pressure head reaches the set value, the system will automatically set the pressure difference device to switch to the backwashing state. When the backwashing of this unit is over, the hydraulic valve will change the water supply direction to realize backwashing one by one, which is more convenient Cleans away accumulated impurities.
When the system enters the backwashing state, change the on-off position of the three-way valve through PLC control (inlet is closed, the dirty port is opened), and the filtered water in other filter tanks flows into the filter tank to be backwashed. The packing layer of the filter unit that is backwashed due to the system pressure is washed up under the impact of the water flow, and the impurities are discharged through the sewage outlet of the three-way valve.

Product Parameters

Type	BTSL1200	BTSL1400	BTSL1600	BTSL1800	BTSL2000	BTSL2200
Tank Diameter(mm)	1200	1400	1600	1800	2000	2200
Inlet and Outlet Pipe Diameter(mm)	DN100	DN100	DN100	DN150	DN150	DN150
Tank Material	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel
Tank Anticorrosion	Electrostatic Spraying	Electrostatic Spraying	Paint Corrosion Protection	Paint Corrosion Protection	Paint Corrosion Protection	Paint Corrosion Protection
Single Filter Area(m2)	1.1	1.5	2	2.5	3	3.8
Filtration Speed(m/h)	20-35	20-35	20-35	20-30	20-30	20-30
Single Processing Capacity(m³/h)	20-40	30-50	40-60	50-75	60-90	70-100
Work Pressure(MPa)	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Backwash Strength L/(s.m2)	8-12	8-12	8-12	8-12	8-12	8-12
Single Tank Backwash Duration(s)	60	60	90	120	120	180
Backwash Interval(h)	4-8	4-8	4-8	4-8	4-8	4-8
Backwash Control Differential Pressure(MPa)	0.08	0.08	0.08	0.08	0.08	0.08
Filter Type	Sea Sand	Sea Sand	Sea Sand	Sea Sand	Sea Sand	Sea Sand
Filter Particle Size (min./max.mm)	0.6-1.2	0.6-1.2	0.6-1.2	2.0-4.0 0.6-1.2	2.0-4.0 0.6-1.2	2.0-4.0 0.6-1.2
Filter Thickness(mm)	800mm	800mm	800mm	200mm	200mm	200mm
Tank Net Weight(t)	0.4	0.5	0.6	1.5	2	2.3
Tank Running Weight(t)	3.5	4.5	5	13.5	16.8	21

Type	BTSL2400	BTSL2500	BTSL2600	BTSL2800	BTSL3000	BTSL3200
Tank Diameter(mm)	240	2500	2600	2800	3000	3200
Inlet and Outlet Pipe Diameter(mm)	DN200	DN200	DN200	DN200	DN250	DN250
Tank Material	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel
Tank Anticorrosion	Paint Corrosion Protection	Paint Corrosion Protection	Paint Corrosion Protection	Paint Corrosion Protection	Paint Corrosion Protection	Paint Corrosion Protection
Single Filter Area(m2)	4.5	5	5.3	6.1	7	8
Filtration Speed(m/h)	20-30	20-30	20-30	20-30	20-30	20-30
Single Processing Capacity(m³/h)	90-135	100-150	110-160	120-180	140-210	160-240
Work Pressure(MPa)	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Backwash Strength L/(s.m2)	8-12	8-12	8-12	8-12	8-12	8-12
Single Tank Backwash Duration(s)	200	300	300	300	500	600
Backwash Interval(h)	4-8	4-8	4-8	4-8	4-8	4-8
Backwash Control Differential Pressure(MPa)	0.08	0.08	0.08	0.08	0.08	0.08
Filter Type	Sea Sand	Sea Sand	Sea Sand	Sea Sand	Sea Sand	Sea Sand
Filter Particle Size (min./max.mm)	2.0-4.0 0.6-1.2	2.0-4.0 0.6-1.2	2.0-4.0 0.6-1.2	2.0-4.0 0.6-1.2	2.0-4.0 0.6-1.2	2.0-4.0 0.6-1.2
Filter Thickness(mm)	200mm 1000mm	200mm 1000mm	200mm 1000mm	200mm 1000mm	200mm 1000mm	200mm 1000mm
Tank Net Weight(t)	2.6	2.8	3	3.3	3.9	4.5
Tank Running Weight(t)	25	27	30	35	40	46

Applications
1. Industrial Water Filtration- There are certain system requirements for water quality. For example: filtering steel plant oxygen lance water, boiler, heat exchanger water supply, etc., can filter out impurities in the water and avoid pipe and nozzle blockage.
2. Industrial Circulating Water Filtration System.
3. Raw Water Treatment- It can filter surface rivers, lakes, seawater, reservoir water, well water and urban tap water as water sources for urban community water supply, and remove sand, suspended solids, algae and organic matter in the water.
4. Agricultural Irrigation- It is especially suitable for water sources with high flow rate and good impurity content, such as farmland water conservancy irrigation, park and golf course lawn irrigation, etc.
5. Food processing industrial water, paper industry, power plant industrial circulating water treatment, etc., pretreatment of industrial and medical pure water. Recycling of industrial process water, treatment of industrial wastewater.
6. Aquaculture, swimming and water parks etc.
