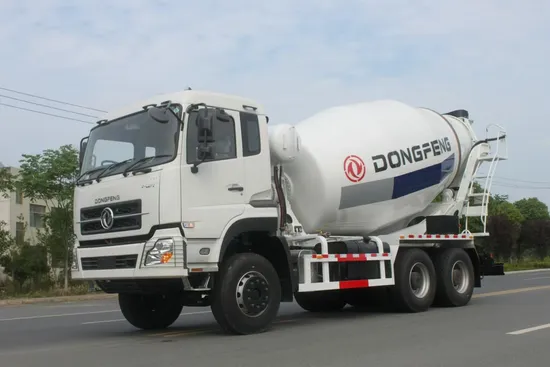

Heavy-Duty Dongfeng 6X4 Concrete Mixer Truck 340HP Weichai Diesel Engine

Product Description

Heavy-Duty Dongfeng 6X4 Concrete Mixer Truck 340HP Weichai Diesel Engine -------------------------------------------------------------------------------------------------------------- *Good condition by manufacturer direct sale* *100% quality guaranteed* Product Parameters
» The Main Specifications of The Concrete Mixer Truck

Truck		Concrete Mixer Truck
Dimension(Lx W xH)(unloaded)(mm)		8560X2496X3048
Approaching angle/Departure angle(°)		16/24
Overhang(front/rear) (mm)		1550/1860
wheelbase(mm)		3825+1350
Max speed(km/h)		90
Curb weight(kg)		10580
total Weight(kg)		25000
Engine (Steyr technology, made in China)	Model	WD615.69water-cooled,four strokes,6 cylinders in line with water cooling,directly injection
	Fuel type	Diesel
	Horse Power, max(kw/rpm)	336HP
	Emission	EURO4
Fuel tanker capacity(L)		400L
Transmission	Model	HW19710,10 Forward gears,2 Reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
Steering system	Model	8118
Front axle	HF9
Rear axle	HC16
Color	White, red,Yellow . (Optional)
Tyre	12.00R20
Electrical system	Battery	2X12V/165Ah
	Alternator	24V-1540kw
	Starter	7.5Kw/24V

Detailed Photos
» Factory Real Photos
Company Profile » ABOUT US
HUBEI HONGYU SPECIAL AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has 25 years in design ,product ,sales and service in special trucks such as water tank truck, fuel tank truck, sewage suction truck, refrigerated truck, van cargo truck, dump truck, truck mounted crane, aerial plafform truck, fire truck, wrecker truck, flatbed truck, road sweeper truck, garbage truck, anti collission buffer truck, truck trailer, truck tractor, pickup, Led truck, food truck, motorhome, iso tank container, mobile fuel staiton, etc. Main info as below:
(1) More than 500 workers, large and advanced production;
(2) 80 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 70,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.
FAQ » FAQ
Why choose us?
Experience
25 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
With solid technology, advanced equipments;Reliant quality and flexible operation models; strict quality control system and passed the ISO9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as Dongfeng,Foton,Sinotruck HOWO,Shacman,I-VECO,FAW,HINO,CAMC,North-Benz,ect.
Production supply capacity
Company scale
More than 800 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
Any more information regarding to the Conrete Mixer truck, please do not hesitate to contact with us!
