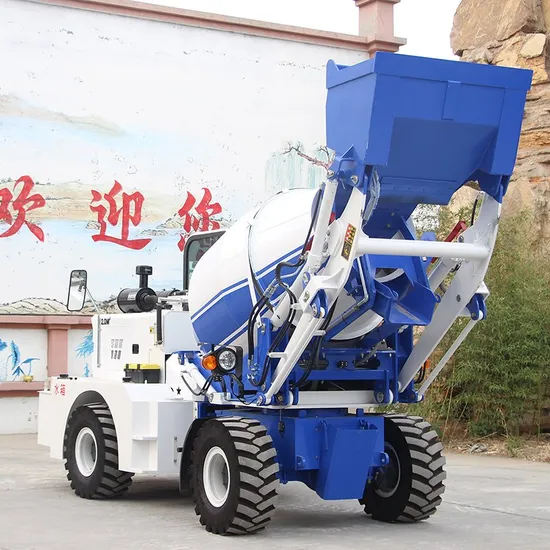

2 Cubic Meter Concrete Truck Mixer with Camera
| US$16,560.00-16,990.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
2.0cbm
Type
Concrete Mixing Truck
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Spiral Type
Productivity
16cbm/H
Feeding Height
2500mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Condition
New
Color
White and Blue
Actual Mixing Capacity
2.0cbm
Rotary Drum Capacity
2.3cbm
Slump of Concrete
70-260mm
Tank Capacity
540L
Reducer Ratio
01:10
Rated Power
76kw
Max Torque
255/1500-1800 380/1500-1800 N.M/R/Min
Max Running Speed
24km/H
Min Steering Radius
4250mm
Climbing Capacity
26
Tire
23.5/70-16
Driving Way
4*4
Weight
4880kg
Maximum Load Capacity
3000kg
Whole Machinery Weight
6480kg
Transport Package
Nude Package
Specification
6700*2300*2900
Trademark
HW
Origin
China
HS Code
8705400000
Production Capacity
300sets/Month
Product Description
HWJB200 Self Loading Concrete Mixer Truck Production CharacteristicItaly Leading Design, Automatic Feeding Mixing System
Simple And Convenient Operation
High-Efficiency Output, Save Time And Labor Save Cost
The Perfect Combination Of Mixing Truck And Loading Car
Self Loading Concrete Mixer Advantage:
The Independent water pump is convenient to work
Independent can body motor heat dissipation, extended continuous working time
Increase the water tank to meet the needs of the water shortage environment
The 360-degree camera has a wider working field of vision
The forward tilting unloading function makes the unloading more thorough and faster
Technical Parameter
| Specifications | Unit | Parameter |
| Model | / | HWJB200 |
| Actual stirring capacity | m³ | 2.0 |
| Rotary drum capacity | m³ | 2.3 |
| Degree of bias | ° | 16 |
| Rotational speed | r/min | 10-20 |
| Direction of rotation | | Feed:clockwise output:counter clockwise |
| Mixing drum blade | | Two sets of spiral blades and four sets of auxiliary blades |
| Slump of concrete | mm | 70-260 |
| Hydraulic Power Transmission System | ||
| Pump model | | CBGV-4025 |
| Hydraulic motor model | | BMSS-250 |
| Reducer ratio | | 01:10 |
| Water Supply | ||
| Tank capacity/ water supply form | L | 540/ automatic timing water supply mechanism with automatic timing |
| The main performance parameters of the chassis and the main performance parameters of the engine | ||
| Engine type / displacement | L | CF4B68G-Z-13B2/CF4C100T-Z-13B2 |
| model | | Straight injection type four-stroke water-cooled supercharged diesel engine |
| Rated power | kw/r/min | 76KW/2400 |
| Max torque | N.m/r/min | 255/1500-1800 380/1500-1800 |
| Max running speed | km/h | 24 |
| Min steering radius | mm | 4250 |
| Climbing capacity | % | 26 |
| Tire | | 23.5/70-16 |
| Driving way | | 4×4 |
| Weight | kg | 4880 |
| Maximum load capacity | kg | 3000 |
| Whole machinery weight | kg | 6480 |
| Overall size(L*W*H) | mm | 6700*2300*2900 |
| The wheelbase | mm | 2250 |
| Bucket capacity | m³ | 0.45/0.55 |
Self Loading concrete mixer truck 2.0cbm
2CBM mixer drum capacity self loading concrete mixer truck with loading bucket
Product Details
Mixer truck adapted air brake, more safety.
Automatic feeding concrete mixer truck Product details
Construction SiteCompany Profile
Certifications
