Laser Control Board System Cypcut Fscut2000c 3000s Fiber Laser Cutting Machine Controller

Product Description

Product Description
FSCUT1000

Model	FSCUT1000
Control card	BMC1603
I/O terminal board	BCL4562
Motor control signal	X/Y1/Y2 axes pulse output, maximum frequency 3MHz Z axis analog output, -10 ~+10V X/Y/Z axes access encoder feedback, maximum sampling frequency 10MHz
Dedicated inputs	6 limit inputs: X/Y1/Z axes +/- limit
Common inputs	6 inputs: low-level active, supports NO and NC;
Software	CypOne Laser Cutting Control Software
Interface type	32-bit PCI bus, 132MB/S
Power supply	24V DC/2A
Work environment	Temperature: 0-55ºC Humidity: 5%-95%(no condensation)
Dedicated outputs	2 DA outputs: 0~10V,50mA 1 PWM output: 5V/24V for option, precision of 50KHz (0.1%)
Common outputs	8 outputs: relay output, 30V DC/5A

FSCUT2000S
FSCUT2000S medium power laser cutting system is a full-solution open-loop control system specially designed for sheet metal fabricaton industry, with features of easy to install and adjust, excellent performance and fully integrated solutions, it is the upgrade version from FSCUT2000C.

Model	FSCUT2000S
Control card	BMC2104
I/O terminal board	BCL3766
Motor control signal	X/Y1/Y2/W axes pulse output, maximum frequency 3MHz X/Y1/Y2 axes port receive encoder feedback, highest sampling frequency 10MHz W axis port can be assigned as rotary axis or autofocus unit
Dedicated inputs	8 limit inputs: +/-limit for X/Y1/Y2/W axes 4 origin inputs: X / Y1 / Y2 / W axes origin signal inputs:
Common inputs	15 inputs: low-level active by default option, supports NO and NC mode. IN3~IN15 can switch between active low and active high
Software	CypCut Laser Cutting Control Software
Interface type	PCIE bus, X16, 250MB/S
Power supply	24V DC/2A
Work environment	Temperature: 0-55ºC Humidity: 5%-95% (no condensation)
Dedicated outputs	2 DA outputs: 0~10V,50mA 1 PWM output: 5V/24V for option, precision of 50KHz (0.1%)
Common outputs	8 relay output, load capacity 250V AC/5A, 30V DC/5A 12 thyristor output, load capacity DC 24V/500mA

FSCUT3000S
FSCUT3000S is an open loop laser cutting control system for tube cutting control, support standard tube(retangle, circle, oval, ellipse and obround etc.) , free form , and steel channels(T/U/H/L shape) production of high precision and efficiency.

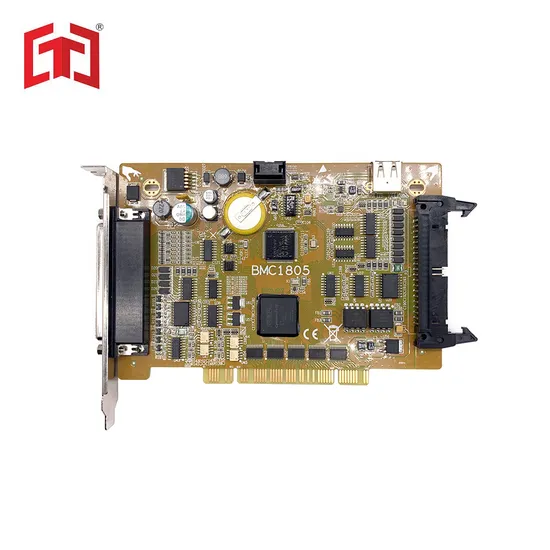

Model FSCUT3000S Software TubePro tube cutting software/ CypCut sheet cutting software Control card BMC1805
Interface type 32-bit PCI bus, 132MB/S I/O terminal board BCL3766 Power supply 24V DC/2A Motor control X/Y1/Y2/W axis pulse output, heighest frequency 3MHz
X/Y1/Y2 axis access encoder feedback, highest sampling frequency 10MHz
W axis port can be assigned to rotary axis or autofocus unit
Work environment Temperature: 0-55 ºC
5%-95% (no condensation)
Dedicated input 8 limit inputs:Positive and negative limit for X/Y1/Y2/W axis
4 origin inputs:X / Y1 / Y2 / W axis origin Dedicated output 2 DA: 0~10V,50mA
1 PWM with 5V/24V for option, precision of 5KHz (0.1%)
Common input 15 inputs: 12 are low-level active, 3 inputs can jump-wire switch to high- level active. Common output 8 relay output, load capacity 250V AC/5A, 30V DC/5A
12 thyristor output, DC 24V/500mA
Benefits
Cutting technique
Support offset tube center error in production to improve through holes cutting precision.
Support steel channels cutting.
Suppport seperate technique for corner cutting.
Support auto loading/unloading process, cycle production and automatic tube feeding.
Support all functions of FSCUT2000 system.
Control performance Open-loop control system, Friendess 5th generation motion control algorithms.
Trajectory accuracy 0.02mm, positioning accuracy 0.001mm, repeatability 0.003mm.
Access encoder feedback in real time, to compare command and machine toolpath.
Detailed Photos

Packing
