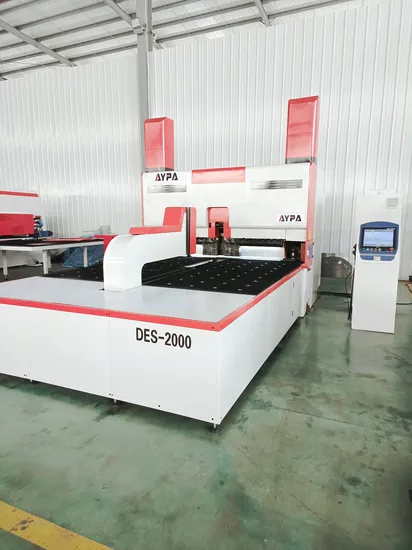

Full Electric Servo Automatic CNC Bender for Galvanized Sheet Carbon Steel Aluminum Plate Panel
| US$45,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DES-2000
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Driven Mode
Full Electro Servo
Bending Length
2000mm
Bending Height
170-300mm
Min. Bending Thickness
0.15 mm
Max Bending Thickness
2.5 mm
Loading Material
Fully Automatic by Robot Arm
Customization Level
Full
ODM
Available
Bending Angle
0-360°
Bending Material
All Metal Sheet
Feeding Method
Optional: Pressed or Sucked
CNC System
Taiwan Syntec
Servo Motor
Synmot
Gear Reducer
German-Rouist
Guide
German-Rouist
Transport Package
Wooden Case, Foam and Plastic Film
Specification
5100* 2700* 2800mm
Trademark
AYPA
Origin
China
HS Code
8462240000
Production Capacity
300sets/Year
Product Description
Full Electric Servo Automatic CNC Bender for Galvanized Sheet Carbon Steel Aluminum Plate PanelProduct Description
AYPA is proud to introduce the intelligent flexible panel bender.
√ Tabular programming is visual and handled easily.
√ Users can monitor the machine operation and workpiece output by cellphone APP any time.
√ AYPA automatic bender can bend complex shapes without molding and needn't replace tools.
√ Fully closed loop controlling system supports 25 axes linkage.
√ AYPA bender can match with robot arm in automatic flow line.
√ It's widely used to produce cabinet, fire door, kitchenware, refrigeration, and aluminum walls.
Bending Workpiece Display
Detailed Photos
* Q235 steel plate
* High temperature annealing process
* 42CrMo forging material
* Customized knives available
Product Parameters
| Model | DES-1200 | DES-1400 | DES-2000 | DES-2500 | DES-3000 | |
| Max. Continuous Bending Speed | ≤0.2sec/each bending | ≤0.2sec/each bending | ≤0.3sec/each bending | ≤0.5sec/each bending | ≤0.6sec/each bending | |
| Max. Bending Length | 1000mm | 1400mm | 2000mm | 2500mm | 3200mm | |
| Max. Bending Height | 170/210mm | 170/300 mm | 170/300 mm | 170/300 mm | 170/210 mm | |
| Max. Bending Thickness | stainless steel | 1.0mm | 1.2mm | 1.2mm | 1.2mm | 1.2mm |
| Carbon steel | 1.2mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm | |
| aluminum | 1.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm | |
| Min. Bending Thickness | 0.15mm | 0.15mm | 0.15mm | 0.15mm | 0.15mm | |
| Bending Degree | 0-360° | 0-360° | 0-360° | 0-360° | 0-360° | |
| Accuracy of Bending Angle | ±1° | ±1° | ±1° | ±1° | ±1° | |
| Accuracy of Feeding Length | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | |
| Feeding Method | Sucked/ Pressed | Sucked/ Pressed | Pressed | Pressed | Pressed | |
| Feeding Table | Brush+ Universal ball | Brush+ Universal ball | Brush+ Universal ball | Brush+ Universal ball | Brush+ Universal ball | |
| Min. One-step Forming Size on All Four Sides | 200*280mm | 200*280mm | 200*280mm | 200*280mm | 200*280mm | |
| Min. One-step Forming Size on Single Side | 150mm | 150mm | 150mm | 150mm | 150mm | |
| Noise Level | ≈40db | ≈40db | ≈40db | ≈40db | ≈40db | |
| Main Power | 380V | 380V | 380V | 380V | 380V | |
| Outline Dimension (mm) | 3100* 1500* 2800 | 4500* 2000* 2800 | 5100* 2700* 2800 | 5700* 3100* 2800 | 7000* 3800* 2800 | |
| Approx. Weight (Tons) | 10 | 11 | 18 | 19 | 21 | |
Packaging & Shipping
Company Profile
FAQ
1. How about the delivery time?
Generally it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and product photos.
